Controls and indicators

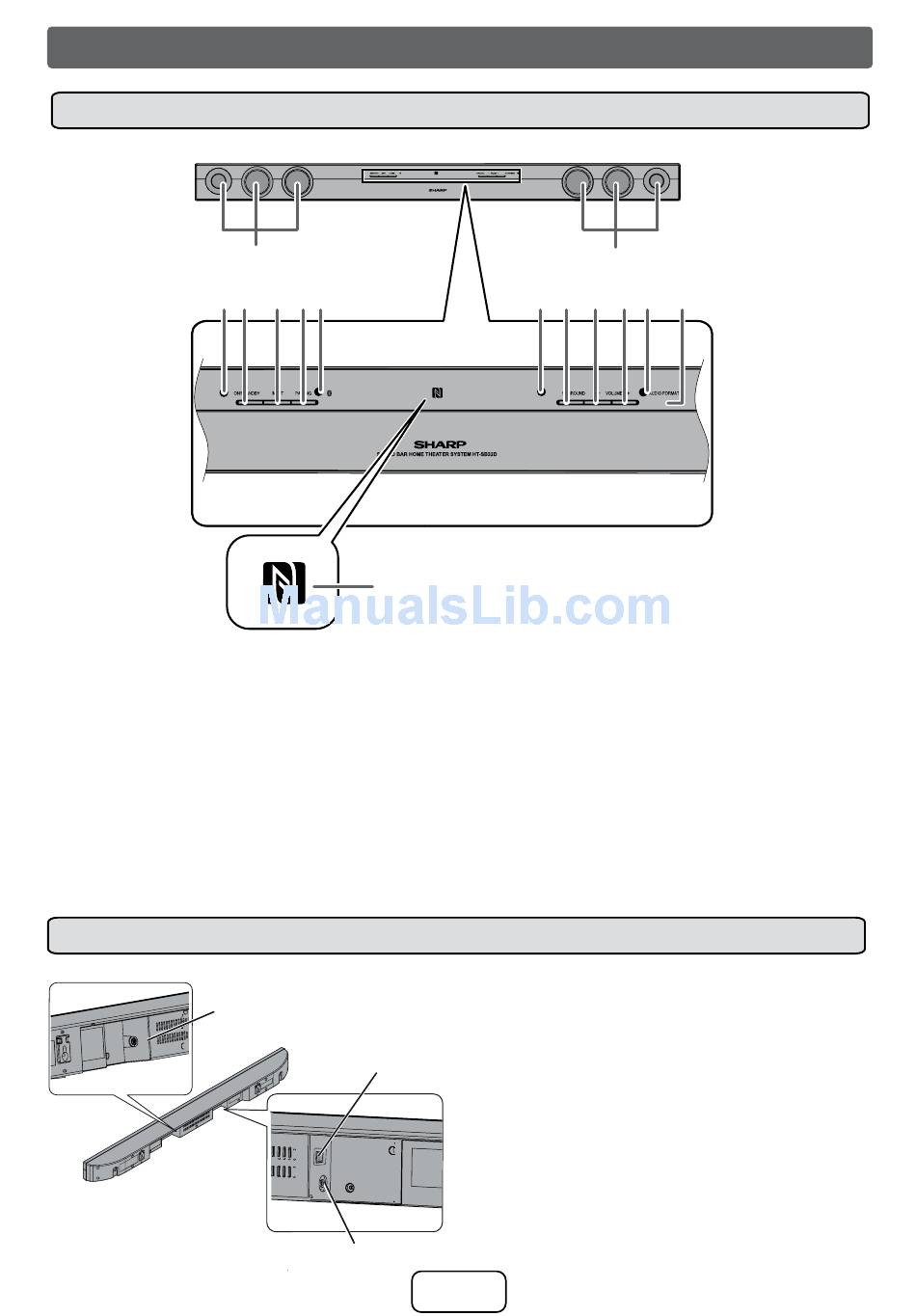

■ Front Panel

1. Left Channel Speakers
2. Right Channel Speakers
3. On/Standby/Input Indicator
4. On/Standby Button
5. Input Button
6. Pairing Button
7. Pairing Indicator
8. Surround Indicator
9. Surround Button

■ Rear Panel

1
1
3 4 5 6 7
14
2
3
SOUND BAR HOME THEATER SYSTEM HT-SB32D
8 9 1011 12 13
10. Volume Down Button
11. Volume Up Button
12. Audio Format Indicator
13. Remote Sensor
14. NFC detection area
1. DC In Jack
2. Optical In Jack
3. Audio In Jack
