Summary of Contents for Chauvet LFS-75DMX

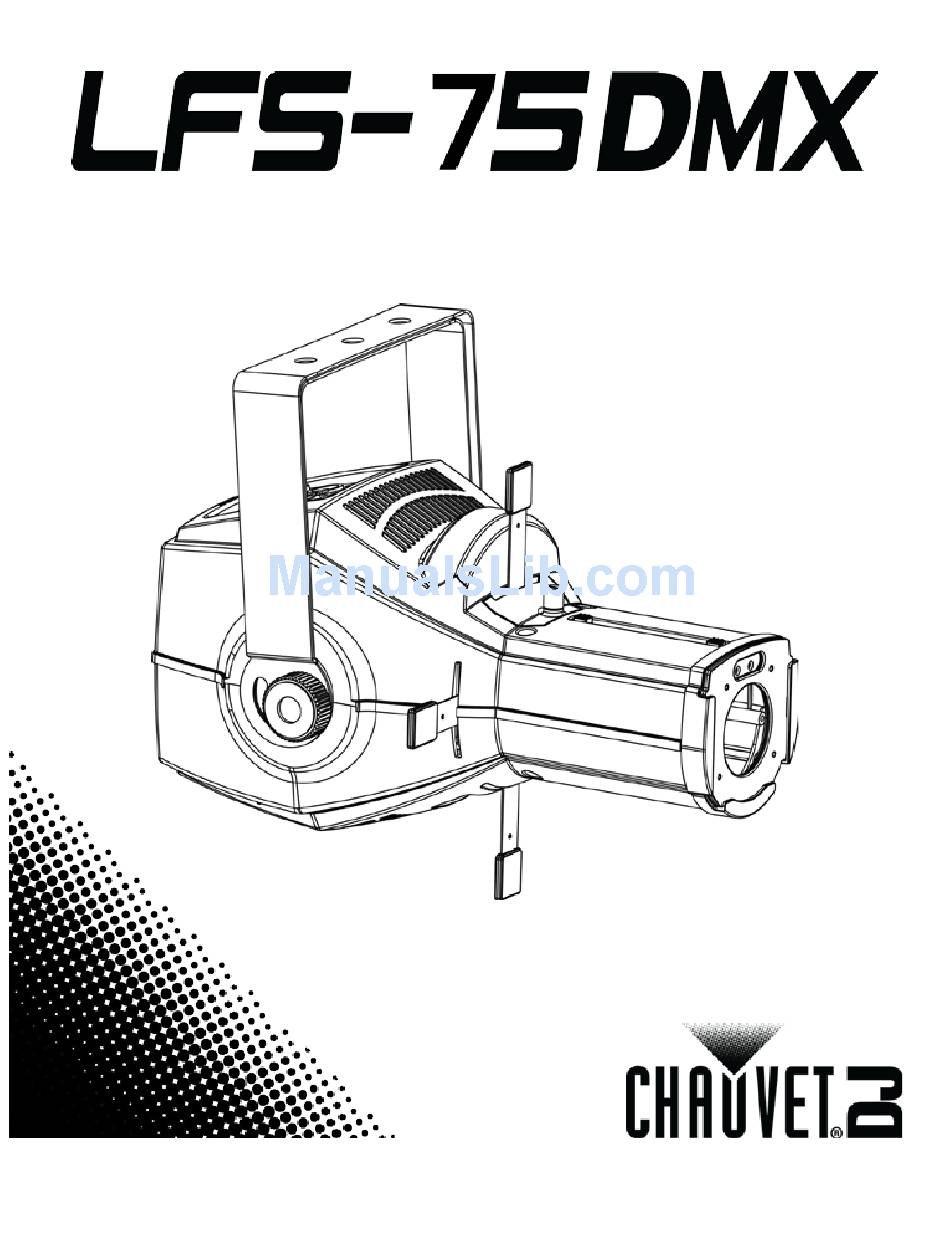

- Page 1 User Manual...
-
Page 2: Table Of Contents
Configuration (DMX) ........................11 Starting Address ............................11 DMX Channel Modes, Assignments, and Values ................12 4-Channel ..............................12 LFS-75DMX Color Wheel ....................... 12 Configuration (Standalone) ......................13 Manual Mode ............................13 Display Orientation ..........................13 Temperature Display ..........................13 Reset Software ............................ -
Page 3: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. -
Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to another user, be sure to give this document to the next owner. Page 4 of 18 LFS-75DMX User Manual Rev. 3... -
Page 5: Introduction
2. I NTRODUCTION Overview Gobo Door Knob Framing Shutter (x4) Gobo Door DMX In/Out 5-pin Power DMX In/Out Power In 3-pin Fuse Top Panel View Holder LFS-75DMX User Manual Rev. 3 Page 5 of 18... -
Page 6: Overview (Cont.)
Overview (cont.) Control Panel and Buttons Bottom Panel View Page 6 of 18 LFS-75DMX User Manual Rev. 3... -
Page 7: Dimensions
Dimensions 15.1 in 385 mm 11.1 in 283 mm 13.6 in 345 mm LFS-75DMX User Manual Rev. 3 Page 7 of 18... -
Page 8: Setup
3. S ETUP AC Power The LFS-75DMX has an internal auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or... -
Page 9: Power Linking
Diagram Additional Products You can power link up to 8 LFS-75DMX units on 120 VAC or up to 14 LFS-75DMX units on 230 VAC. The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local Chauvet distributor as power linking connectors and requirements may differ in your country or region. -
Page 10: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The LFS-75DMX may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 11: Operation
DMX mode uses. If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The LFS-75DMX uses up to 4 DMX channels in its 4-channel DMX mode, which defines the highest configurable address to 509. -
Page 12: Dmx Channel Modes, Assignments, And Values
128 ó 191 Rainbow effect with increasing speed 192 ó 255 Reverse rainbow effect with increasing speed LFS-75DMX Color Wheel Orange Kelly Dark Blue Light Blue White Section 5 Yellow Green Pink Page 12 of 18 LFS-75DMX User Manual Rev. 3... -
Page 13: Configuration (Standalone)
To reset the software in the LFS-75DMX, do the following: Press <MODE/ESC> repeatedly until rESt shows on the display. Press <ENTER>. Load Factory To load the factory default settings in the LFS-75DMX, follow the instructions below: Press <MODE/ESC> and until LoAd shows on the display. Defaults Press <ENTER>. -
Page 14: Included Gobos
Included Gobos Changing To change the gobos in the LFS-75DMX, do the following: Disconnect the product from power. Gobos Place the product on a flat, level surface. Loosen the gobo door thumbscrew and pull off the gobo door. Pull up the gobo holder out of the product. -
Page 15: Technical Information
Gently polish the external optics and glass/transparent surfaces until they are free of haze and lint. Always dry the external optics and glass/transparent surfaces carefully after cleaning them. Do not spin the cooling fan using compressed air because you could damage it. LFS-75DMX User Manual Rev. 3 Page 15 of 18... -
Page 16: Technical Specifications
Maximum External Temp. Cooling System 104 °F (40 °C) Fan-cooled I/O Connectors Connector Type Channel Range 3- and 5-pin XLR Sockets Product Name Item Code UPC Number Ordering LFS-75DMX 08120673 781462210212 Page 16 of 18 LFS-75DMX User Manual Rev. 3... -
Page 17: Returns
If you are located in Mexico, contact Chauvet Mexico. · If you are located in Benelux, contact Chauvet Europe BVBA. · If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux. -
Page 18: Contact Us
(954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 World Wide Web Toll free: (800) 762-1084 www.chauvetlighting.com EUROPE General Information - Chauvet Europe BVBA Technical Support Address: Stokstraat 18 Email: Eutech@chauvetlighting.eu 9770 Kruishoutem Belgium World Wide Web Voice: +32 9 388 93 97 www.chauvetlighting.eu...
