Summary of Contents for VocoPro SmartTVOke

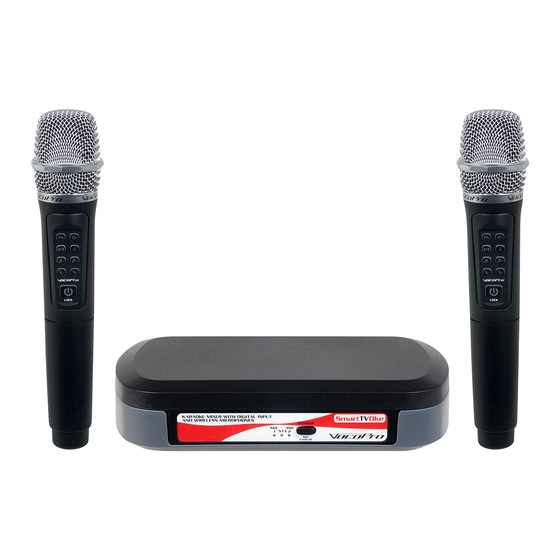

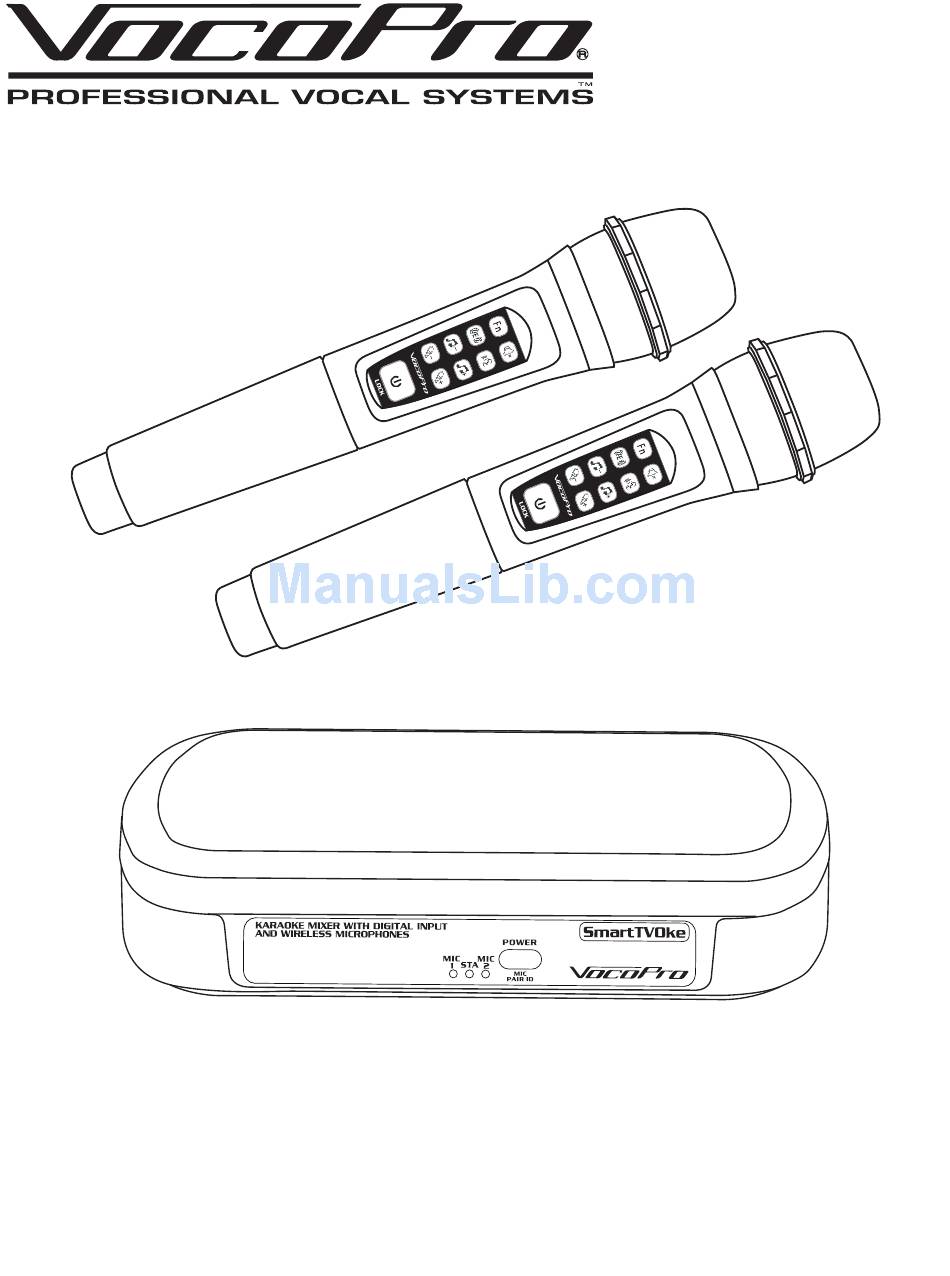

- Page 1 SmartTVOke Karaoke Mixer with Digital Input & Wireless Microphones ’...
-
Page 3: Table Of Contents
SmartTVOke Layout . . . . . . . . . . . . . . . . . . . -
Page 4: Safety Instructions
Safety Instructions 8. Ventilation - The appliance should be situated so its CAUTION location does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the RISK OF SHOCK ventilation slots. -
Page 5: Fcc Information
1. To ensure the finest performance, please read this requirements. Modifications not expressly approved by manual carefully. Keep it in a safe place for future Vocopro may void your authority, granted by the FCC, to reference. use this product. 2. Install your unit in a cool, dry, clean place - away from 2. -
Page 6: Welcome
And while you're there don't forget to check out our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, the singer’s ultimate choice. FOR YOUR RECORDS Please record the model number and serial number below, for easy reference, in case of loss or theft. -
Page 7: Listening For A Lifetime
Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. -
Page 8: Getting Started
Getting Started WHAT’S IN THE BOX • SmartTVOke • Wireless Microphones (2) • USB Power Cord with Adapter • 1/8”-to-RCA Cable • 1/8”-to-1/8” Stereo Cable • Optical Cable... -
Page 9: Getting Connected
Getting Connected PLUGGING IN THE INPUT SIGNAL FROM A SMART TV • Connect the optical cable from the Optical Out on the back of the TV into the Optical IN on the SmartTVOke . DIGITAL AUDIO OUT (OPTICAL) FROM A STEREO SOURCE • Connect either the 1/8”-to-1/8”... - Page 10 Getting Connected SENDING THE OUTPUT SIGNAL TO AN AMPLIFIER • Connect the 1/8”-to-RCA or 1/8”-to-1/8” cable from the AUDIO MIXED OUT jack to an available audio input on the amplifier . (Amp Not Included) TO A POWERED SPEAKER • Connect the 1/8”-to-RCA or 1/8”-to-1/8”...
-
Page 11: Smarttvoke Layout
4. Microphone Out - Provides microphone output only . 5. Optical Input - Accepts digital audio from music sources (PCM only) . • The SmartTVOke is not compatible with Dolby audio signals . 6. Audio Mixed Out - Provides both microphone and music output . -
Page 12: Microphone Button Layout
Microphone Button Layout 1. FN - Toggles between Left-Mono, Right-Mono, and Stereo . 2. Mute - Mutes ALL audio output, both Mic and music . 3. Mic EQ - Toggles through Mic EQ presets . - Low-End (accentuates Bass frequencies) - Middle (accentuates Middle frequencies) - High-End (accentuates High frequencies) 4. -
Page 13: Pairing The Microphones
Pairing the Microphones If the Microphones experience signal loss or drop outs, the microphones should be resynced to the receiver . In doing so, the receiver will automatically change the operational frequency of each mic . FOLLOW THE STEPS BELOW TO RESYNC THE MICROPHONES WITH A NEW FREQUENCY CHANNEL. 1 . -
Page 14: Commonly Asked Questions/Troubleshooting
2. Why do I hear a strange growling & buzzing noise through the Optical Input? • The strange buzzing noise is what happens when a Dolby audio signal is fed into the SmartTVOke . The audio compression used by Dolby audio signals is incompatible with the SmartTVOke . - Page 15 Notes...
- Page 16 SmartTVOke Owner’s Manual © VocoPro 2015 v1 .0 .0813 www .vocopro .com...
