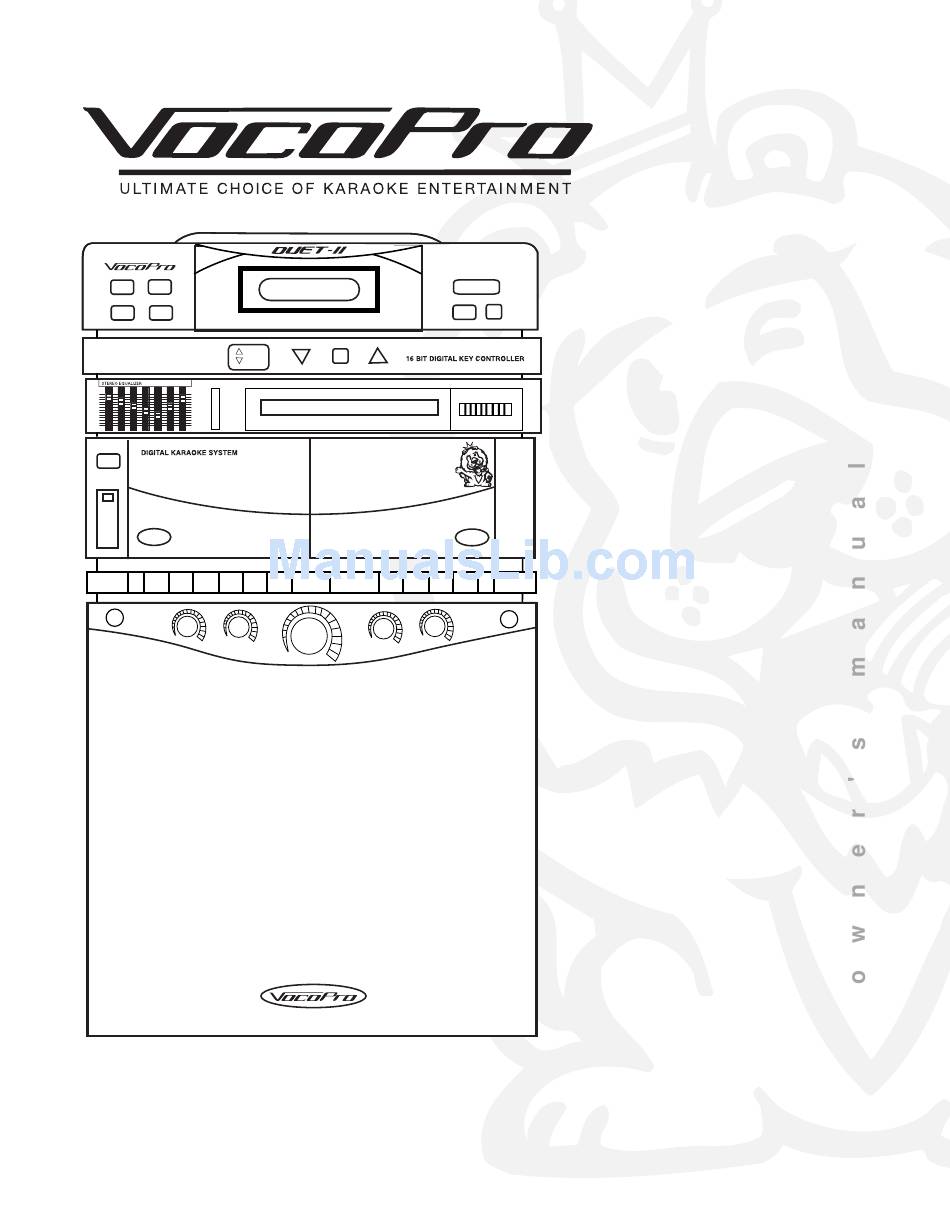

- Page 1 POWER D U E T - I I Digital Key Control CD/CDG Dual Cassette Karaoke System...
-
Page 2: Table Of Contents
Cassette Deck Operations ........ -
Page 3: Cautions And Warnings
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger. - Page 4 CAUTION: Read this before operating your unit The apparatus is not disconnected from the AC power source so long as it is connected to the wall outlet, even if the apparatus itself is turned off. To fully insure that the apparatus is indeed fully void if residual power, leave unit disconnected from the AC outlet for at least fifteen seconds.
-
Page 5: Welcome
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit. -
Page 6: Listening For A Lifetime
Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. -
Page 7: Before Getting Started
Before Getting Started: It is very important to read the following instructions prior to starting any installation procedures. Doing so will ensure a correct installation and may save you some time as well. Protect Against Power Surges • Connect all external components before you plug any of their power cords into the wall outlet. -
Page 8: Features And Specifications
DUET-II Features • 40W + 40W Maximum Power Output • Top Loading Digital Shock Resistant CD/CDG Player • Dual Cassette Decks to Play and Record Live Performance Mixes from CD or Cassette • AM/FM Stereo Tuner • 12-Step Digital Key Controller (half-steps) •... -
Page 9: Front Panel Descriptions
Front Panel Descriptions 1. POWER - Press to turn the system ON, press again and release to turn the system OFF. 2. CASSETTE CONTROLS. RECORD - Press to RECORD. Refer to "Recording Cassettes". Play – Press to PLAY tape. Refer to "Playing Cassettes". -
Page 10: Front Panel Descriptions
Front Panel Descriptions 14. STOP – To stop playing the CD, press the STOP button once. The LCD will display total number of tracks and playing time of the CD 15. F.F.___- To advance the CD to the beginning of the next track, press and release this button. -
Page 11: Rear/Top Panel Descriptions
Rear / Top Panel Descriptions 21. OPEN/CLOSE – Press the OPEN/CLOSE point to open the CD compartment. Close CD compartment by pressing this button again. 22. FM ANT TERMINAL – Connect the FM ANTENNA wire for optimal reception. 23. VIDEO OUTPUT – Connect jack to VIDEO IN of TV (See Figure 1). -
Page 12: Cd Player Operations
CD Player Operations NOTES: • Do not touch the disc tray while player is operating. • Never place anything except a compact disc in the disc tray. Foreign objects can damage the unit. • Do not apply excessive force to the disc tray. •... -
Page 13: Getting Connected
Getting Connected Connecting Audio and Video to External Devices: (see figure below) 1. Connect yellow plug from the included A/V cable to the VIDEO OUTPUT jack on the back of your Duet-II karaoke system. 2. Connect the other yellow plug of the A/V cable to the VIDEO OUTPUT jack on your television. 3. -
Page 14: Audio Controls
Audio Controls Graphic EQ Settings After choosing the program source you want; adjust the GRAPHIC EQUALIZER controls as follows: 1. Adjust the VOLUME control for the desired listening level. 2. Set the GRAPHIC EQUALIZER controls to match the sound characteristics of your listening room. With each of the five controls of the GRAPHIC EQUALIZER, it is possible to control a narrow, distinct section of the audio band by up to +/-10dB. -
Page 15: Cassette Deck Operations
Cassette Deck Operation Follow the steps bellow for any tape deck operations: 1. Press the POWER switch ON. 2. Slide the FUNCTION SELECTOR to TAPE. 3. Press the STOP/EJECT button, the cassette door will open. 4. Put the cassette into the holder, open end down, and gently close the cassette door. -
Page 16: Cassette Tape/Deck Maintenance
Cassette Tape / Deck Maintenance Erase Protection Every cassette can be protected against accidental erasing of pre-recorded material. On the back of a cassette are two breakout tabs. These must be in place before the RECORD button will depress. If these tabs have been removed, such as on pre-recorded cassette you buy, the RECORD button will not depress. -
Page 17: Troubleshooting
Troubleshooting If your stereo system fails to operate, carefully read these instructions. Many problem situations are caused by improper use. Listed below are the most common ones. PROBLEMS Power switched on, but no sound and no light on the POWER LED. The POWER LED system is on but no sound Poor FM reception... - Page 18 Recommended VocoPro Gear VP-600X 2 Space 600W Professional Power Amplifier • 300W + 300W RMS • 600W + 600W Max • THD: 0.05% • Frequency Response: 20HZ-20KHZ Signal to Noise • 1/4" or XLR Inputs • Input Ratio: Less than 100DB •...
