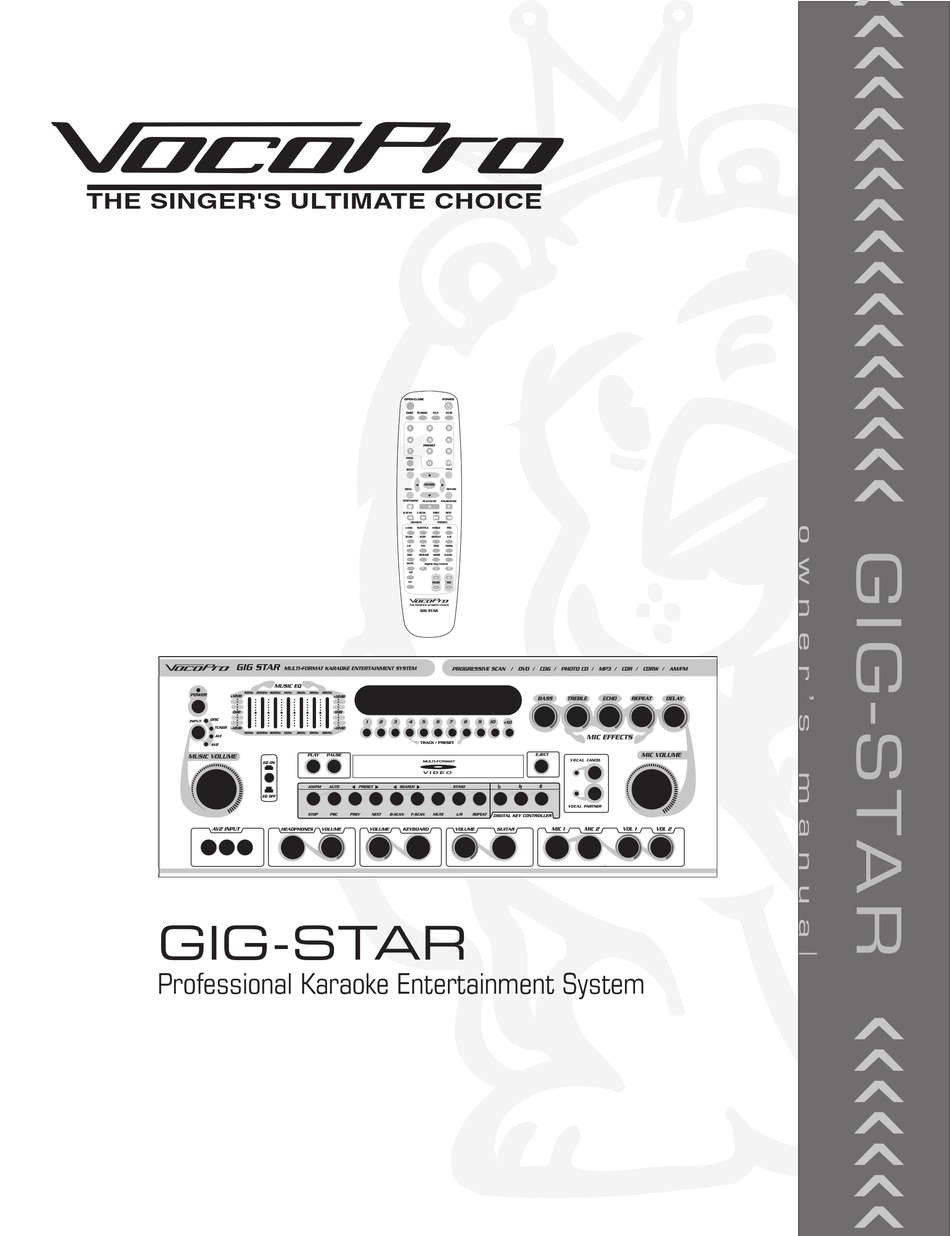

- Page 1 AUTO EQ OFF STOP AV2 INPUT HEADPHONES VOLUME FM/ANT AM/ANT INPUT/ENTRÉE INPUT ENTRÉE U/Pb GIG-STAR COAXIAL V/Pr S-VIDEO AVERTISSEMENT RISQUES DE CHOCS ÉLECTRIQUE NE PAS OUVRIR OUTPUT / SORTIE Professional Karaoke Entertainment System Model: GIG STAR Modèle: GIG STAR VOCOPRO VOCOPRO www.vocopro.com...
-
Page 2: Table Of Contents
Table Of Contents Safety instructions FCC information Welcome Listening for a lifetime Features & Specifications Getting Connected AV Inputs ... 1 Audio Outputs ... 1 Video Outputs ... 1 Microphone/Instrument Inputs ... 3 AC Device ... 3 Speaker Connection ... 4 Operations AM/FM Antennas Playback Operations ... -
Page 3: Safety Instructions
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger. -
Page 4: Fcc Information
UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. -
Page 5: Welcome
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit. -
Page 6: Listening For A Lifetime
Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. -
Page 7: Features & Specifications
Features & Specifications Features • Efficient 4-speaker cabinet design pumps 100W total power (peak to peak) • All-in-one system design, perfect for live gigs, portable use and DVD home entertainment • Multi-Format player with Direct Track Access Supports DVD, VCD, CD+G, MP3, Photo-CD, CD, CD-R, CD-RW Formats •... -
Page 8: Getting Connected
NE PAS OUVRIR OUTPUT / SORTIE STOP PREV NEXT B-SCAN Model: GIG STAR VOCOPRO www.vocopro.com Rated:AC~115, 60HZ, 70W NE PAS RETIRER LES VIS DU COUVERT. Class1 Laser Product This product complies with DHHS LES PIÈCES À L’INTÉRIEUR NE PEUVENT AV2 INPUT... -
Page 9: Microphone/Instrument Inputs
AVERTISSEMENT RISQUES DE CHOCS ÉLECTRIQUE NE PAS OUVRIR OUTPUT / SORTIE MENU Model: GIG STAR Modèle: GIG STAR VOCOPRO VOCOPRO www.vocopro.com www.vocopro.com Rated:AC~115, 60HZ, 70W Puissance: AC ~ 115V, 60Hz, 70W NE PAS RETIRER LES VIS DU COUVERT. Class1 Laser Product... -
Page 10: Speaker Connection
INPUT/ENTRÉE INPUT ENTRÉE AVERTISSEMENT RISQUES DE CHOCS ÉLECTRIQUE NE PAS OUVRIR Model: GIG STAR VOCOPRO www.vocopro.com Rated:AC~115, 60HZ, 70W NE PAS RETIRER LES VIS DU COUVERT. Class1 Laser Product This product complies with DHHS LES PIÈCES À L’INTÉRIEUR NE PEUVENT Rules21CFR Chapter1, Subchapter J ÊTRE CHANGER... -
Page 11: Operations
Operations Preparing a Disc for Playback Turn the power on by pressing the POWER button on the front panel. Press the OPEN/CLOSE button to open the disc tray. Insert a disc into the round recess in the tray with the label side up. Playing a Disc Press the PLAY/PAUSE button on the front panel or the remote control to begin disc playback. - Page 12 Operations cont. Displaying the Remaining Time While the disc is playing, pressing the OSD button on the remote control will display the disc’s playback status. Press the OSD button to cycle through Track Time remaining, Track time elapsed, Chapter Time Remaining and Chapter Time Elapsed. Programming a Playback Sequence •...
-
Page 13: Am/Fm Tuner Operations
AM/FM Tuner Operations See the AM/FM Tuner Controls and Functions section of this manual for locating the buttons. Turning on the Radio 1. Make sure that the GIG STAR’s power is on. 2. Either use the TUNER button on the remote or the INPUT SELECT button on the front panel to turn on the radio. Make sure the LED light next to TUNER is lit. -
Page 14: Am/Fm Tuner Operations
AM/FM Tuner Operations cont. Setting Preset Stations With the GIG STAR you can store up to 20 stations, in each band (AM and FM), as presets for instant access using the DIRECT TRACK AC- CESS number keys. External Amplifier To Audio In To set a preset for a station Hold down the desired number key for 3 seconds while the radio is set to that station. -
Page 15: Mp3 Functions And Operations
Mp3 Functions and Operations The GIG STAR can play back MP3’s files recorded to CD-ROM, CD-R or CD-RW discs. Notes on MP3 Discs An MP3 file stores audio data that has been compressed using the MPEG1 encoding scheme. Although PC terminology uses “files” and “folders”... -
Page 16: Mp3 Glossary
Mp3 Functions and Operations cont. MP3 Glossary File Extension - A 3-character string added to a file name under the Windows or DOS environment is called a “file extension”. A file extension is used mainly to identify types of files. The file extension for MP3 files is “.mp3”. ISO 9660 - ISO stands for the “International Organization for Standardization”. -
Page 17: Karaoke Functions And Operations
Karaoke Functions and Operations Notes on Karaoke Media There are various types of Karaoke media available for playback with the GIG STAR. You can perform Karaoke with Mp3, CD+G and VCD formats. The thing to remember is how each type differs as far as audio channels and video support. CD+G CD+G has been the most commonly used format of Karaoke media for the last 7 years. -
Page 18: Viewing A Vcd
Viewing CDs Viewing VCD’s There are two types of VCD’s: VCD 1/1.1 Format This format of VCD has no menu, track search and other video features available, as this format does not support PBC. The same as with audio CD’s, these discs will auto-play with full motion-picture audio and video, but with no support for menus and custom track selection. VCD 2.0 Format 2.0 formatted VCD’s are equipped with PBC support. -
Page 19: Viewing A Photo-Cd
Viewing CDs cont. Slow Playback To enter SLOW MODE during playback: 1. Press SLOW. Each time SLOW is pressed, the play speed changes NOTE: There is no audio during SLOW playback. To return to normal playback: 1. Press PLAY Viewing a Photo-CD 1. -
Page 20: Front Panel
NE PAS OUVRIR OUTPUT / SORTIE NOTE: When in STANDBY mode, the GIG STAR is not completely powered down and it still contains residual power. Model: GIG STAR VOCOPRO www.vocopro.com Rated:AC~115, 60HZ, 70W NE PAS RETIRER LES VIS DU COUVERT. - Page 21 S-VIDEO AVERTISSEMENT RISQUES DE CHOCS ÉLECTRIQUE NE PAS OUVRIR OUTPUT / SORTIE Model: GIG STAR Modèle: GIG STAR VOCOPRO VOCOPRO www.vocopro.com www.vocopro.com Rated:AC~115, 60HZ, 70W Puissance: AC ~ 115V, 60Hz, 70W NE PAS RETIRER LES VIS DU COUVERT. Materiel a rayonnem ent laser de Classe...
-
Page 22: Rear Panel
COAXIAL AVERTISSEMENT RISQUES DE CHOCS ÉLECTRIQUE NE PAS OUVRIR OUTPUT / SORTIE Model: GIG STAR VOCOPRO www.vocopro.com Rated:AC~115, 60HZ, 70W NE PAS RETIRER LES VIS DU COUVERT. Class1 Laser Product This product complies with DHHS LES PIÈCES À L’INTÉRIEUR NE PEUVENT Rules21CFR Chapter1, Subchapter J ÊTRE CHANGER... -
Page 23: Remote Control
Remote Control Descriptions 1. OPEN/CLOSE - Opens and closes the disc tray. NOTE: The GIG STAR input must be set to DISC mode. The OPEN/CLOSE button will not open the disc tray if the input is set to AV1, AV2 or TUNER. 2. -
Page 24: Remote Control
Remote Control Descriptions cont. 20. PBC - The PBC (play back control) button toggles the PBC mode ON/OFF. When in PBC mode, you can use direct access to tracks/scenes by using the NUMBER PAD on the REMOTE CONTROL. This feature is used primarily with VCD, MP3 and PHOTO-CD discs. -
Page 25: Am/Fm Tuner
AVERTISSEMENT RISQUES DE CHOCS ÉLECTRIQUE NE PAS OUVRIR OUTPUT / SORTIE Model: GIG STAR VOCOPRO www.vocopro.com Rated:AC~115, 60HZ, 70W NE PAS RETIRER LES VIS DU COUVERT. Class1 Laser Product The AM/FM Tuner can be controlled either on the front panel or via the remote control. -
Page 26: Setting The Preferences
Setting the Preferences SYSTEM SETUP MENU To access your preferences settings, use the SETUP button on your remote. Use the DIRECTION keys to navigate within this menu for the specific subdirectory desired and press ENTER. The icon file tabs at the top of the screen indicate which menu is highlighted. SYSTEM SETUP TV SYSTEM SCREENSAVER... -
Page 27: Audio Setup
Setting the Preferences cont. LANGUAGE SETUP Use this menu to set language preferences for each of these functions. Use the DIRECTION keys to make a selection and press ENTER to confirm your choice. LANGUAGE SETUP OSD LANGUAGE AUDIO LANGUAGE SUBTITLE LANGUAGE MENU LANGUAGE EXIT SETUP LANGUAGE SETUP SCREEN... -
Page 28: Video Setup
Setting the Preferences cont. VIDEO SETUP Use the DIRECTION keys to locate the virtual fader and raise/lower the fader bar for each of the following video preference settings: VIDEO SETUP BRIGHTNESS CONTRAST SATURATION VIDEO SETUP 1. BRIGHTNESS 2. CONTRAST 3. HUE 4. - Page 29 Setting the Preferences cont. DIGITAL SETUP DIGITAL SETUP OP MODE DYNAMIC RANGE DUAL MODE DIGITAL SETUP 1. OP MODE LINE OUT: Compresses the input signal and lowers the volume for use in quieter settings, for example at night time. RF REMOD: Increases the volume for regular usage. 2.
-
Page 30: Troubleshooting
Troubleshooting The input selector is not set to the channel No audio output. that the active source player is connected The speaker selector is not set correctly. Faulty connection within external components or external component failure. The power cord to the GIG STAR is not plugged in. - Page 31 Vocopro 2005 V 1.1 W WW.VOCOPRO.COM...
