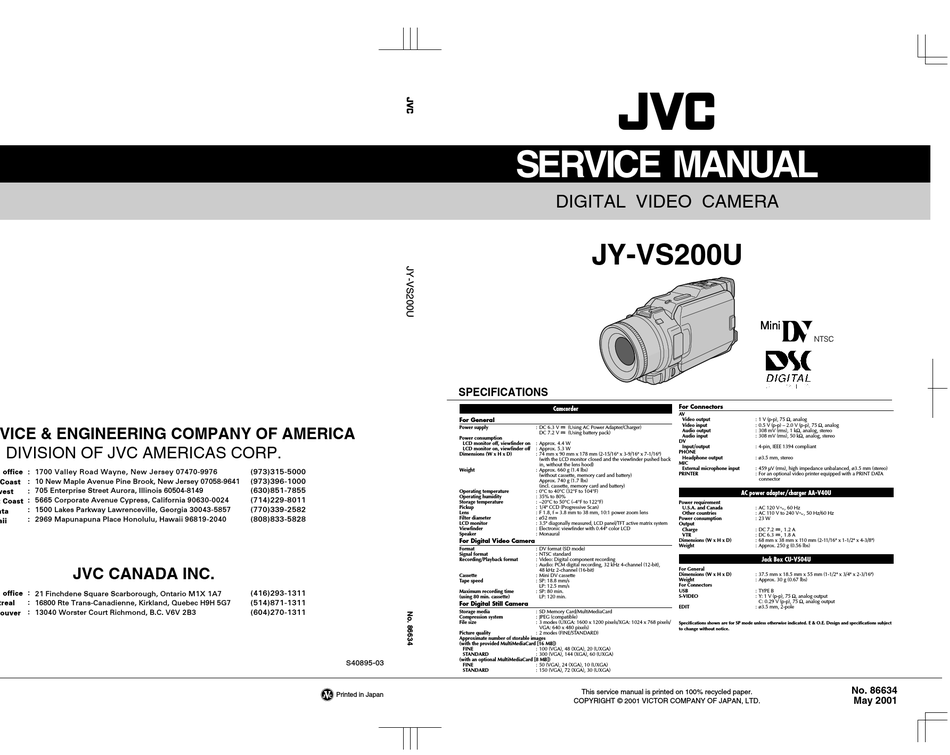

SERVICE MANUAL

DIGITAL VIDEO CAMERA

JY-VS200U
SPECIFICATIONS
Camcorder
For General
Power supply
: DC 6.3 V } (Using AC Power Adapter/Charger)
DC 7.2 V } (Using battery pack)
Power consumption
LCD monitor off, viewfinder on
: Approx. 4.4 W
LCD monitor on, viewfinder off
: Approx. 5.3 W
Dimensions (W x H x D)
: 74 mm x 90 mm x 178 mm (2-15/16" x 3-9/16" x 7-1/16")
(with the LCD monitor closed and the viewfinder pushed back
in, without the lens hood)
Weight
: Approx. 660 g (1.4 lbs)
(without cassette, memory card and battery)
Approx. 740 g (1.7 lbs)
(incl. cassette, memory card and battery)
Operating temperature
: 0°C to 40°C (32°F to 104°F)
Operating humidity
: 35% to 80%
Storage temperature
: –20°C to 50°C (–4°F to 122°F)
Pickup
: 1/4" CCD (Progressive Scan)
Lens
: F 1.8, f = 3.8 mm to 38 mm, 10:1 power zoom lens
Filter diameter
: ø52 mm
LCD monitor
: 3.5" diagonally measured, LCD panel/TFT active matrix system
Viewfinder
: Electronic viewfinder with 0.44" color LCD
Speaker
: Monaural
For Digital Video Camera
Format
: DV format (SD mode)
Signal format
: NTSC standard
Recording/Playback format
: Video: Digital component recording
: Audio: PCM digital recording, 32 kHz 4-channel (12-bit),
48 kHz 2-channel (16-bit)
Cassette
: Mini DV cassette
Tape speed
: SP: 18.8 mm/s
LP: 12.5 mm/s
Maximum recording time
: SP: 80 min.
(using 80 min. cassette)
LP: 120 min.
For Digital Still Camera
Storage media
: SD Memory Card/MultiMediaCard
Compression system
: JPEG (compatible)
File size
: 3 modes (UXGA: 1600 x 1200 pixels/XGA: 1024 x 768 pixels/
VGA: 640 x 480 pixels)
Picture quality
: 2 modes (FINE/STANDARD)
Approximate number of storable images
(with the provided MultiMediaCard [16 MB])
FINE
: 100 (VGA), 48 (XGA), 20 (UXGA)
STANDARD
: 300 (VGA), 144 (XGA), 60 (UXGA)
(with an optional MultiMediaCard [8 MB])
FINE
: 50 (VGA), 24 (XGA), 10 (UXGA)
STANDARD
: 150 (VGA), 72 (XGA), 30 (UXGA)
This service manual is printed on 100% recycled paper.
COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN, LTD.
For Connectors
AV
: 1 V (p-p), 75 Ω, analog
Video output
: 0.5 V (p-p) – 2.0 V (p-p), 75 Ω, analog
Video input
Audio output
: 308 mV (rms), 1 kΩ, analog, stereo
Audio input
: 308 mV (rms), 50 kΩ, analog, stereo
DV
Input/output
: 4-pin, IEEE 1394 compliant
PHONE
Headphone output
: ø3.5 mm, stereo
MIC
External microphone input
: 459 µV (rms), high impedance unbalanced, ø3.5 mm (stereo)
PRINTER
: For an optional video printer equipped with a PRINT DATA
connector
AC power adapter/charger AA-V40U
Power requirement
U.S.A. and Canada
: AC 120 V`, 60 Hz
Other countries
: AC 110 V to 240 V`, 50 Hz/60 Hz
Power consumption
: 23 W
Output
Charge
: DC 7.2 }, 1.2 A
VTR
: DC 6.3 }, 1.8 A
Dimensions (W x H x D)
: 68 mm x 38 mm x 110 mm (2-11/16" x 1-1/2" x 4-3/8")
Weight
: Approx. 250 g (0.56 lbs)
Jack Box CU-V504U
For General
Dimensions (W x H x D)
: 37.5 mm x 18.5 mm x 55 mm (1-1/2" x 3/4" x 2-3/16")
Weight
: Approx. 30 g (0.67 lbs)
For Connectors
USB
: TYPE B
: Y: 1 V (p-p), 75 Ω, analog output
S-VIDEO
C: 0.29 V (p-p), 75 Ω, analog output
EDIT
: ø3.5 mm, 2-pole
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject
to change without notice.
No. 86634
