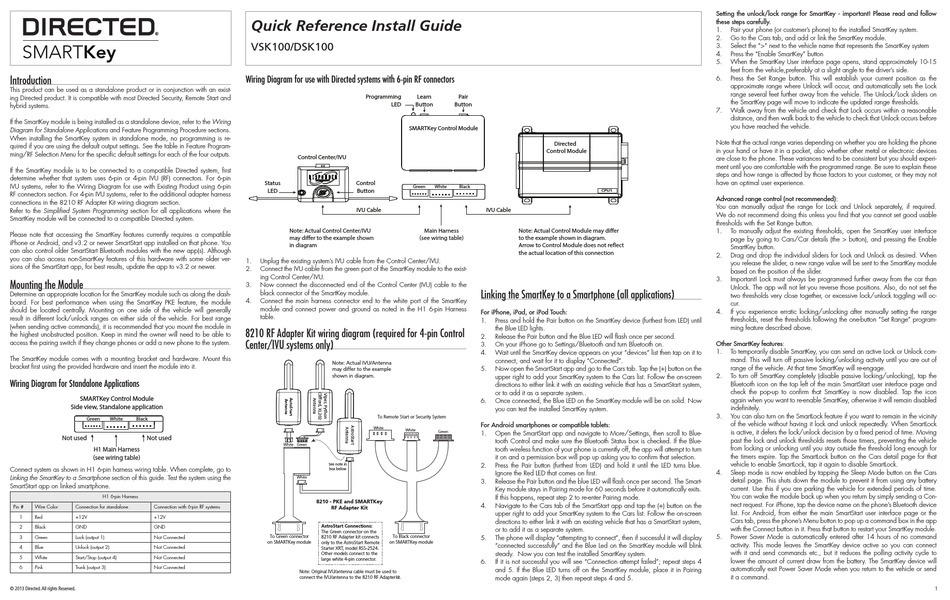

Viper SmartKey VSK100 Quick Reference Install Manual

SMARTKey
Introduction
This product can be used as a standalone product or in conjunction with an exist-
ing Directed product. It is compatible with most Directed Security, Remote Start and
hybrid systems.
If the SmartKey module is being installed as a standalone device, refer to the Wiring SMARTKey
Programming
Diagram for Standalone Applications and Feature Programming Procedure sections.
LED
When installing the SmartKey system in standalone mode, no programming is re-
quired if you are using the default output settings. See the table in Feature Program-
ming/RF Selection Menu for the specific default settings for each of the four outputs.
If the SmartKey module is to be connected to a compatible Directed system, first
determine whether that system uses 6-pin or 4-pin IVU (RF) connectors. For 6-pin
IVU systems, refer to the Wiring Diagram for use with Existing Product using 6-pin
Control Center/IVU
RF connectors section. For 4-pin IVU systems, refer to the additional adapter harness
connections in the 8210 RF Adapter Kit wiring diagram section.
Refer to the Simplified System Programming section for all applications where the
Status Control
SmartKey module will be connected to a compatible Directed system.
LED Button
Please note that accessing the SmartKey features currently requires a compatible
iPhone or Android, and v3.2 or newer SmartStart app installed on that phone. You
IVU Cable
can also control older SmartStart Bluetooth modules with the new app(s). Although
you can also access non-SmartKey features of this hardware with some older ver-
sions of the SmartStart app, for best results, update the app to v3.2 or newer. Note: Actual Control Center/IVU
may di er to the example shown
Mounting the Module
in diagram
Determine an appropriate location for the SmartKey module such as along the dash-
board. For best performance when using the SmartKey PKE feature, the module
should be located centrally. Mounting on one side of the vehicle will generally
result in different lock/unlock ranges on either side of the vehicle. For best range
(when sending active commands), it is recommended that you mount the module in
the highest unobstructed position. Keep in mind the owner will need to be able to
access the pairing switch if they change phones or add a new phone to the system.
The SmartKey module comes with a mounting bracket and hardware. Mount this
bracket first using the provided hardware and insert the module into it.
Wiring Diagram for Standalone Applications
SMARTKey Control Module
Side view, Standalone application
Green White Black
Not used Not used
H1 Main Harness
(see wiring table)
Connect system as shown in H1 6-pin harness wiring table. When complete, go to
Linking the SmartKey to a Smartphone section of this guide. Test the system using the
SmartStart app on linked smartphone.
H1 6-pin Harness
Pin # Wire Color Connection for standalone Connection with 6-pin RF systems
1 Red +12V +12V
2 Black GND GND
3 Green Lock (output 1) Not Connected
4 Blue Unlock (output 2) Not Connected
5 White Start/Stop (output 4) Not Connected
6 Pink Trunk (output 3) Not Connected
© 2013 Directed. All rights Reserved.
Quick Reference Install Guide
VSK100/DSK100
Wiring Diagram for use with Directed systems with 6-pin RF connectors
Programming
Learn Pair
Button Button
SMARTKey Control Module Control Center/IVU
Directed
Control Module
Status Control
LED Button
IVU Cable
Green White Black
Note: Actual Control Center/IVU
may di er to the example shown
IVU Cable
in diagram
1. Unplug the existing system's IVU cable from the Control Center/IVU.
Main Harness Note: Actual Control Module may di er
2. Connect the IVU cable from the green port of the SmartKey module to the exist-
(see wiring table) to the example shown in diagram.
ing Control Center/IVU.
Arrow to Control Module does not re ect
3. Now connect the disconnected end of the Control Center (IVU) cable to the
the actual location of this connection
black connector of the SmartKey module.
4. Connect the main harness connector end to the white port of the SmartKey
module and connect power and ground as noted in the H1 6-pin Harness
table.
8210 RF Adapter Kit wiring diagram (required for 4-pin Control
Center/IVU systems only)
SMARTKey Control Module
Side view, Standalone application
Note: Actual IVU/Antenna
may differ to the example
Green White Black
shown in diagram.
Not used Not used
H1 Main Harness
(see wiring table)
White Green
See note in
box below
White
8210 - PKE and SMARTKey
RF Adapter Kit
AstroStart Connections:
The Green connector on the
To Green connector
8210 RF Adapter kit connects
on SMARTKey module
only to the AstroStart Remote
Starter XRT, model RSS-2524.
Other models connect to the
large white 4-pin connector.
Note: Original IVU/antenna cable must be used to
connect the IVU/antenna to the 8210 RF Adapter kit.
Learn Pair
LED Button Button
SMARTKey Control Module
Control Module
Green White Black
IVU Cable
CPU1
Main Harness Note: Actual Control Module may di er
(see wiring table) to the example shown in diagram.
Arrow to Control Module does not re ect
the actual location of this connection
Linking the SmartKey to a Smartphone (all applications)
For iPhone, iPad, or iPod Touch:
1. Press and hold the Pair button on the SmartKey device (furthest from LED) until
the Blue LED lights.
2. Release the Pair button and the Blue LED will flash once per second.
3. On your iPhone go to Settings/Bluetooth and turn Bluetooth on.
4. Wait until the SmartKey device appears on your "devices" list then tap on it to
connect, and wait for it to display "Connected".
5. Now open the SmartStart app and go to the Cars tab. Tap the (+) button on the
upper right to add your SmartKey system to the Cars list. Follow the on-screen
directions to either link it with an existing vehicle that has a SmartStart system,
or to add it as a separate system..
6. Once connected, the Blue LED on the SmartKey module will be on solid. Now
you can test the installed SmartKey system.
To Remote Start or Security System
For Android smartphones or compatible tablets:
White
White
Green 1. Open the SmartStart app and navigate to More/Settings, then scroll to Blue-
tooth Control and make sure the Bluetooth Status box is checked. If the Blue-
tooth wireless function of your phone is currently off, the app will attempt to turn
it on and a permission box will pop up asking you to confirm that selection.
2. Press the Pair button (furthest from LED) and hold it until the LED turns blue.
Ignore the Red LED that comes on first.
3. Release the Pair button and the blue LED will flash once per second. The Smart-
Key module stays in Pairing mode for 60 seconds before it automatically exits.
If this happens, repeat step 2 to re-enter Pairing mode.
4. Navigate to the Cars tab of the SmartStart app and tap the (+) button on the
upper right to add your SmartKey system to the Cars list. Follow the on-screen
directions to either link it with an existing vehicle that has a SmartStart system,
or to add it as a separate system.
To Black connector 5. The phone will display "attempting to connect", then if successful it will display
on SMARTKey module
"connected successfully" and the Blue Led on the SmartKey module will blink
steady. Now you can test the installed SmartKey system.
6. If it is not successful you will see "Connection attempt failed"; repeat steps 4
and 5. If the Blue LED turns off on the SmartKey module, place it in Pairing
mode again (steps 2, 3) then repeat steps 4 and 5.
Setting the unlock/lock range for SmartKey - important! Please read and follow
these steps carefully.
1. Pair your phone (or customer's phone) to the installed SmartKey system.
2. Go to the Cars tab, and add or link the SmartKey module.
3. Select the ">" next to the vehicle name that represents the SmartKey system
4. Press the "Enable SmartKey" button
5. When the SmartKey User interface page opens, stand approximately 10-15
feet from the vehicle,preferably at a slight angle to the driver's side.
6. Press the Set Range button. This will establish your current position as the
approximate range where Unlock will occur, and automatically sets the Lock
range several feet further away from the vehicle. The Unlock/Lock sliders on
the SmartKey page will move to indicate the updated range thresholds.
7. Walk away from the vehicle and check that Lock occurs within a reasonable
distance, and then walk back to the vehicle to check that Unlock occurs before
you have reached the vehicle.
Note that the actual range varies depending on whether you are holding the phone
Directed
in your hand or have it in a pocket, also whether other metal or electronic devices
are close to the phone. These variances tend to be consistent but you should experi-
ment until you are comfortable with the programmed range. Be sure to explain these
steps and how range is affected by those factors to your customer, or they may not
have an optimal user experience.
CPU1
Advanced range control (not recommended):
You can manually adjust the range for Lock and Unlock separately, if required.
We do not recommend doing this unless you find that you cannot set good usable
thresholds with the Set Range button.
1. To manually adjust the existing thresholds, open the SmartKey user interface
page by going to Cars/Car details (the > button), and pressing the Enable
SmartKey button.
2. Drag and drop the individual sliders for Lock and Unlock as desired. When
you release the slider, a new range value will be sent to the SmartKey module
based on the position of the slider.
3. Important! Lock must always be programmed further away from the car than
Unlock. The app will not let you reverse those positions. Also, do not set the
two thresholds very close together, or excessive lock/unlock toggling will oc-
cur.
4. If you experience erratic locking/unlocking after manually setting the range
thresholds, reset the thresholds following the one-button "Set Range" program-
ming feature described above.
Other SmartKey features:
1. To temporarily disable SmartKey, you can send an active Lock or Unlock com-
mand. This will turn off passive locking/unlocking activity until you are out of
range of the vehicle. At that time SmartKey will re-engage.
2. To turn off SmartKey completely (disable passive locking/unlocking), tap the
Bluetooth icon on the top left of the main SmartStart user interface page and
check the pop-up to confirm that SmartKey is now disabled. Tap the icon
again when you want to re-enable SmartKey, otherwise it will remain disabled
indefinitely.
3. You can also turn on the SmartLock feature if you want to remain in the vicinity
of the vehicle without having it lock and unlock repeatedly. When SmartLock
is active, it defers the lock/unlock decision by a fixed period of time. Moving
past the lock and unlock thresholds resets those timers, preventing the vehicle
from locking or unlocking until you stay outside the threshold long enough for
the timers expire. Tap the SmartLock button on the Cars detail page for that
vehicle to enable SmartLock, tap it again to disable SmartLock.
4. Sleep mode is now enabled by tapping the Sleep Mode button on the Cars
detail page. This shuts down the module to prevent it from using any battery
current. Use this if you are parking the vehicle for extended periods of time.
You can wake the module back up when you return by simply sending a Con-
nect request. For iPhone, tap the device name on the phone's Bluetooth device
list. For Android, from either the main SmartStart user interface page or the
Cars tab, press the phone's Menu button to pop up a command box in the app
with the Connect button in it. Press that button to restart your SmartKey module.
5. Power Saver Mode is automatically entered after 14 hours of no command
activity. This mode leaves the SmartKey device active so you can connect
with it and send commands etc., but it reduces the polling activity cycle to
lower the amount of current draw from the battery. The SmartKey device will
automatically exit Power Saver Mode when you return to the vehicle or send
it a command.
1
