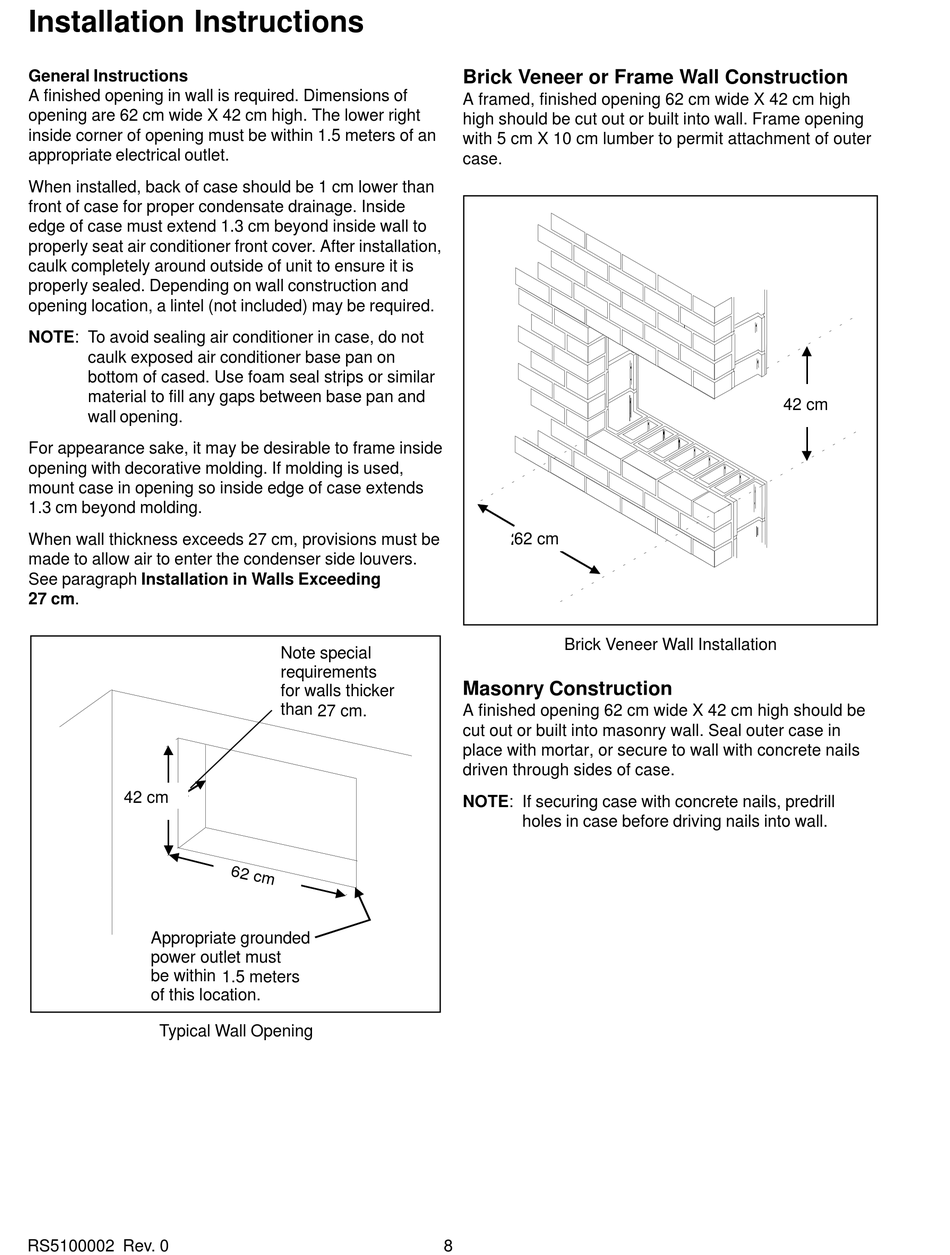

Installation Instructions

General Instructions

A finished opening in wall is required. Dimensions of

opening are 62 cm wide X 42 cm high. The lower right

inside corner of opening must be within 1.5 meters of an

appropriate electrical outlet.

When installed, back of case should be 1 cm lower than

front of case for proper condensate drainage. Inside

edge of case must extend 1.3 cm beyond inside wall to

properly seat air conditioner front cover. After installation,

caulk completely around outside of unit to ensure it is

properly sealed. Depending on wall construction and

opening location, a lintel (not included) may be required.

NOTE: To avoid sealing air conditioner in case, do not

caulk exposed air conditioner base pan on

bottom of cased. Use foam seal strips or similar

material to fill any gaps between base pan and

wall opening.

For appearance sake, it may be desirable to frame inside

opening with decorative molding. If molding is used,

mount case in opening so inside edge of case extends

1.3 cm beyond molding.

When wall thickness exceeds 27 cm, provisions must be

made to allow air to enter the condenser side louvers.

See paragraph Installation in Walls Exceeding

27 cm.

42 cm

17-1/2"

Appropriate grounded

power outlet must

be within 5 feet

of this location.

Typical Wall Opening

RS5100002 Rev. 0

Note special

requirements

for walls thicker

than 12"

27 cm.

1.5 meters
