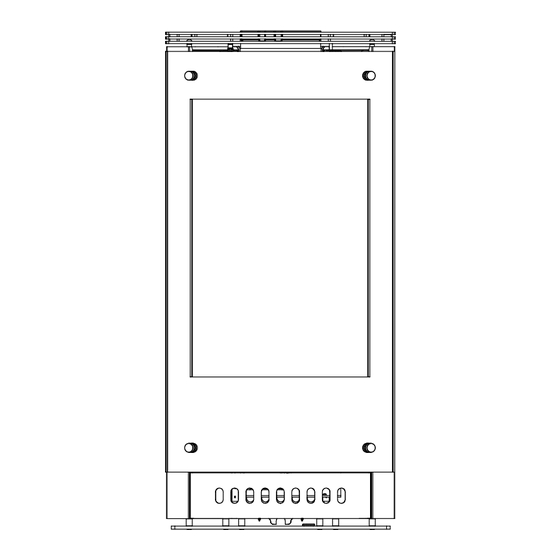

Model(s):
PALOMA-BZ-MOD
PALOMA-GY-MOD
PALOMA-BK-MOD
• Important operating
a n d m a i n t e n a n c e
instructions included.
WARNING: If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property damage,
personal injury, or death.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance.
- Do not touch any electrical switch. Do not use any
phone in your building.
- Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire
department.
• Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer's instructions and
the manufactured home construction and safety standard, Title
24 CFR, Part 3280 or Standard for Installation in Mobile Homes,
CAN/CSA Z240MH.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
1
Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14
CAUTION
DO NOT DISCARD THIS MANUAL
• Read, understand and follow
these instructions for safe
installation and operation.
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
In the Commonwealth of Massachusetts:
• Installation must be performed by a licensed plumber
See Table of Contents for location of additional
Commonwealth of Massachusetts requirements.
Owner's Manual
Installation and Operation
• Leave this manual with
party responsible for use
and operation.
!
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
materials away.
or gas fitter;
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
Technologies suggests NFI certified or factory trained
professionals, or technicians supervised by an NFI
certified professional.
Advertisement
Table of Contents
Related Manuals for Heat & Glo PALOMA-BZ-MOD
Summary of Contents for Heat & Glo PALOMA-BZ-MOD
-
Page 1: Installation And Operation
Hearth & Home CAN/CSA Z240MH. Technologies suggests NFI certified or factory trained This appliance is only for use with the type(s) of gas indicated professionals, or technicians supervised by an NFI on the rating plate. certified professional. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... - Page 2 00,000 00,000 00,000 00,000 MIN. MIN. INPUT INPUT BTUH: BTUH: 00,000 00,000 00,000 00,000 Serial Serial XXXXXXXX XXXXXXXX ORIFICE ORIFICE SIZE: SIZE: #XXXXX #XXXXX #XXXXX #XXXXX (Serie): (Serie): Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
-
Page 3: Table Of Contents
D. Loss of Power and Battery Backup Usage ... . 29 E. Wall Switch Installation for Fan (Optional) ... . 30 = Contains updated information. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 4: Listing And Code Approvals
Minimum Orifice *Steady **P.4 Model such as in bathrooms or near sinks. Input Input Size State (US or Canada) BTU/h BTU/h (DMS) Efficiency % Paloma (NG) 28,000 20,000 Paloma (LP) 26,000 19,000 *Maximum Vent Blower On **Canada Only Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 5: Requirements For The Commonwealth Of Massachusetts
VENT DIRECTLY Connection section additional BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”. Commonwealth of Massachusetts requirements. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 6: Getting Started
B. Tools and Supplies Needed Before beginning the installation be sure that the following tools and building supplies are available. Reciprocating saw Framing material Pliers Noncorrosive leak check solution or combustible gas detector Hammer Gloves Phillips screwdriver Framing square Flat blade screwdriver Electric drill and bits (1/4 in.) Plumb line Safety glasses Level Wrenches Ratchets/Sockets Allen Wrench Set Manometer Voltmeter Tape measure 1/2 - 3/4 inch length, #6 or #8 Self-drilling screws One 1/4 inch female connection (for optional fan) Caulk with a minimum of 300ºF continuous exposure rating Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 7: Framing And Clearances
A. Selecting Appliance Location When selecting a location for your appliance it is important to consider the required clearances to walls (see figure 3.1). “A” MEASUREMENT IS FROM APPLIANCE TOP, NOT SIDE ALCOVE Model Inches 10-1/8 12-1/8 30-3/4 13-1/4 13-1/4 15-1/2 Paloma Millimeters 1372 Figure 3.1 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 8: Clearances To Combustibles
• Locate and install appliance to all clearance specifications in manual. WARNING Fire Risk. Odor Risk. Tipping Risk • Install gas stove on a stable, level platform/floor strong enough to support gas stove without tipping. • USE wood flooring, ceramic tile, brick hearth or high pressure laminate flooring applied directly over the sub-flooring material. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 9: Termination Locations
In a staggered installation with both gas and wood or fuel oil terminations, the wood or fuel oil termination cap must be higher than the gas termination cap. Figure 4.3 Staggered Termination Caps Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... - Page 10 3. All gravity air intakes within 3 feet of a termination cap must be a appliance when the venting system does not meet these requirements. minimum of 1 foot below the termination cap. Figure 4.4 Minimum Clearances for Termination CAUTION: IF EXTERIOR WALLS ARE FINISHED WITH VINYL SIDING, IT IS SUGGESTED THAT A VINYL PROTECTOR KIT BE INSTALLED. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
-
Page 11: Vent Information
May impair safe operation of this appliance or following standards. other appliances connected to the flue. 1. Pipe measurements are from center line to center line. 2. Horizontal terminations are measured to the outside mounting surface (flange of termination cap) (see Figure 4.1) on page 9. 3. Vertical terminations are measured to the top of the last pipe before termination cap. 4. Horizontal pipe installed level with 1/4 inch rise per foot. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 12: How To Use The Vent Graph
1/4 in. (6 mm) rise per foot. For rear vent or top of appliance for top 6 in. (152 mm) Minimum starter pipe Figure 5.2 vent. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 13: Horizontal Termination
5.5. Cut and frame the hole in the exterior wall where • Pipe may separate if not properly joined. the vent will be terminated. If the wall being penetrated is constructed of noncombustible material, i.e. masonry block or concrete, a 7 in. (178 mm) diameter hole is acceptable. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... - Page 14 Follow manufacturer’s instructions for attaching the vinyl siding standoff to the horizontal termination cap. The vinyl siding standoff prevents excessive heat from possibly melting the vinyl siding material. The vent terminal cap shall not be recessed into a wall or siding. Remove siding from the area where the standoff will be located. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
- Page 15 FOLD STRAP HERE SHEET METAL SCREW WALL THIMBLE WALL THIMBLE COVER/CEILING FIRESTOP AS REQUIRED BY LOCAL JURISDICTION STRAP Figure 5.9 Note: The attachment from the vent pipe to the vent termination cap must be sealed with silicone. Termination caps shall not be recessed into a wall or siding. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
-
Page 16: Vertical Termination
WALL STRAP maximum allowable horizontal run (as specified by vent graph, on page 12). WALL STRAP WARNING TWO 45º ELBOWS Fire Risk. Explosion Risk. Maintain vent clearance to combustibles as specified. • Do not pack air space with insulation or other materials. Failure to keep insulation or other materials away from vent pipe may cause fire. Figure 5.12 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... - Page 17 6. Slip the flashing over the pipe section(s) protruding through the roof. Secure the base of the flashing to the roof with roofing nails. Ensure the roofing material overlaps the top edge of the flashing as shown in Figure 5.14. Verify that the chimney is the required height above the roof. See roof pitch table, Figure 4.2, on page 9. Figure 5.15 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
-
Page 18: Secure The Vent Sections
Figure 10.9 Securing Horizontal Pipe Sections with standard construction materials; however, refer to these installation instructions for the minimum allowable clearance between the outside of the vent pipe and the combustible surfaces of the enclosure. Do not fill any of the required air space with insulation. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 19: Disassemble Vent Sections
5. Assemble the desired lengths of pipe and elbows necessary to reach from the appliance up through the round support box. Ensure that all pipe and elbow connections are in their fully twist-locked position. Assemble as instructed. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 20: Class A Metal Chimney
TRIM COLLAR 1. Remove existing chimney cap. 2. Measure the distance from the top of the chimney to the bottom of the ceiling support box, add 3 in. (76 mm) to this measurement, and cut a section of 4 in. (101 mm) flex pipe to that length (the flex should be fully extended). 3. Connect the end of the flex pipe section to the underside of the top adapter, using four sheet metal screws (Figure 5.21). TOP ADAPTER CATHEDRAL CEILING SUPPORT BOX SCREWS Figure 5.19 FLEX PIPE SHEET METAL SCREWS Figure 5.21 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 21: Existing Masonry Chimney
If the hole is framed a round box with sheet metal screws. support box/wall thimble is required. This allows the 7. The connection between the appliance and the retro retro connector to mount directly on the masonry and connector may be completed with sections of direct vent provide the correct clearances to combustibles (Figure pipe. 5.25). Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... - Page 22 Connect the flex to the coupler by using four sheet metal screws for each side (Figure 5.27). FLEX LINER FLEX COUPLER SHEET METAL SCREWS SEALANT-ADHESIVE Figure 5.27 Figure 5.26 8. Secure the top adapter to the flashing. Use three sheet metal screws through the side of the top adapter into the flange on the flashing (Figure 5.28). Twist lock the high wind termination cap on to the top adapter. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
- Page 23 Be careful to ensure that the connector is centered in the opening and the mounting holes line up with the masonry wall. 6 in. (152 mm) DIAMETER OPENING IN MASONRY WALL RETRO CONNECTOR THREE MASONRY BOLTS (NOT INCLUDED) Figure 5.29 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
-
Page 24: Slim Line Wall Thimble
Sheet metal edges are sharp. minimum of 3/4 in. (19 mm) minimum clearance maintained to combustibles from the top of the heat shield. Ensure that framing on the inside of the wall is a minimum inner framing diameter of 10 in. x 10. in. (254 mm x 254 mm). The four trim ring mounting screws provided should be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... - Page 25 MM) CLEARANCE FROM REAR OF STOVE WALL THIMBLE CENTER LINE HTI VENT HHW2 PART #841-0670 (RECOMMENDED HEAT SHIELD OVER FOR OPTIMUM PERFORMANCE) TOP HALF OF PIPE TRIM RING Figure 5.35 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
-
Page 26: Gas Information
1/2 psig. WARNING Verify inlet pressures. • High pressure may cause overfire condition. • Low pressure may cause explosion. • Verify minimum pressures when other household gas appliances are operating. Install regulator upstream of valve if line pressure is greater than 1/2 psig. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 27: Gas Connection
To identify the proper orifice size, check with the local gas utility. WARNING If installing this appliance at an elevation above 4500 feet (in Canada), check with local authorities. Fire or Explosion Hazard • Gas buildup during line purge may ignite. • Purge should be performed by qualified technician. • Ensure adequate ventilation. • Ensure there are no ignition sources such as sparks or open flames. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 28: Electrical Information
Conversely, the transformer must be unplugged if the 18 gauge 40 feet battery pack is used. 20 gauge 25 feet NOTICE: Battery polarity must be correct or module damage 22 gauge 18 feet will occur. Figure 7.1 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 29: Loss Of Power And Battery Backup Usage
3. Place two "D" cell batteries into the battery holder. (Figure 7.3) 4. Turn on appliance and verify it is operational. 5. Replace lower access panel and front door assembly. CAUTION If IPI battery back-up is installed: • Do not install batteries if the backup mode may not be used for extended time. • Batteries may leak. • Install batteries only when needed for power outage. BATTERY LOCATION Figure 7.3 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 30: Wall Switch Installation For Fan (Optional)
(1/4 inch male) as shown. SWITCH MINIMUM 14-3 AWG WITH GROUND Black Black White White Green Green JUNCTION BOX POWER SUPPLY WIRES SWITCH BOX Figure 7.4 Junction Box Wired to Wall Switch Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 31: Appliance Setup
Refer to Figure 8.2 for locations. screws that hold the back panel in place. Refer to Figure 8.8. Using the black grommet located in the component bag, slide it into the bottom of the back panel and feed the power cord through the grommet, as shown in Figure 8.1. Figure 8.2 Figure 8.1 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 32: Leveling And Lagging Down The Appliance
Shock or fire risk. Use ONLY optional accessories approved for this appliance. • Using non-listed accessories voids warranty. • Using non-listed accessories may result in a safety hazard. Figure 8.4 • Only Hearth & Home Technologies approved accessories may be used safely. After unbolting the appliance from the pallet, insert two 1/4 20 x 1/1/2 counters crews. Using pliers, adjust the counters crews to level the appliance. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 33: Top To Rear Vent Conversion
4. Remove the four screws from the DV adapter collar. (Figure 8.9) Set aside DV adapter collar, gasket and screws. 5. Remove the inner extension starter collar (Shown in Figure 8.9) and set aside. Figure 8.11 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 34: Shutter Adjustment
F. Shutter Adjustment The shutter is located on the underside of the burner, on the Figure 8.15 burner neck (see Figure 8.13). For vertical venting above 15 ft. a vent restrictor is required. Figure 8.13 Air Shutter Settings PALOMA-BZ-MOD PALOMA-BK-MOD PALOMA-GY MOD Rear Vent 1/2 in. 1/2 in. Top Vent 3/8 in. 1/2 in. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 35: Installing Rock Media And Ember Material
RIGHT ROCK Delayed Ignition Risk CLUSTER • Place rock clusters according to instructions. • Do NOT place rock clusters in a position that they cover burner ports. • Do NOT use any media other than the rock clusters supplied with this fireplace. Fireplace will not function properly. Delayed ignition may occur. Figure 3. Placing Right Rock Cluster Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... - Page 36 Improperly placed rock cluster will interfere with should be taken not to cover the lighting trail of ports (from proper burner operation. back to front). • Place dime-size pieces of embers in the areas highlighted in Figure 7. Care should be taken so that the ports are not LEFT ROCK covered. Failure to follow this procedure will likely cause CLUSTER lighting and sooting problems. EMBERS BASEPAN LEDGE Figure 5. Placing Left Rock Cluster Figure 7. Ember Placement Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
-
Page 37: Optional Blower
CAUTION Figure 8.23 All wiring should be done by a qualified electrician and shall be Feed the blue wire and other black wire from the variable in compliance with local codes and with the National Electric speed control behind the gas valve assembly. Insert the Code ANSI/NFPA NO. 70-current (in the United States), or with wires into the slots indicated in Figure 8.28. the current CSA C22.1 Canadian Electric Code (in Canada). Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... - Page 38 Plug appliance in. Turn the 110-120 VAC service "ON" at Attach rheostat in mating feature of control shield so that the circuit breaker and turn the speed control switch to the orientation of control knob is downward. See Figure 8.25. "ON" position. FAN BASE CONTACTS FAN BRACKET Figure 8.27 Figure 8.25 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
- Page 39 Figure 8.28 Blower Wiring Diagram WARNING! Risk of Shock! Replace damaged wire with type 105º C rated wire. Wire must have high temperature insulation. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
-
Page 40: Remote Controls
Attach red wires from the remote receiver to the ON/OFF SOLENOID switch. Reinstall the blower into the blower bracket. KNOB 3 Prong Cord SCREW VARIABLE REGULATOR WASHER Wires Ties FLAME CONTROL SOLENOID JAM NUT PLUNGER Figure 8.29 Figure 8.30 Flame Control Solenoid Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... - Page 41 GROUND TO FIREPLACE CHASSIS PLUG RED JUMPER WIRE TO BROWN VALVE BATTERY PACK PIGGYBACK ON/OFF SWITCH FLAME CONTROL SOLENOID ORANGE ORANGE Figure 8.31 Remote Control IPI Wiring Diagram Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
-
Page 42: Front Door Glass Assembly Replacement
• DO NOT operate fireplace with glass removed, cracked, broken or scratched. Protective barrel sleeve • Replace glass door as a complete assembly. through hole in the glass Figure 8.33 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 43: Operating Instructions
Valve Variable Control Variable Speed Control Knob ON/OFF Switch WARNING Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier. Figure 9.1 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 44: Lighting Instructions (Ipi)
California to cause cancer, birth defects, or other reproductive harm. For assistance additional information, consult a qualified Keep burner and control compartment installer, service agency or the gas clean. See installation and operating supplier. instructions accompanying appliance. For additional information on operating your Hearth & Home Technologies fireplace, please refer to www.fireplaces.com. Final inspection by _______________________________ Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 45: After Appliance Is Lit
E. Frequently Asked Questions ISSUE SOLUTIONS This is a result of gas combustion and temperature variations. As the fireplace warms, this Condensation on the glass condensation will disappear. This is a result of normal operation and the flames will begin to yellow as the fireplace is al- Blue flames lowed to burn for 20 to 40 minutes. When first operated, this fireplace may release an odor for the first several hours. This is caused Odor from fireplace by the curing of the paint and the burning off of any oils remaining from manufacturing. Odor may also be released from finishing materials and adhesives used around the fireplace. This is a normal result of the curing process of the paint. Glass should be cleaned within 3 Film on the glass to 4 hours of initial burning to remove deposits left by oils from the manufacturing process. A non-abrasive cleaner such as gas fireplace glass cleaner may be necessary. See your dealer. Noise is caused by metal expanding and contracting as it heats up and cools down, similar to Metallic noise the sound produced by a furnace or heating duct. This noise does not affect the operation or longevity of the fireplace. In an intermittent pilot ignition system (IPI), the pilot flame should turn off when appliance is Is it normal to see the pilot flame burn turned off. Some optional control systems available with IPI models may allow pilot flame to continually? remain lit. In a standing pilot system the pilot will always stay on. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 46: Troubleshooting
Verify that incoming gas line ball valve is “open”. Verify that inlet Pilot will not light. pressure reading is within acceptable limits, inlet pressure must not exceed 14 in. W.C. B. Ignitor gap is too large. Verify gap of igniter to right side of pilot hood. The gap should be approximately .17 in. or 1/8 in. (3 mm). C. Module is not grounded. Verify module is securely grounded to metal chassis of appliance. D. Module voltage output / Valve/Pilot Verify battery voltage is at least 2.7 volts. Replace batteries if solenoid ohms readings. voltage is below 2.7. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... - Page 47 Verify connection from flame sensing rod to white sensor wire. Polish flame sensing rod with fine steel wool to remove any contaminants that may have accumulated on flame sensing rod. Verify continuity with a multimeter with ohms set at lowest range. Replace pilot if any damage is detected. E. Module. Turn ON/OFF rocker switch or wall switch to OFF position. Remove ignitor wire “I” from module. Place ON/OFF rocker switch or wall switch in ON position. If there is no spark at “I” terminal module must be replaced. If there is a spark at “I” terminal, module is fine. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
-
Page 48: Maintaining And Servicing Appliance
• Burner air shutter adjustment • Combustible materials blocking cap may ignite. • Gas connections and fittings. • Obstructions of termination cap. • Restricted air flow affects burner operation. Clean: • Glass • Air passageways, grilles, control compartment • Burner, burner ports Risk of: • Fire • Delayed ignition or explosion • Exposure to combustion fumes • Odors Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 49: Maintenance Tasks
Burner Ignition and 1. Verify burner is properly secured and aligned with pilot or igniter. Operation 2. Clean off burner top, inspect for plugged ports, corrosion or deterioration. Replace burner if necessary. 3. Replace ember materials with new dime-size and shape pieces. Do not block ports or obstruct lighting paths. 4. Check for smooth lighting and ignition carryover to all ports. Verify there is no ignition delay. 5. Inspect for lifting or other flame problems. 6. Inspect orifice for soot, dirt or corrosion. 7. Verify manifold and inlet pressures. Adjust regulator as required. 8. Inspect pilot flame strength. Clean or replace orifice as necessary. 9. Inspect thermocouple/thermopile or IPI sensor rod for soot, corrosion and deterioration. Polish with fine steel wool or replace as required. 10. Verify millivolt output. Replace as necessary. Venting 1. Inspect venting for blockage or obstruction such as bird nests, leaves, etc. 2. Confirm that termination cap remains clear and unobstructed by plants, etc. 3. Verify that termination cap clearance to subsequent construction (building additions, decks, fences or sheds) has been maintained. 4. Inspect for corrosion or separation. 5. Verify weather stripping, sealing and flashing remains intact. Remote controls 1. Verify operation of remote. 2. Replace batteries in remote transmitters and battery-powered receivers. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 50: Reference Materials
Hearth Pad Height includes 3/8 in (9.53 mm) hearth pad Location Inches Millimeter Location Inches Millimeter 18-7/8 7-1/8 40-3/4 1035 40-3/8 1025 28-7/8 15-7/8 34-5/8 Figure 12.1 Appliance Dimensions Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 51: Vent Components Diagram
167 mm 167 mm 167 mm 167 mm SLP48 SLP12 SLP36 SLP24 Note: Pipes overlap 1-3/8 inches (34.93 mm) at each joint. Figure 12.3 SLP Series Vent Components Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... - Page 52 D. Vent Components Diagrams (continued) 7-3/8 IN. 187 mm 17-7/8 IN. 454 mm 14 IN. 356 mm 12 IN. 305 mm Figure 12.4 SLP Series Vent Components Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
-
Page 53: Vent Components List
Pipe Support Hanger 46DVA-GCL Co-axial / Co-lineal Appliance Connector Vinyl Protector Kit - SL Pipe 46DVA-KMC Retrofit Adj. Chimney Connector DRC-RADIUS Decorative Radius Cover Retrofit Chimney Connector Plate SLP-SA Flue Adaptor NOTICE: The PVK-80 power vent kit is NOT approved for use with PALOMA-BZ-MOD, PALOMA-BK-MOD, or PALOMA-GY-MOD. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 54: Service Parts
Gas Stove - DV Beginning Manufacturing Date: Aug 2009 Ending Manufacturing Date: Active Paloma-GY-MOD (Gray), Paloma-GR-MOD (Green), Paloma-BZ-MOD (Bronze), Paloma-BK-MOD (Black)) Rock Placement Part number list on following page. 06/14 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... -
Page 55: Service Parts
4021-013 Power Cord 832-2410 Wire Assembly 593-590A 3V Transformer 593-593A Battery Pack 593-594A Gray 2123-026 Side Assembly Right 2123-026-BK Black Additional service part numbers appear on following page. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... - Page 56 Male connector Pkg of 5 303-315/5 22.8 Flex Ball Valve Assembly 2098-034 22.9 Flex 12” 383-302A 22.10 Pilot Bracket 2189-119 Additional service part numbers appear on following page. Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
- Page 57 PAL-GLS-BZ Front Glass Green PAL-GLS-GR Smoke PAL-GLS-GY Bronze HP-PAL-BZ Standard Hearth Pad HP-PAL-GR No longer available Smoke HP-PAL-GY Touch Up Paint (Pewter) TUPNP-12 Touch Up Paint (Black) TUP-GBK-12 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
-
Page 58: Limited Lifetime Warranty
3 years Firebox and heat exchanger Lifetime All replacement parts 90 Days beyond warranty period See conditions, exclusions, and limitations on next page. 4021-645F 02-18-13 Page 1 of 2 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14... - Page 59 THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE. 4021-645F 02-18-13 Page 2 of 2 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
-
Page 60: Contact Information
5890485, 5941237, 6006743, 6019099, 6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7098269, 7258116, 7470729, 8147240 or other U.S. and foreign patents pending. 2000-945B Printed in U.S.A. - Copyright 2014 Heat & Glo • PALOMA-BZ-MOD, PALOMA-GR-MOD, PALOMA-GY-MOD • 2189-900 R14 • 11/14...
