1.1 UNPACKING

• Remove all packaging material.
• Remove separate accessory box.
• Remove the generator from carton.
1.1.1 ACCESSORY BOX
Check all contents. If any parts are missing or damaged, locate an
authorized dealer at 1-888-436-3722.
• 1 - Owner's Manual
• 1- Oil SAE 30
• 2- 7" Wheels
• 1- Handle Assembly
• 1- Handle Bracket
• 1- Hardware Bag (containing the following):
2 - Rubber bumpers
2 - Bumper Brackets
2 - M12-1.75 Axle Nuts
2 - M12 Flat Washers
2 - M6-1.0 x 16 Flange Bolts

1.2 ASSEMBLY

The generator requires some assembly prior to using it. If problems
arise when assembling the generator, please call the Generator
Helpline at 1-888-436-3722.
1.2.1 ASSEMBLING THE ACCESSORY KIT
The wheels are designed to the unit to greatly improve the portability
of the generator.
The wheels are not intended for over-the-road-use.
1. Refer to Figure 1 to install the wheels as shown.
• Insert the threaded end of the wheel axle through the
mounting bracket on the generator frame.
• Install the M12 wheel axle nut onto the wheel axle.
• Slide on the wheel and flat washer, and then insert the cotter
pin through the wheel axle hole.
• Bend the cotter pin tabs outward to lock the pin in place.
2. Refer to Figure 1 to install the wheel bumpers as shown.
• Insert an M6 bolt through the rubber bumper and the bottom
of the bumper bracket. Secure the bolt with an M6 flange
nut.
• Install an M6 bolt through the generator frame and through
top of the bumper bracket. Secure the bolt with an M6 flange
nut.
3. Refer to Figure 2 to install the handle assembly as shown.
• Insert the handle bracket onto the generator frame and
secure with two M6 bolts and two M6 flange nuts.
• Align the handle assembly holes with the handle bracket
holes and secure with one M6 bolt and one M6 flange nut.
4
Section 1 – General Information
Portable Generator System
7 - M6 Flange Nuts
2 - Wheel Axles
5 - M6-1 x 40 Flange Bolts
2 - Cotter Pins
NOTE:

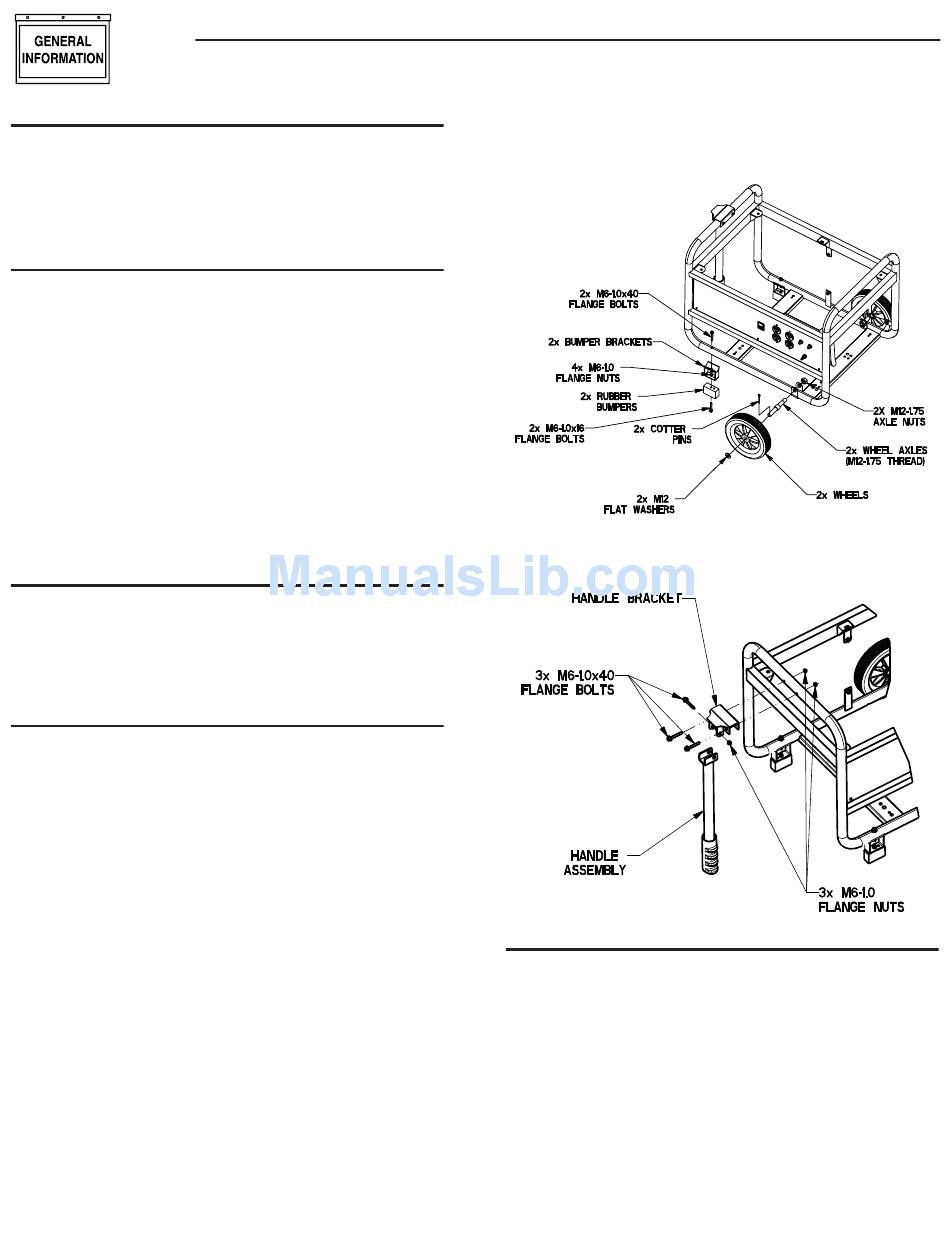

Figure 1 – Wheel Assembly
Figure 2 – Handle Kit

2.1 KNOW THE GENERATOR

Read the Owner's Manual and Safety Rules before operating this
generator.
Compare the generator to Figures 3 through 5 to become familiarized
with the locations of various controls and adjustments. Save this
manual for future reference.
1. 120 Volt AC, 20 Amp, Duplex Receptacle – Supplies electrical
power for the operation of 120 Volt AC, 20 Amp, single-phase, 60
Hz electrical lighting, appliance, tool and motor loads.
2. Circuit Breakers (AC) – Each receptacle is provided with a
push-to-reset circuit breaker to protect the generator against
electrical overload.
