- Page 1 CABINET PARTS REFRIGERATOR For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White) Part No. W10200529 Rev.A 4−08 Litho In U.S.A. (pl) (psw)
-
Page 2: Cabinet Parts

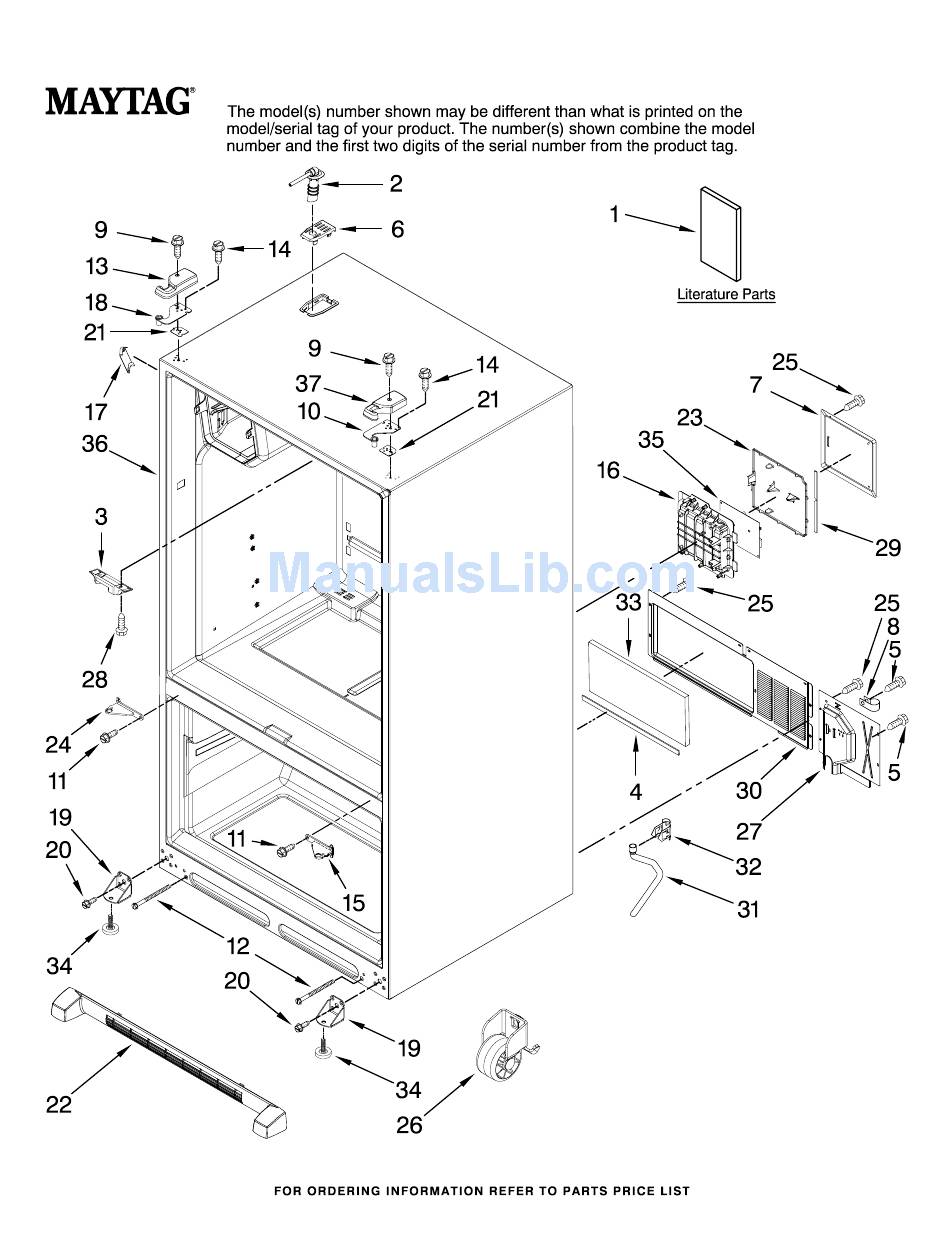

For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) Illus. Part DESCRIPTION Literature Parts W10189628 Tech Sheet W10200530 Use & Care Guide W10185602 Tag, Energy 16026312 Service Manual 67006317 Tube W/Waterline, Fill−IM 67003405 Block, Pivot B5759649 Gasket, MC Back... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White) W10200529... - Page 4 REFRIGERATOR LINER PARTS For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) Illus. 14 UKF8001AXX Filter, Water 22 M0238642 Screw 25 W10118193 Enclosure, Water 26 W10118194 Lid, Enclosure (Bisque) (Monochromatic Stainless) (White) Part DESCRIPTION Liner (Not A Serviceable Part)
-
Page 5: Shelf Parts
SHELF PARTS For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White) W10200529... - Page 6 For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) Illus. Part DESCRIPTION 67002761 Glass, Pantry 67005923 Front, Crisper Pan (2) 3 W10187852 Shelf, Mini (Stationary) 67006010 Extr, Glass Support (2) 67002330 Brace, Pantry (2) 67001719 Track, Pantry 67006287 Screw...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White) W10200529... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) Illus. 2 W10121282 Inlet, Blower 3 W10121281 Scroll, Blower 4 W10162697 Motor, Fan 5 W10123444 Wheel, Blower 6 W10165970 Clip, Fan Motor 7 W10151687 Grommet, Fan Motor...
-
Page 9: Icemaker Parts
ICEMAKER PARTS For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White) W10200529... - Page 10 ICEMAKER PARTS For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) Illus. 1 W10122527 Mold & Heater 2 W10175514 Arm, Shutoff 10 W10121440 Extension, Shutoff 12 W10121444 Cover 14 W10121269 Impinger Assy. 15 W10117860 Harness, Icemaker 20 W10121434 Insert, Fill Cup...
-
Page 11: Freezer Liner Parts
FREEZER LINER PARTS For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White) W10200529... - Page 12 FREEZER LINER PARTS For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) Illus. 19 W10120018 Slide, Drawer (2) 26 W10162809 Motor, Evaporator 28 M0500703 Seal, O Ring (Bisque) (Monochromatic Stainless) (White) Part DESCRIPTION Liner (Not A Seviceable Part) 12002355 Thermistor Kit 12002497 Gear (Left) (Incl.
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White) W10200529... - Page 14 REFRIGERATOR DOOR PARTS For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) Illus. Part DESCRIPTION Door, Left W10174213 White W10173928 Black W10174149 Bisque W10191138 Stainless W10191136 Satina 67006311 Dispenser, Can 67003637 Door, Dairy 67001279 Tray, Dairy 67006313 Bin, Shelf...
-
Page 15: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) Dispenser Keyboard W10159999 White W10164469 Black W10164468 Bisque W10164470 Satina W10164471 Stainless 67006294 Board, L.V. Sump, Dispenser W10142274 White W10164979 Black... -
Page 16: Freezer Door Parts
For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) Illus. Part DESCRIPTION Freezer Door W10174214 White W10173929 Black W10174150 Bisque W10191131 Stainless W10191120 Satina Handle, Door 67007107 White 67007105 Black 67007106 Bisque W10138763 Stainless W10191147 Antique Pewter FREEZER DOOR PARTS (Bisque) (Monochromatic Stainless) (White) Illus. -
Page 17: Unit Parts
UNIT PARTS For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) (Bisque) (Monochromatic Stainless) (White) W10200529... - Page 18 For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) Illus. Part DESCRIPTION 67006433 Screw 2 W10162928 Blade, Fan 67005889 Basepan 67006425 Screw 67004954 Screw (3) 67006737 Screw, Clip 7 W10119239 Harness, Evap Heater 67007175 Pan, Drain 61004743 Grommet (3)
- Page 19 OPTIONAL PARTS (NOT INCLUDED) For Models: MFI2569VEA10, MFI2569VEB10, MFI2569VEQ10, MFI2569VEM10, MFI2569VEW10 (Monochromatic Satina) (Black) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Customer Touch−Up Material 350942 Primer, White (13 Oz. Spray Can) 350939 Enamel, Black (13 Oz. Spray Can) 350930 Enamel, White (13 Oz.
