Getinge Decomat 4656 Installation Instructions Manual
Hide thumbs
Also See for Decomat 4656:
- Installation instructions manual (16 pages) ,
- Operating instructions manual (16 pages)
Related Manuals for Getinge Decomat 4656
Summary of Contents for Getinge Decomat 4656

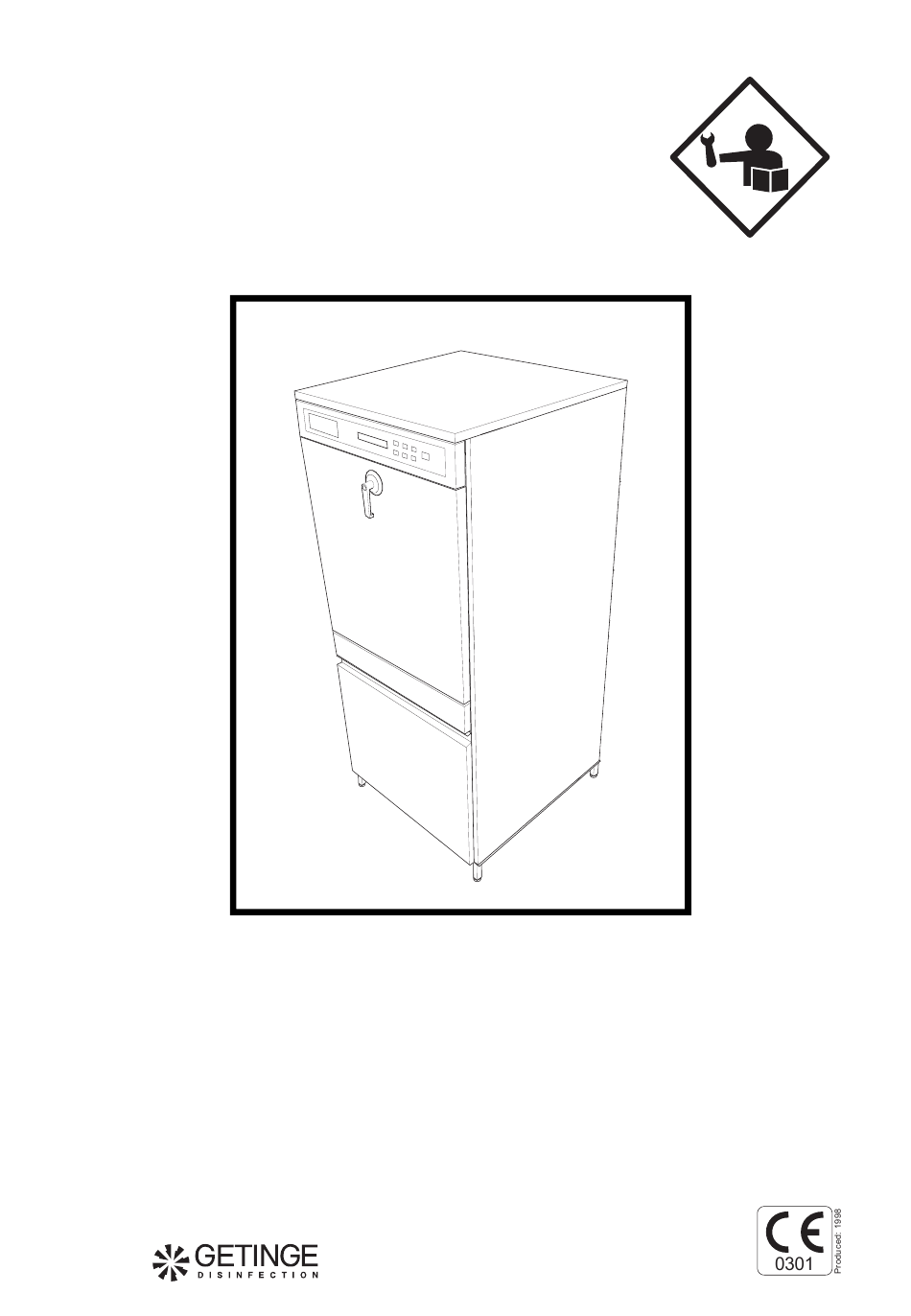

- Page 1 All manuals and user guides at all-guides.com Installation instructions Decomat 4656 INSTALLATION INSTRUCTIONS Decomat 4656 Serial no. 701600 - 4997985-02 9809...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Decomat 4656 Installation instructions Contents Safety rules _______________________________________________ 3 General safety rules _______________________________________ 3 Power cut-off device ______________________________________ 3 Caution symbols _________________________________________ 3 Installation ________________________________________________ 4 Wall-mounted model ______________________________________ 5 Free-standing model ______________________________________ 5... -
Page 3: Safety Rules
All manuals and user guides at all-guides.com Installation instructions Decomat 4656 Safety rules This machine is designed with a number of integrated safety devices. To avoid personal injury it is essential that the safety devices are not bypassed or in any other way put out of action. -
Page 4: Installation
All manuals and user guides at all-guides.com Decomat 4656 Installation instructions Installation • Pull the machine (standing on a transport pallet) to where it is to stand. • Remove the detergent compartment. • Lift the machine from the transport pallet. -
Page 5: Wall-Mounted Model
All manuals and user guides at all-guides.com Installation instructions Decomat 4656 Wall-mounted model • If the machine is fitted with two doors and is to be installed in a wall, the clearance between wall and machine must be at least 15 mm. - Page 6 All manuals and user guides at all-guides.com Decomat 4656 Installation instructions • Check that the door and both side panels are parallel. If not: • Remove the lower front panel and adjust the machine. • Adjust the machine by turning the nuts to the left or right accordingly.
-
Page 7: Connection Of Electricity, Water, Steam And Drain
All manuals and user guides at all-guides.com Installation instructions Decomat 4656 Connection of electricity, water, steam and drain Installation may be made by authorized personnel only. • The machine should be fitted with a power cut-off device with a 3 mm gap in the mains supply feed to facilitate maintenance and servicing. - Page 8 All manuals and user guides at all-guides.com Decomat 4656 Installation instructions • Fit the connections for water, and steam if used, with separate shut-off cocks. Flush the water and any steam pipes that are to be connected to the machine so that they are clean and thus prevent clogging of filters and valves.
- Page 9 All manuals and user guides at all-guides.com Installation instructions Decomat 4656 • Connect a de-aerator to the dryer (if the machine is fitted with one), diameter: 63 mm. Fig. 8. Connections for drain and evacuation from dryer Adjustable within this range...
-
Page 10: Functional Check
All manuals and user guides at all-guides.com Decomat 4656 Installation instructions Functional check • Ensure that the machine is connected to the correct power supply and that the drain, water, steam and condensate connections are correctly made. Open the water and steam cocks. -
Page 11: Technical Data
All manuals and user guides at all-guides.com Installation instructions Decomat 4656 Technical data Weight: Machine without dryer 145 kg Machine with dryer 175 kg Width 650 mm Depth 690 mm Height: Single machine without dryer 1460 Single machine with dryer1860... - Page 12 All manuals and user guides at all-guides.com Decomat 4656 Installation instructions Electric power- Japan Variant G2 200 V, 3+E, 50/60 Hz (TN) Fuse 3x30 A Rated power 9,0 kW Variant V2 without dryer 200 V, 3+E, 50/60 Hz (TN) Fuse...
-
Page 13: Electric Circuit Diagram
All manuals and user guides at all-guides.com Installation instructions Decomat 4656 Electric circuit diagram 9809... - Page 14 All manuals and user guides at all-guides.com...
- Page 15 All manuals and user guides at all-guides.com...
- Page 16 All manuals and user guides at all-guides.com This product is manufactured by: GETINGE DISINFECTION AB, Ljungadalsgatan 11, Box 1505, 351 15 Växjö, Sweden...
