NOTE

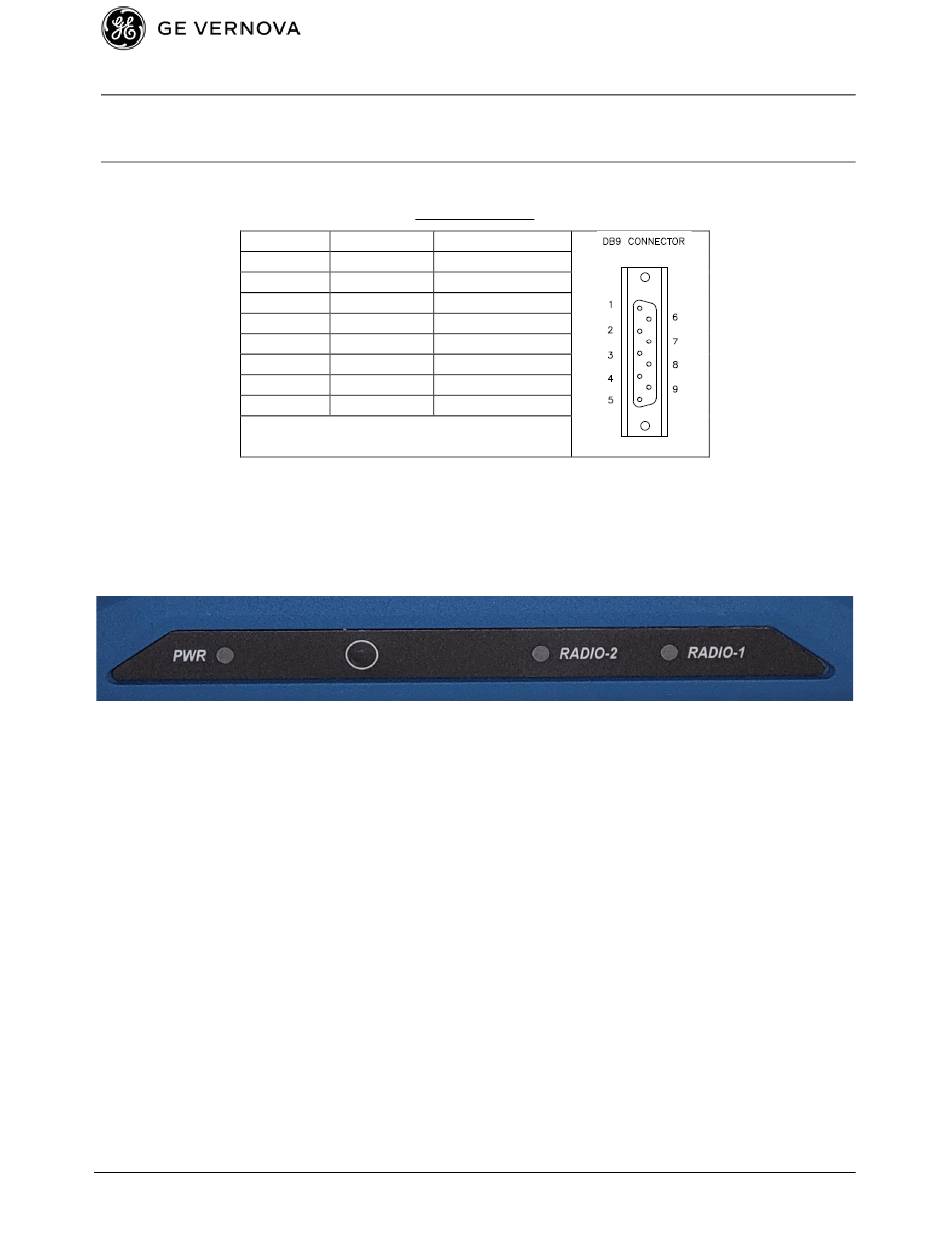

GE MDS part number 73-2434A25 provides a custom RJ45 to DB9 Adapter for use with the
TransNEXT and other GE MDS products. The chart below provides details for connections
made using this adapter.
RJ-45 PIN
LED / Button Panel —The LEDs on the top of the unit provide visual indications of device status. The
push button (appearing like a thin white circle) is used for special functions like controlling the optional
E-ink display screen.
18
WIRING CHART
FUNCTION
1 DSR
2 DCD
3 DTR
4 GND
5 RXD
6 TXD
7 CTS
8 RTS
Figure 2-6. LED Indicators & Push Button
MDS TransNEXT Technical Manual
DB9 PIN
6
1
4
5
2
3
8
7
