6.3

Error message

6.3.1

On-board computer

The drive system monitors itself continuously and
displays a number as an error message if a known
error is detected. The system may switch off
automatically depending on the type of error.
Code Description
410 One or more on-board
computer buttons are
blocked
414 Connection problem
with the control panel
418 One or more buttons
on the control panel
are blocked
419 Configuration error
422 Battery connection
problem
423 Battery connection
problem
424 Communication error
with components
communicating with
one another
426 Internal time-out error
430 On-board computer
battery flat
Software version error 1
431

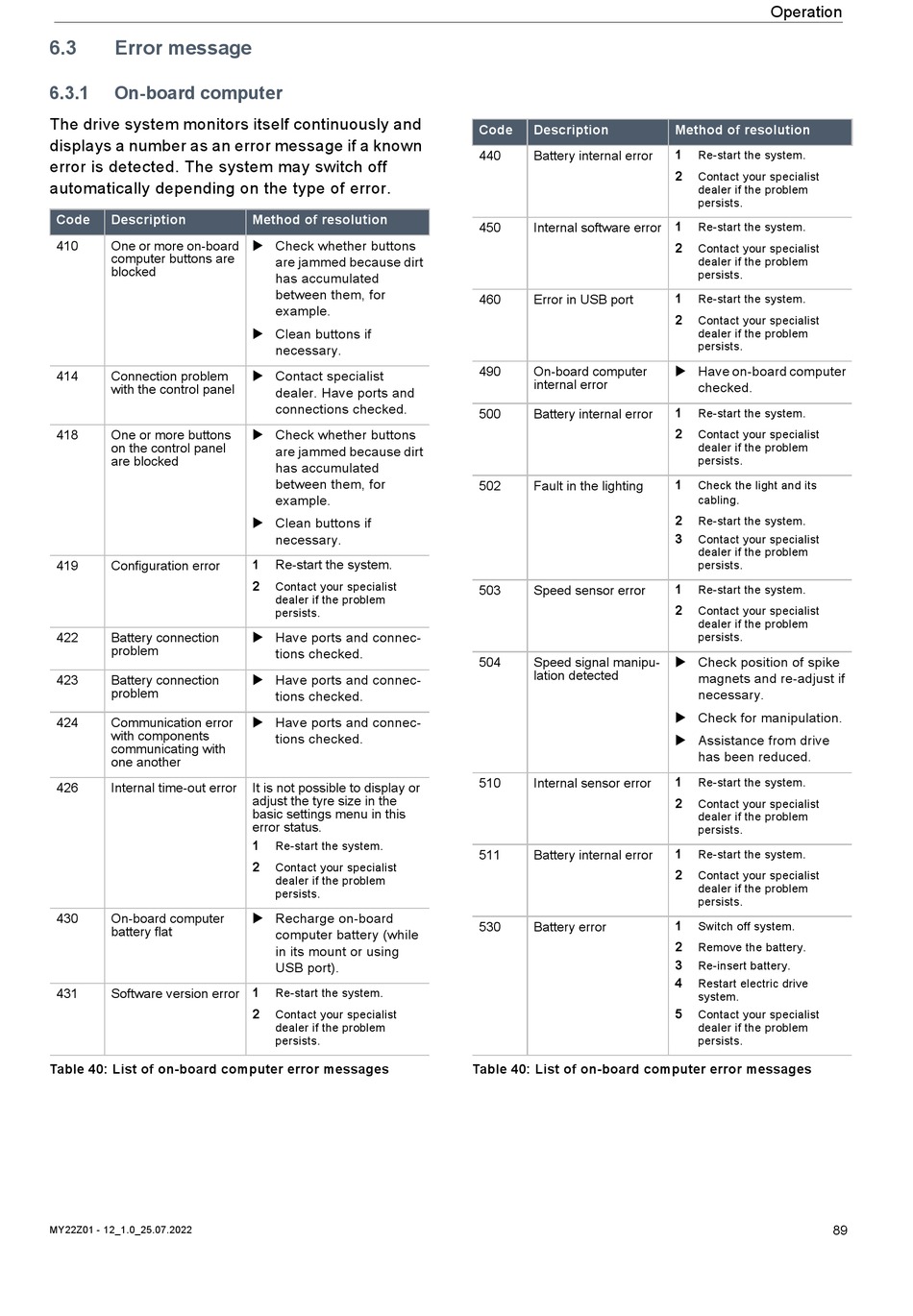

Table 40: List of on-board computer error messages
MY22Z01 - 12_1.0_25.07.2022
Method of resolution
 Check whether buttons
are jammed because dirt
has accumulated
between them, for
example.
 Clean buttons if
necessary.
 Contact specialist
dealer. Have ports and
connections checked.
 Check whether buttons
are jammed because dirt
has accumulated
between them, for
example.
 Clean buttons if
necessary.
1 Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
 Have ports and connec-
tions checked.
 Have ports and connec-
tions checked.
 Have ports and connec-
tions checked.
It is not possible to display or
adjust the tyre size in the
basic settings menu in this
error status.
1
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
 Recharge on-board
computer battery (while
in its mount or using
USB port).
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
Code Description
440 Battery internal error
Internal software error 1
450
460 Error in USB port
490 On-board computer
internal error
500 Battery internal error
502 Fault in the lighting
503 Speed sensor error
504 Speed signal manipu-
lation detected
510 Internal sensor error
511 Battery internal error
530 Battery error
Table 40: List of on-board computer error messages
Operation
Method of resolution
1
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
1
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
 Have on-board computer
checked.
1
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
1
Check the light and its
cabling.
2
Re-start the system.
3
Contact your specialist
dealer if the problem
persists.
1
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
 Check position of spike
magnets and re-adjust if
necessary.
 Check for manipulation.
 Assistance from drive
has been reduced.
1
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
1
Re-start the system.
2
Contact your specialist
dealer if the problem
persists.
1
Switch off system.
2
Remove the battery.
3
Re-insert battery.
4
Restart electric drive
system.
5
Contact your specialist
dealer if the problem
persists.
