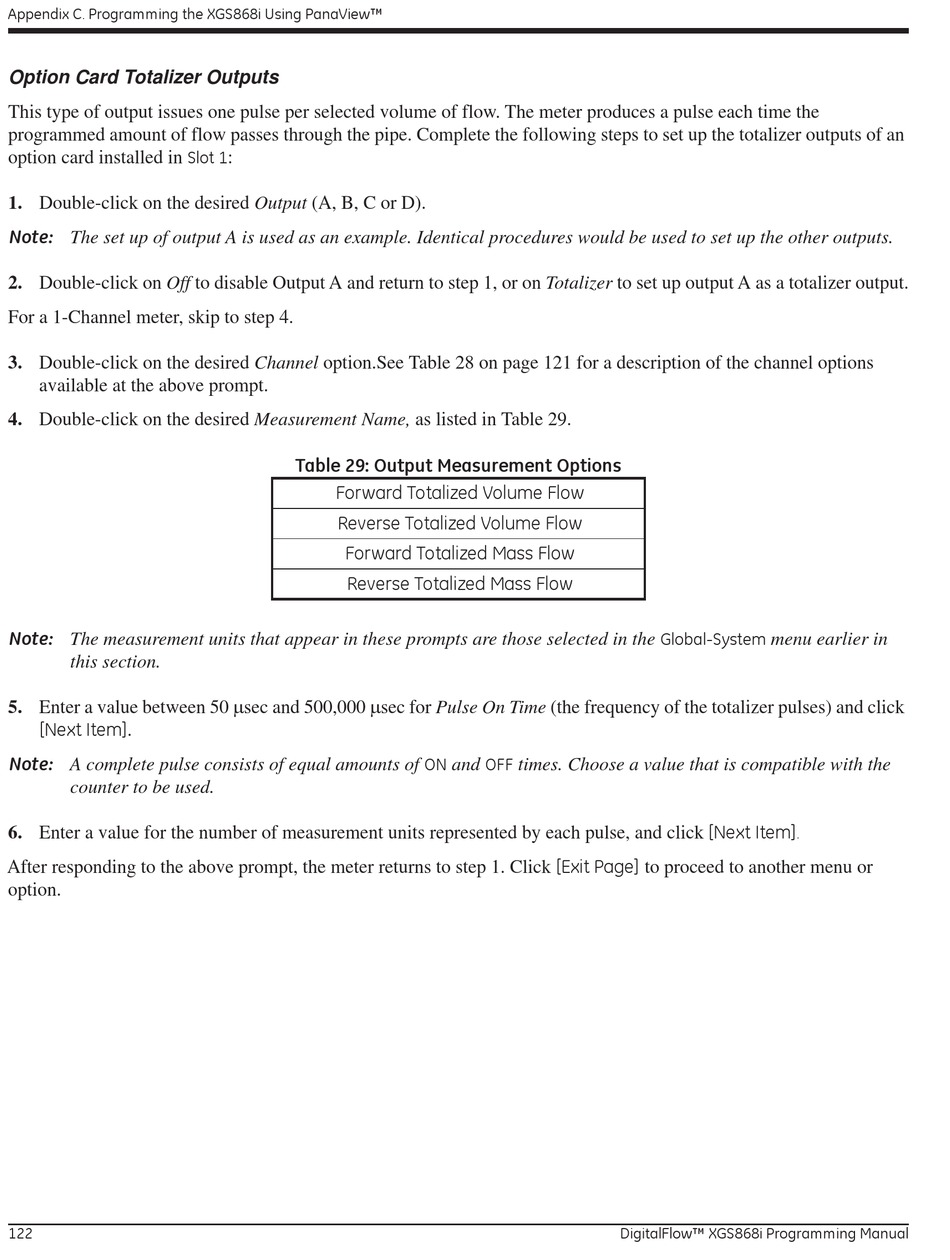

Appendix C. Programming the XGS868i Using PanaView™
Option Card Totalizer Outputs
This type of output issues one pulse per selected volume of flow. The meter produces a pulse each time the
programmed amount of flow passes through the pipe. Complete the following steps to set up the totalizer outputs of an
option card installed in
1. Double-click on the desired Output (A, B, C or D).
Note: The set up of output A is used as an example. Identical procedures would be used to set up the other outputs.
2. Double-click on Off to disable Output A and return to step 1, or on Totalizer to set up output A as a totalizer output.
For a 1-Channel meter, skip to step 4.
3. Double-click on the desired Channel option.See Table 28 on page 121 for a description of the channel options
available at the above prompt.
4. Double-click on the desired Measurement Name, as listed in Table 29.
Note: The measurement units that appear in these prompts are those selected in the
this section.
5. Enter a value between 50 sec and 500,000 sec for Pulse On Time (the frequency of the totalizer pulses) and click
[Next Item].
Note: A complete pulse consists of equal amounts of
counter to be used.
6. Enter a value for the number of measurement units represented by each pulse, and click [Next Item].
After responding to the above prompt, the meter returns to step 1. Click [Exit Page] to proceed to another menu or
option.
122
Slot 1
:
Table 29: Output Measurement Options
Forward Totalized Volume Flow
Reverse Totalized Volume Flow
Forward Totalized Mass Flow
Reverse Totalized Mass Flow
ON
OFF
and
times. Choose a value that is compatible with the
Global-System
menu earlier in
DigitalFlow™ XGS868i Programming Manual
