A) Using an FTP server via Ethernet LAN:
B) Dialing up an FTP server in the Internet:

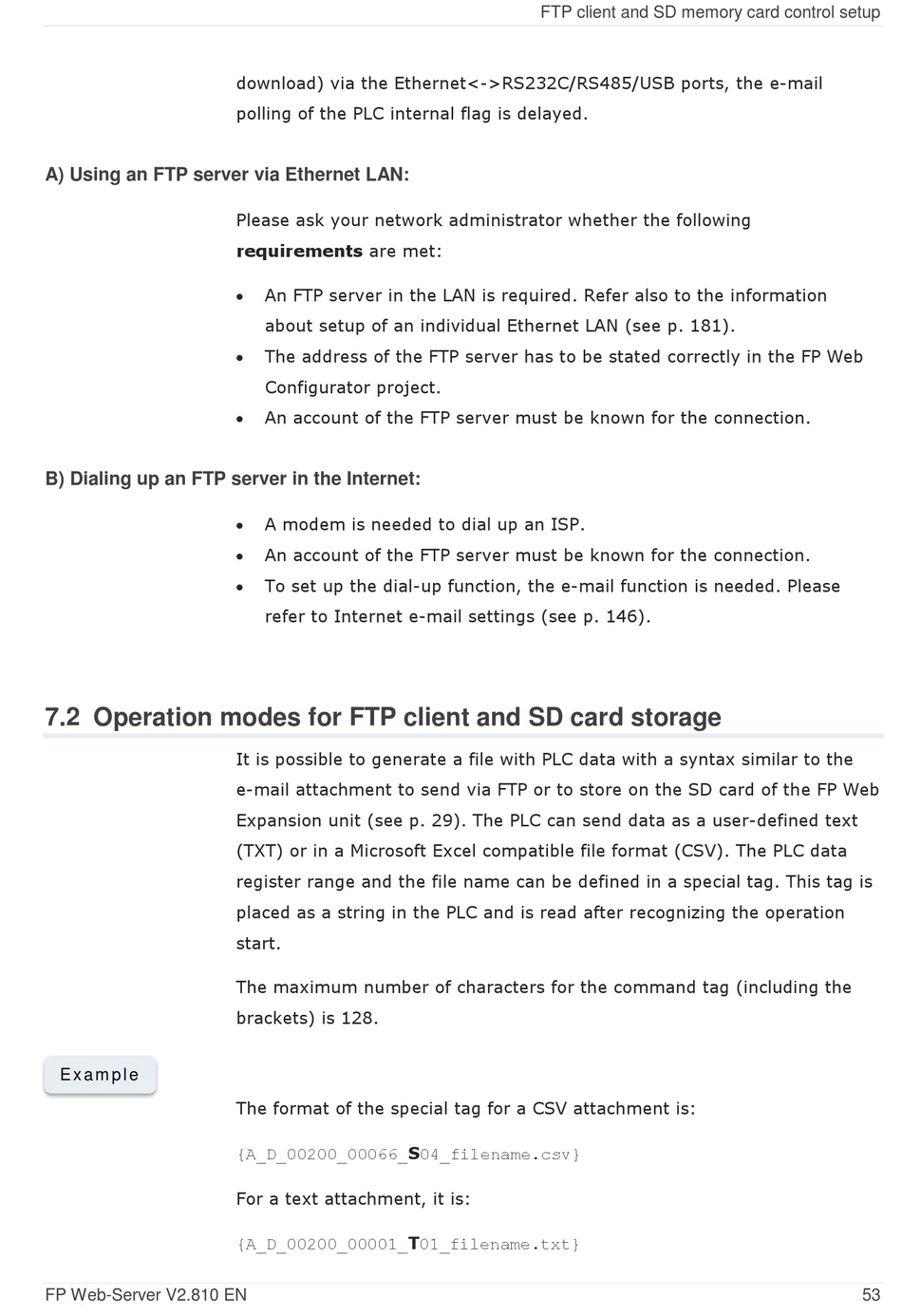

7.2 Operation modes for FTP client and SD card storage
E x a m p l e
FP Web-Server V2.810 EN
download) via the Ethernet<->RS232C/RS485/USB ports, the e-mail
polling of the PLC internal flag is delayed.
Please ask your network administrator whether the following
requirements are met:
An FTP server in the LAN is required. Refer also to the information
about setup of an individual Ethernet LAN (see p. 181).
The address of the FTP server has to be stated correctly in the FP Web
Configurator project.
An account of the FTP server must be known for the connection.
A modem is needed to dial up an ISP.
An account of the FTP server must be known for the connection.
To set up the dial-up function, the e-mail function is needed. Please
refer to Internet e-mail settings (see p. 146).
It is possible to generate a file with PLC data with a syntax similar to the
e-mail attachment to send via FTP or to store on the SD card of the FP Web
Expansion unit (see p. 29). The PLC can send data as a user-defined text
(TXT) or in a Microsoft Excel compatible file format (CSV). The PLC data
register range and the file name can be defined in a special tag. This tag is
placed as a string in the PLC and is read after recognizing the operation
start.
The maximum number of characters for the command tag (including the
brackets) is 128.
The format of the special tag for a CSV attachment is:
{A_D_00200_00066_S04_filename.csv}
For a text attachment, it is:
{A_D_00200_00001_T01_filename.txt}
FTP client and SD memory card control setup
53
