N o t e

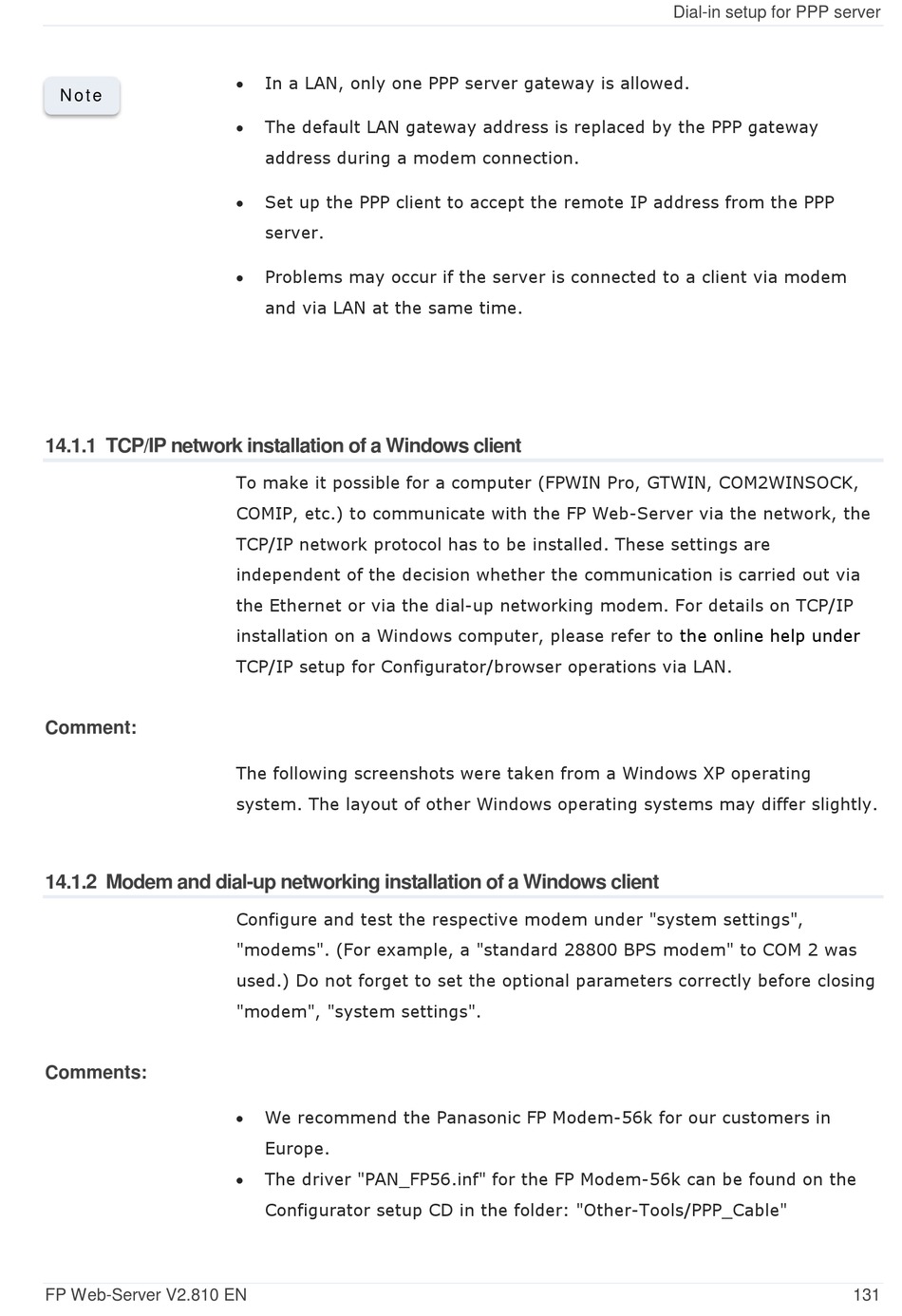

14.1.1 TCP/IP network installation of a Windows client

Comment:

14.1.2 Modem and dial-up networking installation of a Windows client

Comments:
FP Web-Server V2.810 EN
 In a LAN, only one PPP server gateway is allowed.
 The default LAN gateway address is replaced by the PPP gateway
address during a modem connection.
 Set up the PPP client to accept the remote IP address from the PPP
server.
 Problems may occur if the server is connected to a client via modem
and via LAN at the same time.
To make it possible for a computer (FPWIN Pro, GTWIN, COM2WINSOCK,
COMIP, etc.) to communicate with the FP Web-Server via the network, the
TCP/IP network protocol has to be installed. These settings are
independent of the decision whether the communication is carried out via
the Ethernet or via the dial-up networking modem. For details on TCP/IP
installation on a Windows computer, please refer to
TCP/IP setup for Configurator/browser operations via LAN.
The following screenshots were taken from a Windows XP operating
system. The layout of other Windows operating systems may differ slightly.
Configure and test the respective modem under "system settings",
"modems". (For example, a "standard 28800 BPS modem" to COM 2 was
used.) Do not forget to set the optional parameters correctly before closing
"modem", "system settings".
 We recommend the Panasonic FP Modem-56k for our customers in
Europe.
 The driver "PAN_FP56.inf" for the FP Modem-56k can be found on the
Configurator setup CD in the folder: "Other-Tools/PPP_Cable"
Dial-in setup for PPP server
the online help under
131
