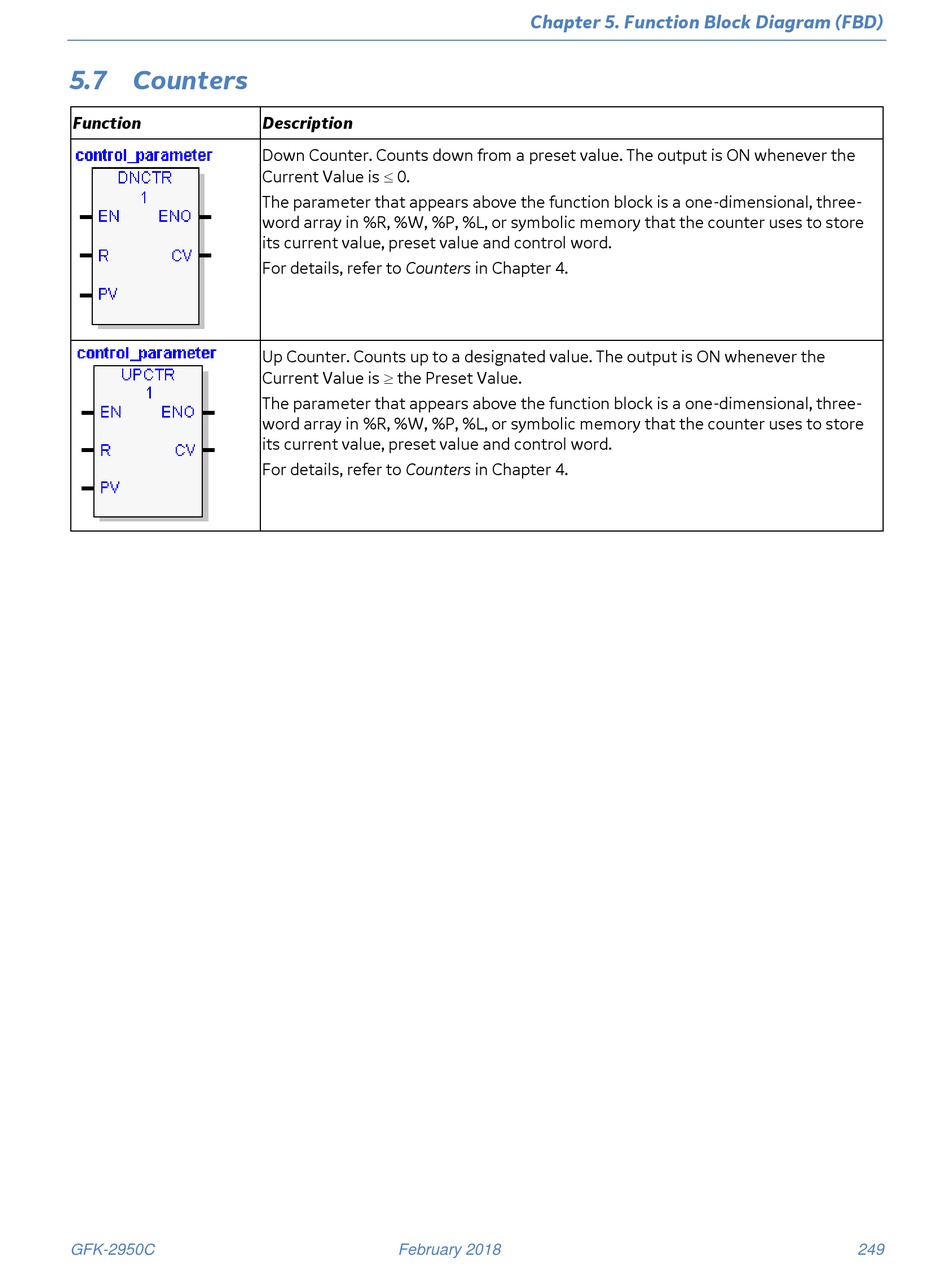

5.7 Counters

Function
GFK-2950C
Description
Down Counter. Counts down from a preset value. The output is ON whenever the
Current Value is  0.
The parameter that appears above the function block is a one-dimensional, three-
word array in %R, %W, %P, %L, or symbolic memory that the counter uses to store
its current value, preset value and control word.
For details, refer to Counters in Chapter 4.
Up Counter. Counts up to a designated value. The output is ON whenever the
Current Value is  the Preset Value.
The parameter that appears above the function block is a one-dimensional, three-
word array in %R, %W, %P, %L, or symbolic memory that the counter uses to store
its current value, preset value and control word.
For details, refer to Counters in Chapter 4.
