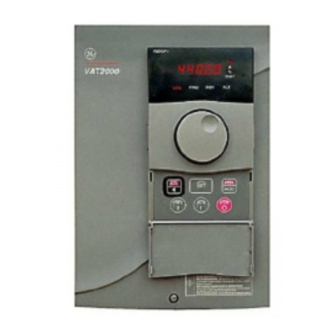

GE VAT2000 Instruction Manual

Vat2000 ac drive series u2kv23dn1 speed detection feedback

Hide thumbs Also See for VAT2000:

Download this manual

1. Read both this manual and VAT2000 Instruction Manual (ST-

2. Observe the warnings, cautions and other matters described in

3. Make sure that this manual is delivered to the final user.

4. The content of this manual can be changed without notice

PCST-3299E-R0

VAT2000 AC Drive Series

Speed Detection Feedback

INSTRUCTION MANUAL

3251) before using the U2KV23DN1, and store in a safe place for

reference.

this manual.

GE Power Controls

U2KV23DN1

NOTICE

Page 1 U2KV23DN1 Speed Detection Feedback INSTRUCTION MANUAL NOTICE 1. Read both this manual and VAT2000 Instruction Manual (ST- 3251) before using the U2KV23DN1, and store in a safe place for reference. 2. Observe the warnings, cautions and other matters described in this manual.
Page 2 U2KV23DN1 Instruction Manual 1. Specifications This manual is for Speed detecting option PCB U2KV23DN1.( Card NPQF-DN09). The option allows the use of a standard complimentary encoder for speed detection feedback. Encoder specifications: Item Specifications Supply voltage 12VDC±1.2V Output method Complimentary Output pulse voltage VH(High revel pulse voltage):above 8.0V , VL(Low revel pulse voltage):below 1.0V at the terminal on V23-DN1.
Page 3 U2KV23DN1 Instruction Manual 3. Wiring An example of the encoder connection is given below. Suitable cable for encoder 0.75mm (50m or less), 6-core twisted shield strands Encoder U2KV23DN1(NPQFDN09) -1,2[12KP] DC12V Max.150mA -3[0KP] (Refer Note2 on page 2) A phase pulse -7[PA] 2.2KΩ...
