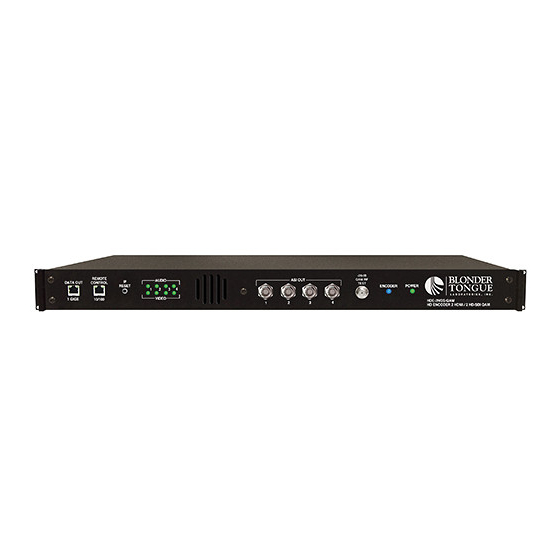

User Manuals: Blonder tongue HDE-2H/2S-QAM Encoder

User Manuals: Blonder tongue HDE-2H/2S-QAM Encoder

Manuals and User Guides for Blonder tongue HDE-2H/2S-QAM Encoder. We have 1 Blonder tongue HDE-2H/2S-QAM Encoder manual available for free PDF download: Instruction Manual

Blonder tongue HDE-2H/2S-QAM Instruction Manual

Blonder tongue HDE-2H/2S-QAM Instruction Manual (40 pages)

MPEG-2 HD

Brand: Blonder tongue | Category: Encoder | Size: 4 MB

Table of Contents

Table of Contents
3
Section 1 - General & Safety Instructions
4
Section 2 - Product Summary
6
Revision History & Reason
6
Product Application & Description
6
Product Specification
9
SECTION 3 - INSTALLATION & Power-UP
10
Power-Up
10
Unpacking
10
Installation
10
SECTION 4 - COMMUNICATING with the UNIT
11
SECTION 5 - CONFIGURING the UNIT
12
Accessing the Unit Via the Web Browser
12
Main > Status" Screen
13
Main > Program" Screen
14
Main > Video" Screen
15
Main > Audio" Screen
16
Main > Ts Map" Screen
18
MAIN > TS Config" SCREEN
20
Main > Ip" Screen
23
Main > Qam" Screen
24
Main > Output" Screen
26
MAIN > REFRESH" Tab
27
Network" Screen
28
Admin.html" Hidden Screen
30
Time" Screen
33
Event Log" Screen
34
Appendix A: Updating the Software Remotely
35
Appendix B: Viewing the IP Output on a VLC Media Player
38
