- Page 1 TOP AND CONSOLE PARTS 29" ELECTRIC DRYER For Model: MED5900TW1 (White) Part No. W10167216 REv. A 9−07 Litho in U.S.A. (LT)

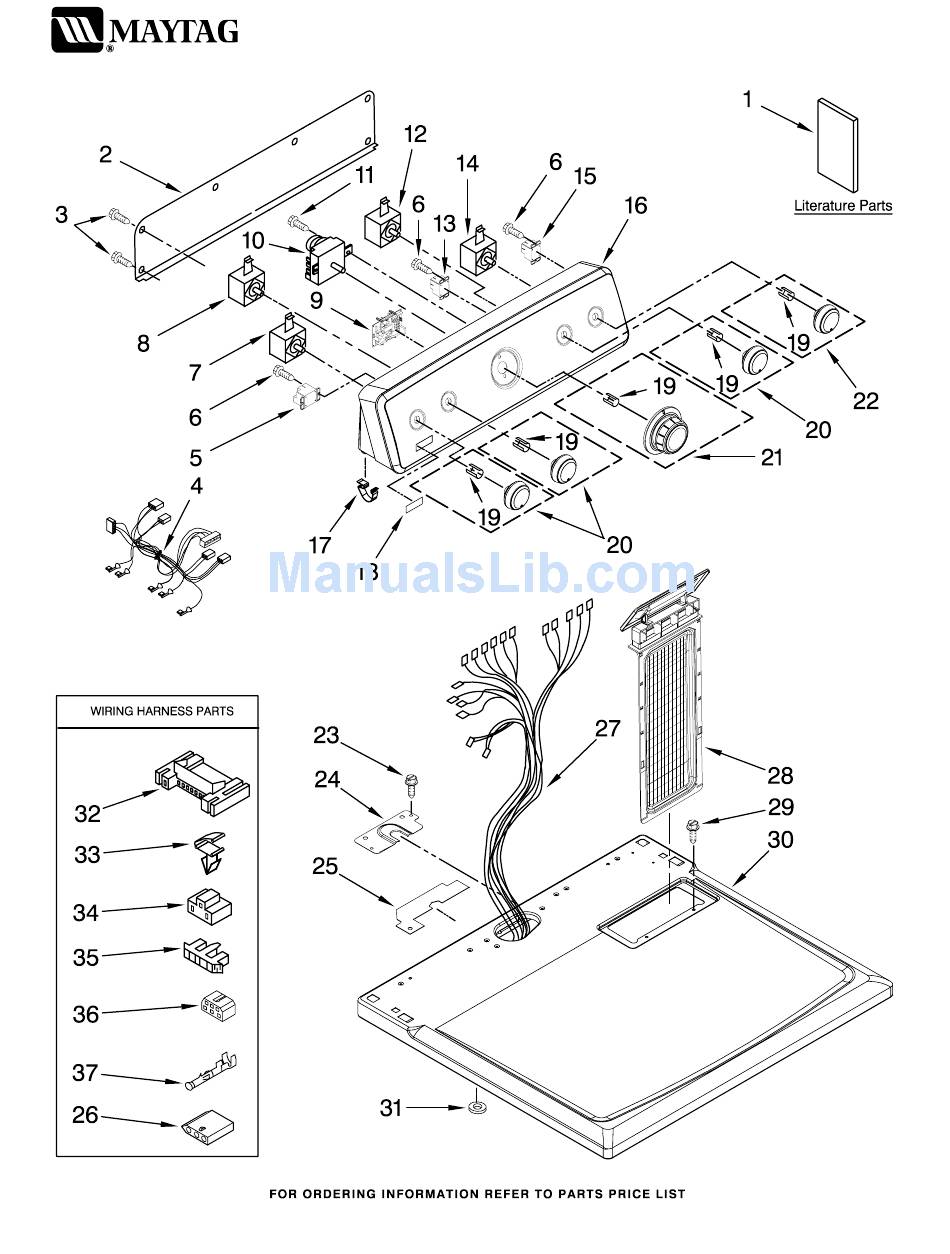

- Page 2 TOP AND CONSOLE PARTS For Model: MED5900TW1 (White) Illus. Part DESCRIPTION Literature Parts W10088770 Use & Care Guide W10089172 Dryer Cycle Sheet W10112987 Tech Sheet 2 W10112577 Panel, Console Rear 693995 Screw, 8−18 x 3/8 4 W10108400 Harness, Wiring Center Control 3405281 Relay, Motor 3388228 Screw,8−18 x 11/32...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: MED5900TW1 (White) W10167216... - Page 4 Front Panel 98669 Locator, Top (2) 3406107 Door Switch Assembly 697773 Screw, 6−20 x 7/8 18776 Lock, Front Top (2) CABINET PARTS For Model: MED5900TW1 (White) Illus. Part DESCRIPTION 3403444 Panel, Front 98234 Clip, Ground 685203 Clip, Felt Pad (3) 3406129 Seal &...
- Page 5 BULKHEAD PARTS For Model: MED5900TW1 (White) W10167216...
- Page 6 BULKHEAD PARTS For Model: MED5900TW1 (White) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 487909 Screw, 8−15 x 1/2 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 696302 Shield, Exhaust 3976479 Pad−Sensor 8577274 Thermister 3977393 Thermal, Cut−Off (Includes Illus.
- Page 7 OPTIONAL PARTS (NOT INCLUDED) W10167216 For Model: MED5900TW1 (White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 3406839 Dry Rack 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.)
