Red Witch SYNTHOTRON Manual

The SYNTHOTRON SYNTHESIZER FILTER SAMPLE HOLD!
The device you are now holding in your hands offers several unique features, which cannot be found anywhere else.
I strongly recommend that you read on to discover the full potential of your new pedal!
Such hours have I labored.... such blood sweat and tears spilt in the creation of this small, wonderful object that
you now hold in your hot little hands. The Synthotron is an all analog (100% pure analog) synthesizer, envelope filter/ sample
hold pedal. The Synthesizer section and the Filter section can be used independently or simultaneously – in essence two
Read on, dear friend, for details of the splendid dials, switches and adjustors that control this temple of Synthesizian Glory!
syn
footswitch
filter
footswitch
Simultaneously ..........When both Synthesizer and Filter sections are engaged the LED will glow a beautiful, mesmerizing Purple!
Controls for the Synth section of the pedal are found in the Red, Orange and Light Blue boxes.

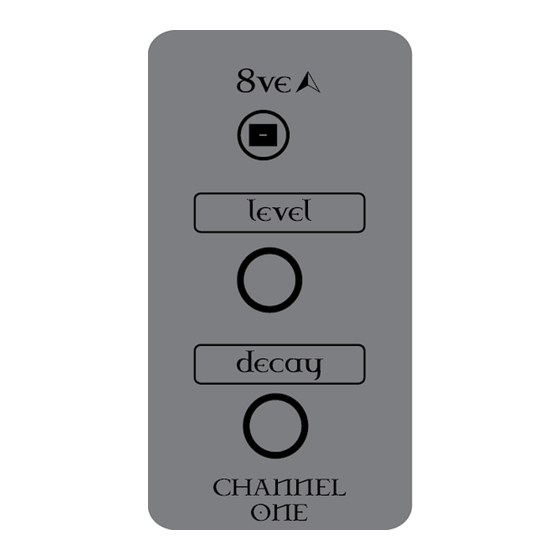

Red Box - the three controls in the Red Box control the first oscillator
Red 8ve Toggle - This determines the pitch of the oscillator note:
Red "Level" - This sets the volume level of the Red oscillator
Red "Decay" - This determines the decay time of the Red oscillator. Counter clockwise for zero decay (staccato) fully
clockwise for a long decay time.
Orange Box - the three controls in the Orange Box control the second oscillator
Orange 8ve Toggle - This determines the pitch of the oscillator note: toggle up
Orange "Level" - This sets the volume level of the Orange oscillator
Orange "Decay" - This determines the decay time of the Orange oscillator. Counter clockwise for zero decay (staccato) fully
clockwise for a long decay time.
Light Blue Box - Amplitude modulation controls and dry guitar signal level.
"Trem" toggle - turns amplitude modulation on or off. Up = tremolo off. Down = tremolo on.
"Velocity" - Sets the speed of the tremolo
"Dry" - sets the clean, unaffected dry guitar signal – good to blend some of this in with the oscillator voices for
enhanced clarity.
My heartiest congratulations to you for purchasing a Red Witch SYNTHOTRON!
effects in one box – the Synth comes first and the Filter last.
– this turns on the synthesizer section of the pedal – the LED will glow Blue when only the Synthesizer
is activated. It is True bypass.
– this turns on the filter section of the pedal – the LED will glow Red when only the Synthesizer is
activated. It is True bypass.
Engaging the "SYN" footswitch accesses these controls.
The Controls
Synth Section Controls
toggle up
toggle down
toggle down
= 1 octave above the note being played
= same pitch as the note being played
= 2 octaves below the note being played
= 1 octave below the note being played
