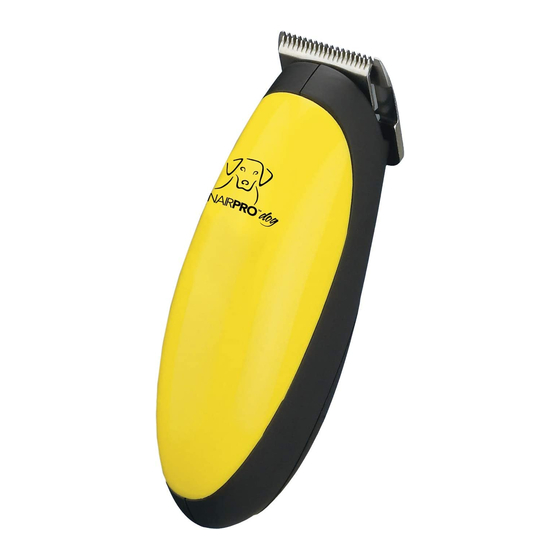

Conair Palm-Pro User Manual

Palm-Pro
Micro Pet Trimmer

Directions for use:

1) Prior to turning trimmer on, please be sure that battery
has been properly installed.
a) Slide battery compartment cover off
b) Insert one AA alkaline battery into trimmer
c) Replace battery cover
2) Turn trimmer on by pushing slide switch on bottom of unit forward to ON
position. Please be sure to turn
trimmer off immediately after use to preserve battery life.
3) There are two trimmer comb attachments for either a medium or a long
cut. Simply place one side of attachment over the front of the blades and
snap the other side in place. To remove, pull tab away from one side.
Please be sure that the attachments are firmly in place before turning the
trimmer on.

To replace comb and blade assembly

1) Remove two screws, making sure that you maintain pressure
against the large fixed blade.
2) Remove comb and blade assembly as a set and
discard, making sure that you do not remove the plastic and
spring drive assembly.

To assemble new comb and blade set

1) Remove from package – Keep as a set; do not
disassemble
2) Attach set to plastic drive by inserting raised portion of plastic
drive assembly into the large slot of the cutter, making sure you
do not disengage the drive from the spring. Apply pressure to
hold in place.
3) With pressure applied on the large comb, reassemble two
screws.

Oiling blades

For best results, put a drop of lubricating oil on the blade approximately
once a month. Motor bearings are permanently lubricated – do not
attempt to oil.
Notice – do not over-oil:
This trimmer requires very little oiling. When it is necessary to oil, turn
trimmer on, hold the unit with blades facing DOWN, and squeeze one drop
of oil onto blades. Wipe off excess with soft cloth.
