Summary of Contents for Ikegami MKC-300HD

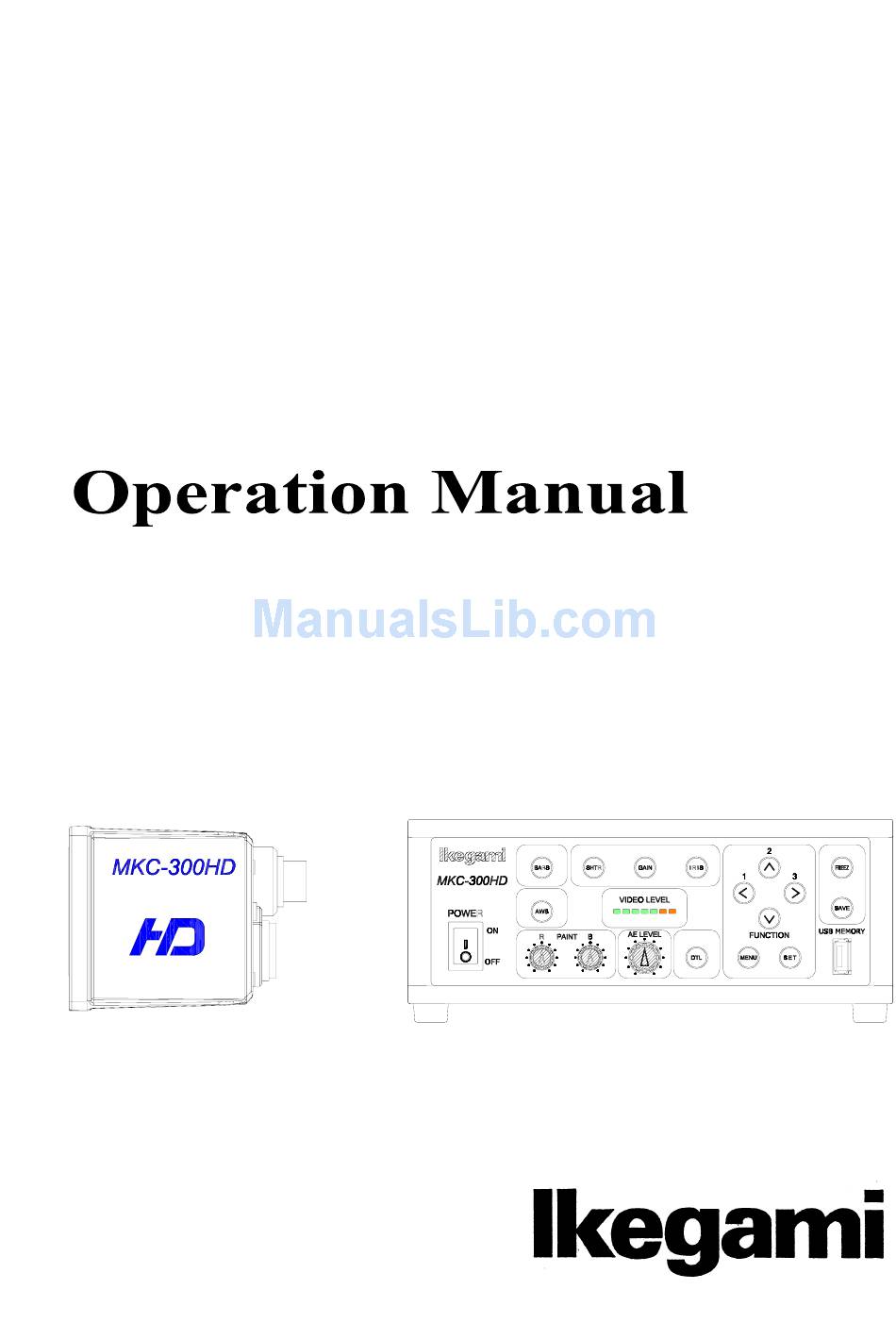

  • Page 1 MKC-300HD Digital Process Compact 3CMOS Color Camera...
  • Page 2 The copyright of the software made for this product is in Ikegami Tsushinki Co., Ltd. It forbids to reproduction, a change, and so on about DN-27466...
  • Page 3: Safety Precautions

    If the unit is used as it is, a fire or electric shock The copyright of the software made for this may be caused. Contact the dealer or sales product is in Ikegami Tsushinki Co., Ltd. representative. It forbids to reproduction, a change, and so on...
  • Page 4 The MKC-300HD is not AP・APG equipment. humidifier. ・As this unit is heavy (over 10Kg), carry it by 2 or more The BATTERY for BT1 in MKC-300HD, that should be persons. If it is carried by one person, it may turn down or drop,...
  • Page 5 Guidance and manufacturer's declaration - electromagnetic emissions The Model MKC-300HD is intended for use in the electromagnetic environment specified below. The customer or the user of the Model MKC-300HD should assure that it is used in such an environment. Emissions test...
  • Page 6 Guidance and manufacturer's declaration - electromagnetic emissions The Model MKC-300HD is intended for use in the electromagnetic environment specified below. The customer or the user of the Model MKC-300HD should assure that it is used in such an environment. Immunity test...
  • Page 7: Table Of Contents

    CONTENTS 2. Name and Function of Each Parts ................6 ■ Camera Head......................6 ■ Front Panel of Camera Control Unit (CCU) ............. 5 ■ Rear Panel of Camera Control Unit (CCU)............... 9 3. Operation ........................11 ■ Connection ........................ 11 ■...
  • Page 8: 2.Name And Function Of Each Parts

    2.Name and Function of Each Parts ■ Camera Head Rear View Side View ②Lens Connector 1/3” C-mount ① ③Camera Connector ① 1/3” C-mount Mount for connecting the lens and microscope adapter. ② Lens Connector Used to connect the Iris cable of the special microscope adapter and 1/3” C-mount lens.
  • Page 9: Front Panel Of Camera Control Unit (Ccu)

    ○ ① Power Switch To power on/off MKC-300HD. When this switch is turned on, the logo of "Ikegami" lights up blue. Pressing the top of the switch turns on power, and pressing the bottom of the switch turns off power. When this switch is turned on, the picture is output in the state where power was last turned off.
  • Page 10 held. ② Auto White Balance Switch To execute Auto White Balance. Use this switch, when the camera is not used for a certain time, color balance is not proper, and the light source changes. To control the white balance, project a white photographic object and adjust the iris just before LEVEL INDICATOR lights up red.
  • Page 11 ⑧ Freeze Picture Switch By pressing the switch, the video images can be captured as a still picture. ⑨ Picture Save Switch Press the switch to acquire the still picture from the camera into USB storage connected to 17USB connector. The picture quality is 1920x1080 pixels at Bitmap format (non-compressed) or 1920x1080 pixels at JPEG format.
  • Page 12 ⑯ Arrow Key To select a scene file among 1, 2, 3 and Function. The scene file setting can be fixed through the menu. When selecting an item you want to set on the menu, move cursor by clicking Arrow Keys , and changing the contents of the item you want to set, choose the value you have set by clicking Arrow Keys ⑰...
  • Page 13: Rear Panel Of Camera Control Unit (Ccu)

    ■ Rear Panel of Camera Control Unit (CCU) VBS Output Connector ○ S-VIDEO Output Connector ○ USB Connector ○ SD RGB Output Connector ○ DVI-D Output Connector ○ Foot Switch Connector ○ Genlock Input Connector ○ HD RGB Output Connector ○...
  • Page 14 ④ HD RGB Output Connector Output HD RGB video signal. YPbPr video signal output is also available by changing the setting on the menu. Refer to “Video Setting” (Page 19) for further detailed operations. Connect a RGB Video Cable (Option) to a RGB input interfaced monitor. ⑤...
  • Page 15: 3.Operation

    ■ Connection DVI interfaced equipment DVD recorder DVI-D cable AC outlet S-VIDEO cable MKC-300HD CCU Rear Panel Camera cable Coaxial cable RGB cable Foot Switch Monitor * Terminate the output from RGB OUT and VIDEO OUT at 75ohms on the receiver side.
  • Page 16: Electrical Connection

    In case of fast moving object on a video image, it may appear distortions. Note1 When power is turned off in the state of still screen picture, that state will not be held even if power is turned on again, and MKC-300HD is set to the normal shooting state. DN-27466...
  • Page 17: Setting Auto White Balance

    Usually, MKC-300HD can be operated immediately after turning the power switch on. Therefore, any other operations are unnecessary. However, when using MKC-300HD for the first time, or when the light source has been changed, Auto White Balance setting is required.
  • Page 18: 4. Menu Operation

    4. Menu Operation MKC-300HD has various useful and practical functions. The user can select and set these functions on the menu. The basic operation is as follows. ■ Operation Method Pressing the ○ Menu switch (ref. page 5) on the front panel of CCU displays a menu on the monitoring screen, on which various camera functions can be set.
  • Page 19: Video Adjust

    ■ Video Adjust Used to adjust the level of black, red and blue of video picture. Video Adjust QUIT Master Pedestal Gain Offset Red Blue [Master Pedestal] Used to change the master pedestal value by Arrow Keys . It is not used during ordinary operation.
  • Page 20: Ae Mode

    ■ AE Mode Used to adjust the electronic shutter and automatic sensitivity setting. AE Mode QUIT Manual Shutter AE Level Set AE Speed Middle AE Sensitivity Peak Ratio Set Area Select Middle AGC Max Gain Normal Gain setting -3dB Auto Shutter Limit 1/10000 [Manual Shutter]...
  • Page 21: Dtl Set

    [Area Select] Used to select a photometric area from among SP Narrow, Narrow, Middle, Wide and Full. [AGC Max Gain] To choose maximum Gain among +3dB, +6dB, +9dB, +12dB, +15dB and +18dB while Automatic Gain Control is operative. [Normal Gain setting] To select Gain level while Automatic Gain Control is not activate.
  • Page 22: Video Setting

    ■ Video Setting To select display method for the still picture. Video Setting QUIT Format 1080i/59.94 Aspect 16:9 Analog Output YPbPr Select the video signal format among [Format] 1080i/59.94, 1080i/50. 720P/59.94 720P/50. Select Picture Aspect ratio from 16:9 and 4:3. [Aspect]...
  • Page 23: Auto Adjust

    ■ Auto Adjust Used for automatic black level control. Auto Adjust QUIT Auto Black Balance. Ready Auto White Shade Ready [Auto Black Balance] Used for Automatic Black Level control. If this adjustment is not performed with the lens are fully closed, it will adversely affect the picture output of the camera.
  • Page 24: Scene File

    ■ Scene File Used to read and write a scene file, and also reset to the factory default. Scene File QUIT Store Scene 1 Ready Store Scene 2 Ready Store Scene 3 Ready Store Scene 4 Ready Load Factory Default. Ready Auto Store [Store Scene1]...
  • Page 25: Foot Switch Mode

    ■ Foot Switch Mode Used to select the operation of the foot switch to be connected. Foot Switch Mode QUIT Foot Switch 1 Save Foot Switch 2 Scene File Foot Switch 3 Freeze Foot Switch 4 Freeze [Foot Switch 1] Select a function of the black foot switch from among Screen control (Freeze), Save (Still picture store), Scene File, Fluorescein, Frip,...
  • Page 26: Inverse

    ■ Inverse To select the video image inverse (Top and Down, Right and Left)。 Inverse QUIT Horizontal Vertical Select ON to inverse the video image Right to [Horizontal] Left. Select ON to inverse the video image Bottom to [Vertical] Top. ■...
  • Page 27: Date/Time Adjust

    ■ Date/Time Adjust To set Date and Time. Date/Time Adjust QUIT Year 2009 Mouth Hour Minute Adjust Ready When Date and Time have been changed, move to “Adjust” and select “Start” before quit the menu. ■ DVI Setting To set DVI output signal format. DVI Setting QUIT Format...
  • Page 28: Down Converter Setting

    ■ Down Converter setting To set analogue video signal mode of Down Converter output. Down Converter setting QUIT Format Side Cut Analog Output To set analogue video format from among Side [Format] Cut size, Letter Box size and Squeeze size. [Analog Output]...
  • Page 29: Version Info

    ■ Version Info To display the software version of this camera. Version Info QUIT *.*.* FPGA1 *.*.* FPGA2 *.*.* FPGA3 *.*.* CPLD1 *.*.* HEAD *.*.* PANEL *.*.* 5.Specification ■ Ratings Optics RGB Prism method Sensor Scanning System 1125 / 59.94Hz Progressive Scan Image Pickup Device 1/3-inch 2,07M pixels CMOS x 3 Effective Pixels...
  • Page 30: Performance

    Input Video Signal Remote Input 4contact [D-Sub 9-pin Female] 1 Line (Select from Still Image, Capture, Scene File and Image Flip & Turn) Interface USB2.0 (Still Image Capture) 2 Lines Electrical Shutter Speed 1/60 to 1/10000 (Rolling Shutter) Camera Cable Length 5m+10m...
  • Page 31 Auto Function Auto White Balance Auto Gain Control Auto Shutter Iris Auto Iris Control Auto White Shading Detail Enhancement Skin Tone Detail On/Off (Skin Tone Detail Enhancement) Slow Shutter Up to 1/4 seconds slow shutter speed available Paint R-chanel / B-chanel (Level Adjustable) AE Level Exposure Level Adjustable Video Level Indicator...
  • Page 32: 6.External Appearance

    6.External Appearance ■ Camera Head Unit: mm ■ CCU DN-27466...
  • Page 33 DN-27466...
  • Page 34 Operation Manual First Issue March 2010 Published by Ikegami Tsushinki Co., Ltd. ■ It forbids to copy it without notice and to reproduce it about a part of this manual or all as for any method as well without taking the assent of Ikegami Tsushinki Co., Ltd.
  • Page 35 5-6-16, Ikegami, Ohta-ku, Tokyo, 146 Japan Phone: 03-5700-1111, Fax: 03-5700-1137 ■ Ikegami Electronics (U.S.A.), Inc. 37 Brook Avenue, Maywood, New Jersey 07607, U.S.A. Phone: (201)368-9171, Fax: (201)569-1626 ■ Ikegami Electronics (Europe) GmbH Ikegami strasse 1, 41460 Neuss 1, F.R Germany Phone: (02131)123-0, Fax: 02131)102820 DN-27466...
