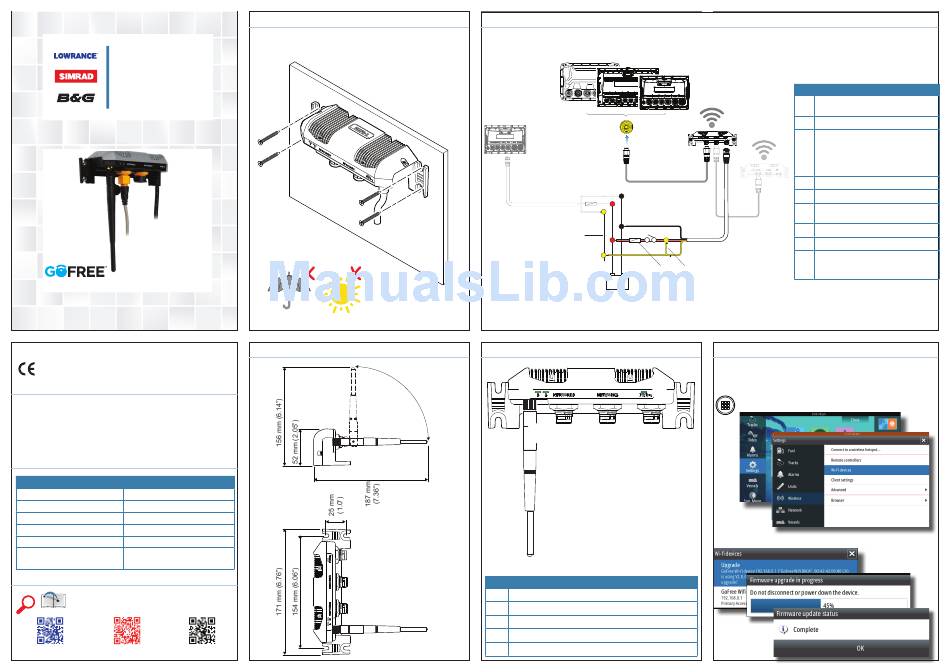

WIFI-1
Installation Guide
English
www.bandg.com | www.simrad-yachting.com | www.lowrance.com
*988-10401-003*
Compliance statements
This device complies with Part 15 of the FCC Rules and with Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Identifier: RAYGOFREEWIFI
Specifications
WIFI-1 features
Marinised construction
IPX5
Wireless standards
802.11 b/g
Ethernet network ports
2
Automatic configuration
Plug-n-play
Power supply
12 V DC, 200 mA
WPA-PSK, WPA2, WPE 64/128 bit
Supported hotspot security
encryption , TKIP encryption
References
For a list of supported features or to download
the latest software for your MFD please
www.lowrance.com/gofree
www.simrad-yachting.com/gofree
www.bandg.com/gofree
Installing
Dimensional drawing
visit::
Wiring
1
9
7
+ _
8
Layout
4
5
1
2
2
3
Key
Description
1
Antenna
2
Ethernet ports x 2
3
Power connector
4
Ethernet LEDs Green: port is active
5
Power LED Red: power on
Key
Description
Multifunction display, SonarHub™,
1
StructureScan™ or other WIFI-1
2
2
WIFI-1
Optional second WIFI-1 to use in Access
Point mode when the primary WIFI-1
3
3
is in Client mode. Maintains the ability
of mobile devices to connect to the
4
navigation network
4
Ethernet cable
5
Power cable
4
Remote power on: WIFI-1 will turn on
6
when power is applied
5
7
Fuse or breaker
8
12 V DC
Remote power on: WIFI-1 will turn on
9
6
when the MFD is turned on (MFD needs
to be set to power on master)
Setup
¼ Note:
Compatible MFDs are required to have software that can support
the GoFree Shop features. Please refer to the support page of the MFD
website to upgrade the MFD. The MFD will then check the firmware
version of the WIFI-1 module and will prompt an upgrade if required.
Select HOME or PAGES key
Upgrade the WIFI-1 software if prompted
