Summary of Contents for Solaris SunPump MACHRW010W

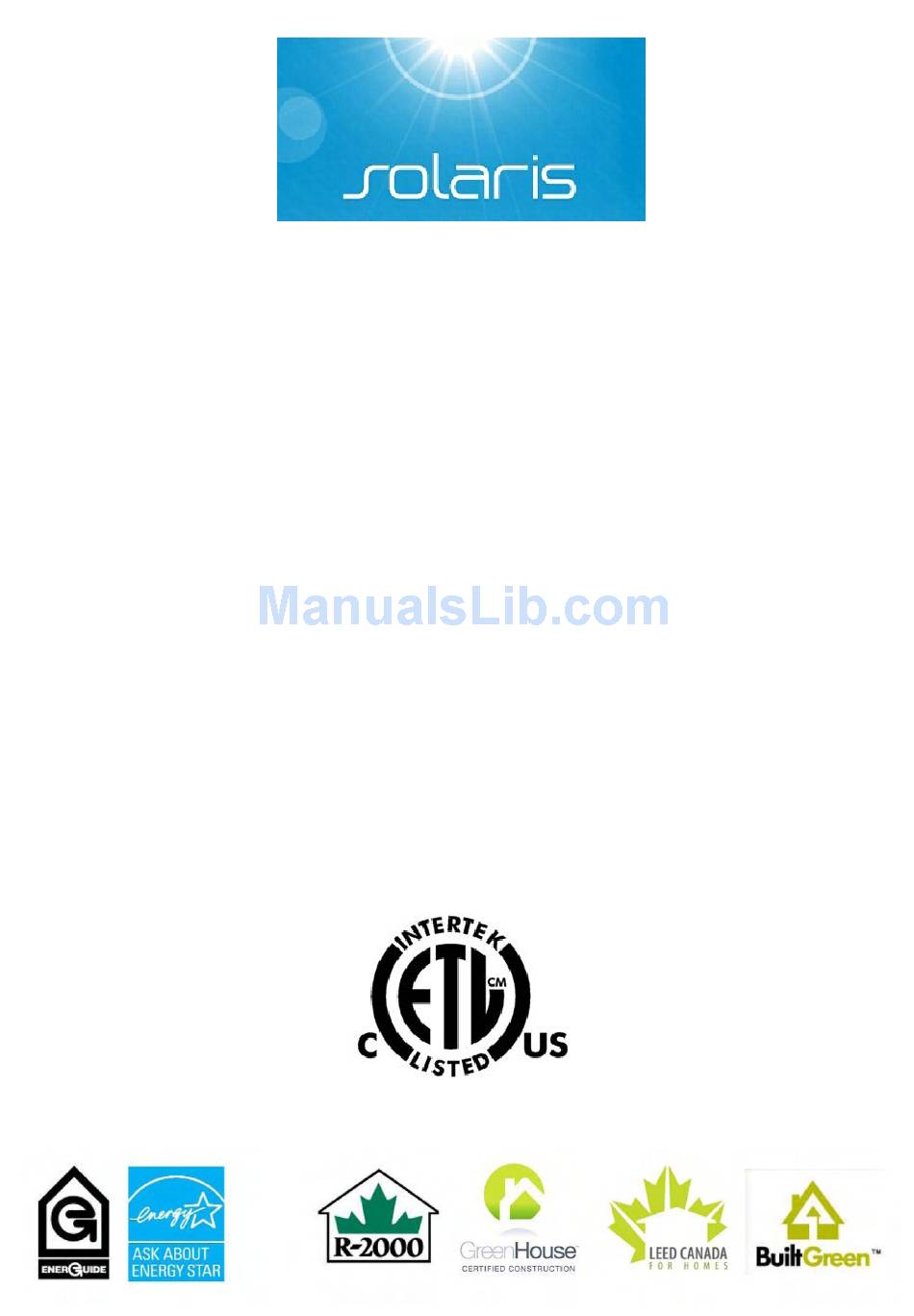

- Page 1 Pump Pump INSTALLATION & INSTRUCTION MANUAL DC INVERTER AIR TO WATER HEAT PUMP...
- Page 3 Notice 1.1 In order to use this product better and safer, please read this instruction carefully before install and operate it. Please pay attention to all the notice in operation and maintenance. Save all manuals and documentation for future reference. 1.2 Air to water pump is a special appliance.
-
Page 4: Table Of Contents
CONTENTS I.Specification................... 1. Model nomenclature..............2. Parameters of air to water heat pump........... 3. Product appearance and installation dimension......II.Installation..................1. Unit installation position............. 2. The refrigerant piping connection for split type unit .... -
Page 5: I.specification
1. Model Nomenclature Indoor unit model nomenclature MA CHR W S *** WA / PS(B 01 D) Source medium D:With electrical heating MA: Air source (Without electrical heating omitted) MW: Ground source 01:One plate heat exchanger 02:Two plate heat exchangers B: DC Inverter Function of the unit E: EVI... -
Page 6: Parameters Of Air To Water Heat Pump
2.Parameters of air to water heat pump INDOOR UNIT MACHRW 030W/(B01) 030W/(B01) 030W/(B01) Rated Cooling Capacity BTU/h 8600 19200 25600 Rated Input Power(Cooling) 0.78 1.56 2.34 Rated Input Current(Cooling) 7.25 10.7 10.5 Rated Heating Capacity BTU/h 12000 23900 35800 4.15 4.15 4.15 Rated Input Power(Heating) -
Page 7: Product Appearance And Installation Dimension
3. Product appearance and installation dimension 3.1Dimension of indoor unit Units: mm MACHRW010W/(B01) MODEL MACHRW020W/(B01D) Size MACHRW030W/(B01D) 3.2 Dimension of outdoor unit Units: mm MODEL MAFP020A Size Units: mm MODEL MAFP040A Size Units: mm MODEL MAFP060A Size... -
Page 8: Ii.installation
II. Installation 1. unit installation position The pretty high condensation temperature (cooling) and pretty low evaporation temperature (heating) will affect the operation of outdoor unit. To achieve maximum efficiency, please select the installation position under below regulations: To avoid ventilation short, the outdoor unit discharged air should not return when installation. Please keep enough space around the outdoor unit for repair. - Page 9 The unit refrigerant pipe connecting A: According to the indoor and outdoor unit fixed Connecting pipe location and location of holes through the wall, Copper pipe choose a good direction lead to pipe. Then begin Copper pipe the indoor pipe connection work. Flare nut B: Use a wrench to remove the adapter Adapter...
- Page 10 Air discharge (by vacuum pump) If the system large or after maintenance of outdoor system, should use the vacuum pump discharge way to empty the air and water within the system. As the following steps: As the picture show, connect the vacuum pump with the pressure gauge, and then connect the Outdoor unit vacuumed connecting pipe with the needle valve...
-
Page 11: Installation Of Terminal Equipment
3. Installation of terminal equipment 3.1.Indoor terminal equipment installation (such as: fan coil, radiator heater or floor heating), the equipment should be installed in accordance with relevant regulatory requirements. 3.2.In accordance with the requirements of engineering design drawings, installation and construction. -
Page 12: Installation Of The Temp Detector
Note: 1) Tubing pipeline should be separate test pressure, must not test with hot water unit or tanks. 2) The Water system allows working pressure range: 0.2-0.7 MPa. 3) The Water system allows working temperature range: 5-60 4) Water can drain from the pressure relief device drainage pipe, and the piope keep open to atmosphere. -
Page 13: Trial Operation
6.3 Caution of Ground The internal motor protector does not protect the compressor against all possible conditions Please be sure that the system utilizes the ground connection when installed in the field. 6.4 Warning: To avoid fire, electric shock and other accidents, keep in mind about these tips: A: Only use power supply voltage indicated on the label, if you do not know the family of voltage, contact the dealer or local power company. -
Page 14: Iii.use
III. USE Wire controller device installation The remote controller is designed and employed standard electrical box dimensions(86*86, fixed hole distance 60mm). The electrical box and three core can be built in the wall before decoration, which makes the interior decoration more perfect. The illustration shows as below: Illustration 1 Illustration 2 Remove the top covering leftwards to disengage... -
Page 15: Use Of Wire Controller
3. Use of wire controller Keyboard locking / unlocking operation Without operation for the controller in 30 seconds, The icon will display on wire controller. It mean that keyboard are lock. And press button for 3 second. Keyboard are unlock. 3.2 Turn on/turn off the unit Under standby status ,press the button turn on the unit, the operation mode icon display on the... - Page 16 Under the hot water & air condition mode, press button and button, can modify the set temperature of the current operation mode. If the unit is running hot water mode, and you want to modify the set temperature of water inlet(heating or cooling), you can follow the steps below. For example, wire controller display hot water mode &...
-
Page 17: Parameters Setting
NOTE : Every time manually turned on or turn off, it will clear all timer settings. Only set Only set unit timer on. unit timer off. 3.8. Checking of state parameter Press button at the same time to enter the state parameter interface. Then, press button to check the state parameters. - Page 18 Range Means Number Default Enter the defrost status setting of coil temperature -20 ~10 Exit the defrost status setting of coil temperature 5 ~45 Heating defrost cycle setting 25min~70min 45min 8min The maximum time of defrost status 2min~20min The compensation of hot water tank temperature -5 ~5 The compensation of water inlet and outlet temperature -5 ~5...
-
Page 19: Iv.installation Sketch
IV.Installation sketch IV.Installation sketch 1.Hot water side water system installation drawing Unit electric box Three way valve Water cycle Out door fan Power input signal and power output pump output output 208~230V1PH/50Hz 208~230V1PH/50Hz 208~230V1PH/50Hz (208~230V1PH/50Hz) L1 L2 Wire controller A:Open type tank installation drawing Cold water inlet Power (220V ~) -
Page 20: Air Condition/Floor Heating Water System Installation Drawing
2.Air condition /floor heating side water system installation drawing Unit electric box Three way valve Water cycle Out door fan Power input signal and power output pump output output 208~230V1PH/50Hz 208~230V1PH/50Hz 208~230V1PH/50Hz (208~230V1PH/50Hz) L1 L2 Wire controller 220V/50HZ SW1(Heating/coolling turn on/turn off switch) close circuit :turn on open circuit: turn off 220V/50HZ... -
Page 21: Air Condition/Floor Heating And Hot Water Side Water System Installation Drawing
5.4.Hot water side and floor heating side system installation drawing by three way valve Unit electric box Three way valve Water cycle Out door fan Power input signal and power output pump output output 208~230V1PH/50Hz 208~230V1PH/50Hz 208~230V1PH/50Hz (208~230V1PH/50Hz) L1 L2 Wire controller Note power on : port... -
Page 22: V.maintenance And Repair
V.Maintenance and repair V.Maintenance and repair 1.Note 1.1 Check whether the exhaust equipment is normal. Avoid cutting of the water supply and or air entering into the system, or it will influence the performance and reliability of the unit. The water filter should be cleaned regularly. -
Page 23: Judgement And Solution Of Malfunctions
1. Check the unit, to see if there is leak of refrigerant; Check if the pressure of the system too low when System low pressure protection the unit is running. The system's low pressure is open 2. Repairing the leak and vacuumize the system, pls refill the refrigerant. - Page 24 3.Determine and solve malfunction by below table: Malfunction Reason Solution Unit does 1.Power failure 1.Turn off power and inspect power supply not work 2.Loose power wire connection 2.Identify the cause and rectify 3.Fuse of controller burn-out 3.Identify the cause and replace with new fuse The pump is 1.Shortage of water or air in the water system 1.Check water supply equipment and replenish water...
-
Page 25: Vi.wiring Diagram
VI. Wiring diagram 1.Indoor unit wiring diagram 1.1 Wiring diagram MB3044-0101 effective for the mode of MACHRW010W/(B01) Wiring diagram(MB3044-0101) E1E2 N-OUT CN33 CN44 CN27 CN40 CN11 CN14 CN12 CN39 CN38 CN34 CN22 CN43 CN32 U V W CN36 Outdoor CN501 CN502 CN503 CN35 MAIN PCB CN37... - Page 26 1.2 Wiring diagram MB3043-0101 effective for the mode of MACHRW020W/(B01D) Wiring diagram(MB3043-0101) E1E2 N-OUT CN33 CN44 CN27 CN40 CN11 CN14 CN12 CN39 CN38 CN34 CN22 CN43 CN32 U V W CN36 Outdoor CN501 CN502 CN503 CN35 MAIN PCB CN37 CONTROLLER CONTROLLER N-IN CN21...
- Page 27 1.3 Wiring diagram MB3039-0101 effective for the mode of MACHRW030W/(B01D) Wiring diagram(MB3039-0101) E1E2 N-OUT CN33 CN44 CN27 CN40 CN11 CN14 CN12 CN39 CN38 CN34 CN22 CN43 CN32 U V W CN36 Outdoor CN501 CN502 CN503 CN35 MAIN PCB CN37 CONTROLLER CONTROLLER N-IN CN21...
-
Page 28: Outdoor Unit Wiring Diagram
2.Outdoor unit wiring diagram WIRING DIAGRAM (F04) Orange Capacitor Coil sensor Ambient sensor Outdoor fan Power input (220V/1PH/50Hz) 3. Between outdoor unit and indoor unit connection Outdoor unit electric box Outdoor unit electric box Outdoor fan Outdoor fan power output power output 208~230VAC 208~230VAC... -
Page 29: Three Way Valve Wiring Diagram
4. Three way valve wiring diagram Model for the WRA-6320A WRA-6310A WRA-6302A wiring instructions ( unit for the three-phase power ) Out9 L1 L2 3-way valve Power input signal and power output Electrical box (380V3PH/50Hz) (220V1PH/50Hz) AB:Common B:Air condition side water outlet Connect the unit outlet Connect air condition side inlet A:Hot water outlet... - Page 32 Abbotsford, B.C. V2S 7B4 tel : 604-758-2012 tel : 604-758-2012 www.solar-hot-water.ca www.solar-hot-water.ca admin@solar-hot-water.ca admin@solar-hot-water.ca Solaris Warehouse - LEI 456 Solaris Warehouse - LEI 456 Humber Place, Annacis, New Humber Place, Annacis, New Westminster, B.C. V3M 6A5 Westminster, B.C. V3M 6A5 TEL: 604-5223-5100...
