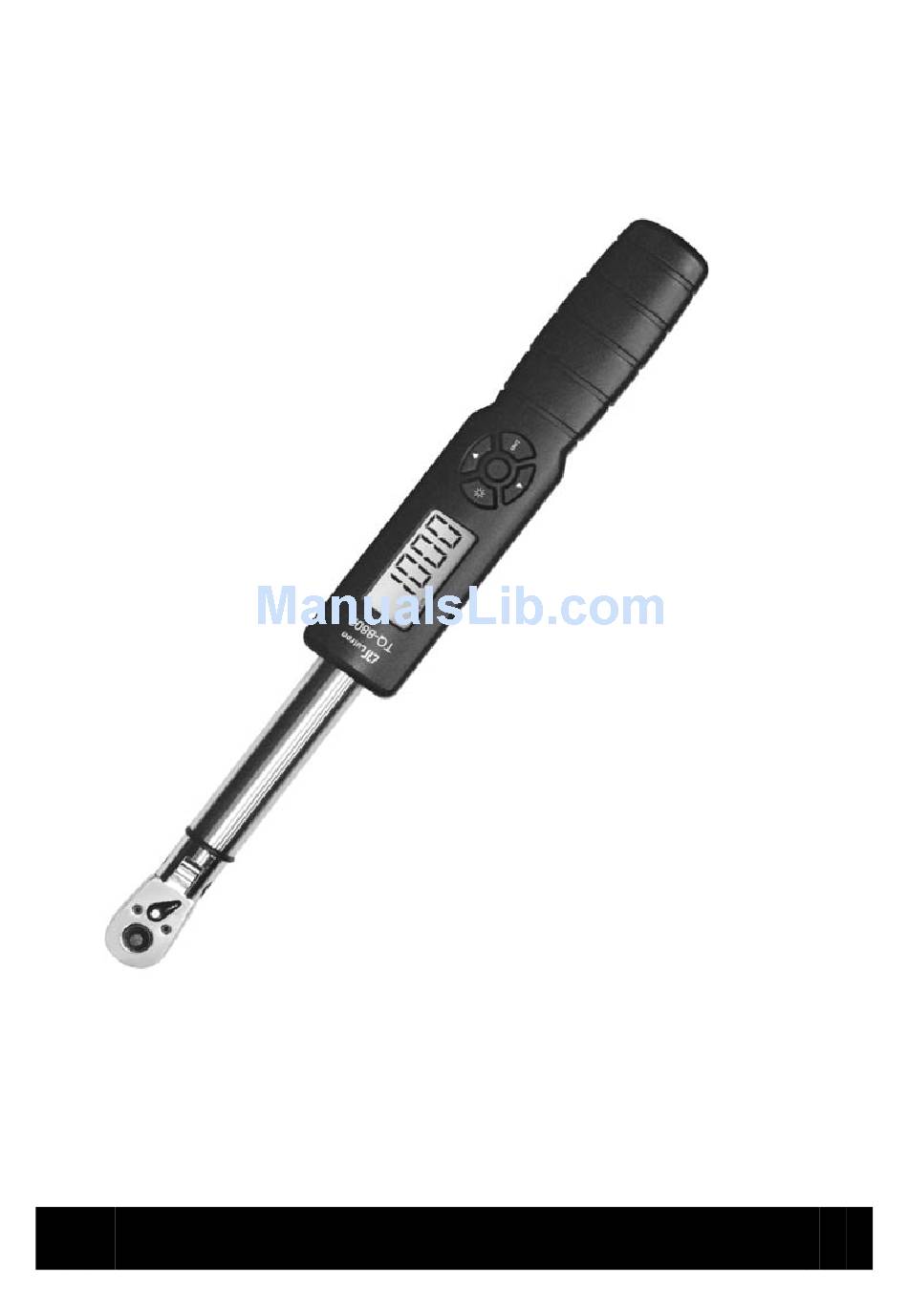

1000 Kgf-cm, heavy duty, professional
TORQUE WRENCH
Model : TQ-8803
Your purchase of this 1000 Kgf-cm Torque Wrench marks a
step forward for you into the field of precision measurement.
Although this METER is a complex and delicate instrument, its
durable
instructions carefully and always keep this manual within easy
reach.
OPERATION MANUAL
structure
developed.
Please
read
the
following
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Lutron Electronics TQ-8803
- Page 1 1000 Kgf-cm, heavy duty, professional TORQUE WRENCH Model : TQ-8803 Your purchase of this 1000 Kgf-cm Torque Wrench marks a step forward for you into the field of precision measurement. Although this METER is a complex and delicate instrument, its...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............2 2-1 General Specifications..........2 2-2 Electrical Specifications.......... 3 3. FRONT PANEL DESCRIPTION........4 3-1 Display..............4 3-2 Power button............4 3-3 LCD backlight button..........4 3-4 Unit button............4 Button............. ▲ Button.............. ▼ 3-7 Handle..............4 3-8 Torque force direction switch........4 3-9 Battery Compartment/Cover........ -
Page 3: Features
1. FEATURES * Professional and Heavy duty torque wrench. * Range : 1000 Kgf-cm, 868 lbf-in, 72.3 lbf-ft, 9807 N-cm, 98.1 N-m. * Unit : Kgf-cm, Lbf-in, lbf-ft, N-cm, N-m. * Auto data hold function to freeze the last measurement reading. * Alarm value setting with beeper sound. - Page 4 Sensor Exclusive torque sensor. Circuit Exclusive microcomputer LSI circuit. Data hold Freeze the last reading automatically. Alarm setting It can set the alarm force value, when measuring value reach the alarm value the beeper will sound, the LCD backlight will flash too. Zero adjust Automatic zero adjustment.
-
Page 5: Electrical Specifications
2-2 Electrical Specifications ( 23 5 ℃ Display Max. Range Min. Range Resolution Unit kgf-cm 1000 kgf-cm 3 kgf-cm 1 kgf-cm lbf-in 868 lbf-in 2 lbf-in 1 lbf-in lbf-ft 72.3 lbf-ft 0.2 lbf-ft 0.1 lbf-ft 98.1 N-m 0.2 N-m 0.1 N-cm N-cm 9807 N-cm 20 N-cm... -
Page 6: Front Panel Description
3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-2 Power button 3-3 LCD backlight button 3-4 Unit button Button ▲ Button ▼ 3-7 Handle 3-8 Torque force direction switch 3-9 Battery Compartment/Cover 3-10 Screws for battery cover 3-11 Square drive 3-12 Beeper... -
Page 7: Measuring Procedure
4. MEASURING PROCEDURE 4-1 Measurement 1) Power on the meter by pressing the " Power Button " ( 3-2, Fig. 1 ) once, the Display will show zero value and ready for the measurement. * After power on, if press the " Power Button " ( 3-2, Fig. -
Page 8: Auto Data Hold
4) Connect the " Square Drive " ( 3-11, Fig, 1 ) to the " Torque adapter " ( optional ) or the measured " Measurement Installation " that intend to measure the torque value. Use the hand to hold the " Handle " ( 3-7, Fig. 1 ) firmly and rotate the Handle, the Display will show the measurement torque value. -
Page 9: Auto Power Off
4) The LCD backlight will flash for warning if the measuring value reach the Alarm setting value. For example : * If the Alarm setting value is 500 kgf-cm, the " Beeper " will sound slowly when the measuring value reach to 450 kgf-cm, the "... - Page 10 0911-TQ8803...
