DVR42092 - 4CH MOBILE DVR

User Manual

Please read this user manual completely before operating this DVR system and keep it in

a safe place for future reference.

Table of Contents

Need help?

Do you have a question about the DVR42092 and is the answer not in the manual?

Questions and answers

Summary of Contents for Molpir DVR42092

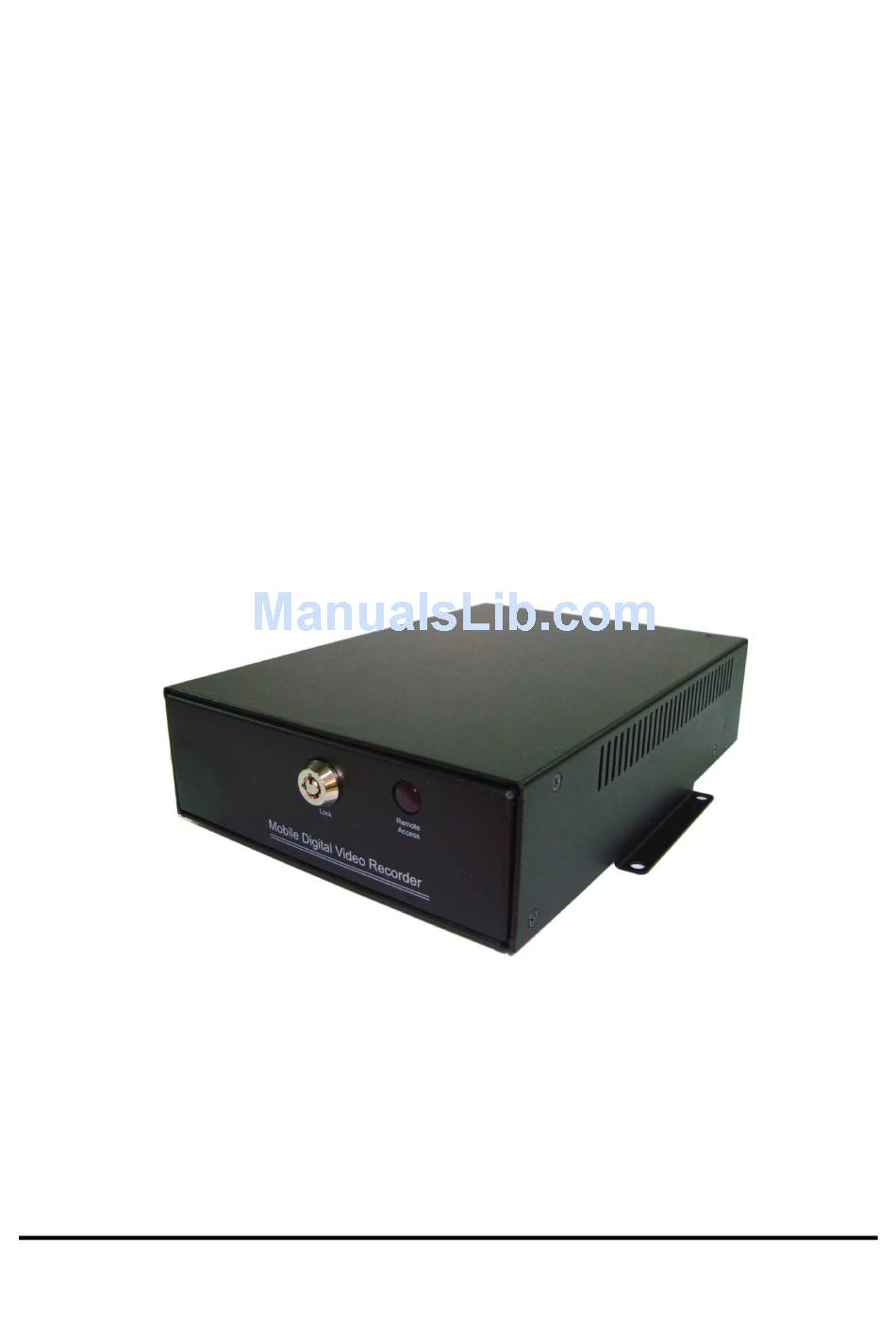

Page 1: User Manual
DVR42092 - 4CH MOBILE DVR User Manual Please read this user manual completely before operating this DVR system and keep it in a safe place for future reference.
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents ………………………………………………….……………….…… 1 Introduction ………………………………………………………….…………….…….. 2 Important Safety Information …………………………………………………..……… 2 Unpacking Your System ……………………………………………….……….……… 3 Control Panel and Function ……………………………………………….……..……. 5 Installation ………………………………………………………………………..……… 8 Before Operation …………………………………………………………………..…… 11 Operation ……………………………………………………………………………..…. 12 OSD (On Screen Display) Menu Setting Operation Process ……………..…….. 13 Button and function for operation ………..…………………………….……...……...
Page 3: Introduction
INTRODUCTION Thank you for purchasing our unique Mobile DVR system. To ensure that you optimize the full capabilities of this product, please read this user’s manual before proceeding. Be sure to keep this manual for future reference in case any problems or questions should arise.
Page 4: Unpacking Your System
UNPACKING YOUR SYSTEM Your DVR system will include the followings: 1 x Mobile DVR 1 x Rear cover for cable, tool & screws 2 x Key for front cover 2 x Shockproof rubber for HDD 4 x Screws for fixing DVR 1 x A/V Input connector 1 x Driver action box (Sensor signal box) 2 x Fuse (for DVR power cord &...
Page 5: Optional Accessories
1 x RCA A/V connector 1 x RCA A/V connector 1 x USB cable for data download (mobile rack) 1 x IR remote control 1 x User’s Manual Optional Accessories Panic button with 5M cable G-sensor box External GPS unit (GPS-E1) LAN box Announcement Device Notification &...
Page 6: Control Panel And Function
CONTROL PANEL AND FUNCTION Front Panel 1. Key socket 6. Power indicator 2. IR remote control receiver 7. IR remote control receiver 3. Screw hole 8. USB Slave download port 4. USB Host download port 9. Mobile rack 5. Record indicator...
Page 7 Rear Panel 10. Video/Audio(camera) 5~8CH input 16. Driver action detecting wire connecting socket (8-CH use) socket 11. DC 12V output port 17. Panic button connecting socket 12. G-sensor box connecting socket 18. Notification device connecting socket 13. Audio/Video output terminal 19.
Page 8: Ir Remote Control
IR Remote Control Menu button Move up key (PTZ up ) Move down key (PTZ down) Move left button (PTZ left ) Move right button (PTZ right) Enter button (PTZ auto pan/Stop) Value up button (PTZ zoom in ) Value down button (PTZ zoom out) Zoom button Sequence mode button Copy button...
Page 9: Installation
INSTALLATION DVR Installation 1. Insert the key enclosed with the package to open the front locking panel. 2. Hard Disk installation Please carefully follow the steps below to install Hard Disk Drive. a). Fix the shockproof rubbers to 2.5” HDD two sides as the picture showed below: (The shockproof rubber can protect the HDD.)
Page 10 b). Take out the mobile rack. Step 1, 2). Take off the top cover. Step 3). Connect the cable to 2.5” hard disk. (Make sure the HDD pin is correctly connected) Step 4). Put the HDD into the DVR HDD slot. Step 5, 6).
Page 11 4. Audio and Video output connection Connect the A/V output connector to A/V output terminal and connect A/V output cord to the monitor. 5. Mile/KM select switch Please select the record speed by Mile or KM to meet your requirement. 6.
Page 12: Before Operation
9. Panic button connection (optional) The panic button can be connected to show DVR working condition when the DVR is hidden in trunk or somewhere cannot be seen. The box design has the following functions: a) Power indicator LED. b) Record indicator LED. c) GPS signal indicator LED. d) Alarm buzzer.
Page 13: Operation
OPERATION The system is preset to OFF for [KEY LOCK] mode. If the system is set to ON for [KEY LOCK] mode, the screen will show the following message. Please key in security code by remote control number buttons to enter the OSD Menu for setting. LOGIN DVR PLEASE ENTER PASSWORD PASSWORD:...
Page 14: Osd (On Screen Display) Menu Setting Operation Process
OSD (On Screen Display) Menu Setting Operation Process 1. Press Menu button to enter menu selection mode. 2. Press Up button/ Down button / Left button / Right button to select the item for setting. 3. Press Enter button to enter SUB Menu to select item for setting. 4.
Page 15 Play operation button Button Operation Remarks Play PLAY Rewind REWIND Fast forward FAST FOR. Fast rewind FAST REW. Pause Pause Stop Stop Audio channel select 3 PTZ control button operation Button Operation Remarks Screen zoom 1. Press ZOON button to enter the function.
Page 16: Screen Instruction
Screen Instruction Show 1 CH HD0 68% R ID000000 D: - - 0MPH H:- 09/01/09 10:08:45AM REC CON Date Time CAM1: Camera 1 CAM2: Camera 2 CAM3: Camera 3 CAM4: Camera 4 ID0000000: Car number or DVR number 68%: The percentage of HDD recording capacity. 1.
Page 17: Osd Setting Operation
OSD Setting Operation 1. Camera Setup Operation 1.1 Title Setup A. Press MENU button to enter menu selection mode. MAIN MENU CAMERA SETUP DATE/TIME SETUP HDD SETUP RECORD SETUP BACKUP SETUP NETWORK SETUP PERIPHERAL SUB MENU KEY LOCK SETUP B. Use button to select [CAMERA SETUP] setting section.
Page 18 1.2 Color Setup A. Press MENU button to enter menu selection mode. B. Use button to select [CAMERA SETUP] setting section and press button to enter channel select mode. C. Use button to select [COLOR SETUP] setting section and press button to enter.
Page 19 1.3 Motion Detection A. Press MENU button to enter menu selection mode. B. Use button to select [CAMERA SETUP] setting section and press button to enter. .C. Use button to select [MOTION DETECTION] setting section and press button to enter [MOTION DETECTION]. MOTION DETECTION AREA SETTING CAM [ 1 ]...
Page 20 button to select all activated or closed. (This function will be activated when the record mode is selected by “Motion Detection (M)”.) G. Press MENU button to exit. H. Use button to select the item you want to change. I. Use button to change the value.
Page 21: Date / Time / Daylight Saving Time Setting
2. Date / Time / Daylight Saving Time Setting A. Press MENU button to enter menu selection mode. button to select [DATE/TIME SETUP] setting section and press button to enter. DATE/TIME SETUP DISPLAY FORMAT: [ MM/DD/YY ] TIME FORMAT: [ 12H ] YEAR [ 2010 ] MONTH...
Page 22: Hdd Setup
DAYLIGHT SAVING TIME TURN: [ ON ] START TIME: MONTH: [ 04 ] DAY: [ 02 ] HOUR: [ 00 ] END TIME: MONTH: [ 11 ] DAY: [ 04 ] HOUR: [ 00 ] H. Use button to go [TIME ZONE SETUP] section and press button to enter.
Page 23 HARD DISK SETUP HDD INFORMATION HDD REC MODE: [RECYCLE] HDD FORMAT CD/DVD RW INFORMATION AUTO FORMAT: [ON] RECYCLE: OVERWRITE HDD ONCE: STOP RECORDING WHEN HDD FULL 3.1 HDD Information A. Use button to select [HDD INFORMATION] setting section and press button to enter.
Page 24: Record Setup
3.3 HDD Format A. Use button to select [HDD FORMAT] setting section and press button to enter. HDD FORMAT SELECT HDD [ 1 ] FORMAT [ NO ] SELECT YES AND PRESS ENTER TO FORMAT HDD B. Use button to select HDD [ 1 ] section. C.
Page 25 A. Press button to enter menu selection mode. B. Use button to select [RECORD SETUP] setting section. C. Press button to enter [RECORD SETUP] select mode. RECORD SETUP RECORD MODE CONTINUOUS RECORD ALARM RECORD MOTION RECORD D. Press button to enter [RECORD MODE]. E.
Page 26 After setting, press MENU button to exit. CONTINUOUS RECORD RECORD QUALITY: [ SUPER ] COMPRESSION/FPS [ JPEG 60 ] - - - RECORD SCHEDULE - - - 1 PM CAM REC 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 1 [SCH] [OFF] 2 [ON]...
Page 27: Backup Setup
J. Motion Record: for setup of 4 levels of record quality, 4 kinds of frame rates and duration to record while detecting alarm or motion. MOTION RECORD RECORD QUALITY: [SUPER] COMPRESSION/FPS: [JPEG 30] REC/FULL SCREEN TIME: [30] SECONDS PRE RECORD: [ON] * Quality: Standard / Normal / High / Super.
Page 28: Network Setup
B. Use button to select [NETWORK SETUP] setting section. C. Press button to enter [NETWORK SETUP] select mode. NETWORK SETUP TCP / IP SETUP E-MAIL SERVER E-MAIL ADDRESS NETWORK MODE [DHCP] PORT [ G/W [ MASK [ DNS [ MAC 00-14-62-00-25-79 STATUS DIS-CONNECTING [OK] * Mode: STATIC, DHCP, PPPOE...
Page 29: Peripheral Setup
E-MAIL SERVER 1. SENDER E-MAILADDRESS: tracker@xxxxx.com 2. SMTP SERVER [ 64.91.xx.xxx 3. PORT: [ 00025 ] 4. ID: tracker@xxxxx.com 5. PASSWORD: [ xxxxxxxxxx 6. TLS: [OFF] [OK] F. Use button to select setting section. G. Use button to select the word/digit. 7.
Page 30 B. Press button to enter [BUZZER SETUP] select mode. Buzzer: for setting buzzer alarm time for video loss, motion detecting, I/O alarm detecting and key move alarm. BUZZER SETUP KEY BEEP [ OFF ] POWER ON [ ON ] VIDEO LOSS [ ON ] ALARM EVENT [ ON ]...
Page 31 ALARM INPUT SETUP ALARM IN STATUS FULL [ NO ] [ ON ] [ OFF ] [ NO ] [ ON ] [ OFF ] [ NO ] [ ON ] [ OFF ] [ NO ] [ ON ] [ OFF ] [ NO ] [ ON ] [ OFF ] [ NO ]...
Page 32 B. Press button to enter [SEQUENCE SETUP] select mode. SEQUENCE SETUP FULL SCREEN: [ 01 ] SEC * 01~60 seconds to be selected. C. Use to select item for setting. D. Use button to select value. E. Press button to exit. After above setting, press the (Sequence) button under Live/Record mode to activate this function.
Page 33: Sub Menu
8. Sub Menu A. Press button to enter menu selection mode. B. Use button to select [SYSTEM SETUP] setting section. C. Press button to enter [SYSTEM SETUP] select mode. SUB MENU G SENSOR DVR ID FACTORY DEFAULT UPDATE CODE AUDIO SD RECORD MODULE ALERT SETUP CH3 VIDEO LOSS EVENT [OFF]...
Page 34 8.2 G-Sensor G SENSOR G VALVE: [ 1.0 ] G A. Use button to select [G SENSOR] setting section. B. Press button to enter [G SENSOR] select mode. C. Use to select the G-value. D. Press button to exit. 8.3 PTZ: PROTOCOL [ PELCO-P ] BAUD RATE...
Page 35 * ID TYPE: ID/BUS/TAXI/TRAIN C. Use to select item for setting. D. Use button to select ID type. Use Number keys to change the ID number. E. Press button to exit. 8.5 Factory Default A. Use button to select [FACTORY DEFAULT] setting section.
Page 36 UPDATE CODE 1. FORMATE USB DEVICE [ NO ] 2. FIRMWARE UPGRADE-USB [ NO ] 3. LOAD PC PLAYER [ NO ] 4. FIRMWARE UPGRADE-CF [ NO ] 5. EXPORT SETTINGS [ NO ] VERSION: 0.28.3 C. Use button to select YES or NO. D.
Page 37 B. Press button to enter [SD RECORD MODULE] select mode. SD RECORD MODULE STATUS: RECORDING SD SIZE: 3.9 GBYTES FORMAT SD: AUTO FORMAT SD: [RUN] CURRENT VERSION: 0.3.6 NEW VERSION UPGRADE: [RUN] MENU: EXIT C. Use button to select [ FORMAT SD ] for setting. D.
Page 38 8.9 Alert Setup A. Use button to select setting section. ALERT SETUP PANIC [ENABLE] VIDEO STATUS [ONCE] OVER SPEED [ENABLE] OVER G-FORCE [ENABLE] START RECORDING [ENABLE] STOP RECORDING [ENABLE] HDD FAIL [DISABLE] DVR BOOT UP [DISABLE] STOP ARM [DISABLE] CLOCK SET TO GPS TIME [ENABLE] DVR ID CHANGE [ENABLE]...
Page 39: Key Lock Setup
9. Key Lock Setup A. Press button to enter menu selection mode. B. Use button to select [KEYLOCK SETUP] setting section. C. Press button to enter [KEYLOCK SETUP] select mode. KEYLOCK SETUP LOCK: [OFF] D. Use button to select YES or NO. E.
Page 40: Play Back Record Data
PLAYBACK RECORDED DATA There are two ways to playback recorded data: 1. Playback by Time: a. Press PLAY button, the screen will display SEARCH menu. b. Use buttons to select the start day and time which you want to play back, then move to “RUN” and press ENTER button to playback.
Page 41 EVENT SEARCH YY / MM / DD HH/MM/ SS 000 10 / 07 / 20 12 : 00 : 30 R00 001 10 / 07 / 20 12 : 00 : 30 B00 002 10 / 07 / 20 12 : 03 : 25 M01 003 10 / 07 / 20 12 : 06 : 35 M02 004 10 / 07 / 20...
Page 42 In the playing mode, you can use play bar to control playing function. The play bar buttons are introduced below: FAST FOR.: Fast Forward. Press the “FF” once, the playback speed will be changed to x2 to play, press “FF” again, the speed will be changed to x4, and press “FF”...
Page 43: Ptz Camera Setting And Control
PTZ CAMERA SETTING AND CONTROL 1. Introduction: Connect the signal I/O box to the DVR. The signal I/O box has RS485 port for PTZ camera control. 2. Installation: 2.1 Set PTZ camera control protocol: Follow PTZ camera user manual to choose and set control protocol, all the cameras need to choose same protocol type.
Page 44 to change ID number. 3.3 Use button to select PROTOCOL and use button to select PELCO-P or PELCO-D. 3.3 Use button to select the subject of BAUD RATE, then use button to select baud rate to match your PTZ camera setting.
Page 45: Usb Download Instruction
USB DOWNLOAD INSTRUCTION 1. USB Slave Download USB Slave Download Process: 1. Connect one end of the USB download cable to the DVR USB Slave download port and the other end to PC. 2.. Enter the [BACKUP SETUP] screen as listed below: Press MENU button to [MAIN MENU], then use button to select...
Page 46 Press MENU button to [MAIN MENU], then use button to select [BACKUP SETUP], and then use button to select [USB MASTER]. Press Enter button to enter and the screen will show as below. BACKUP SETUP USB MASTER SETUP USB SLAVE HDD: YY/MM/DD HH:MM BEGIN 10-07-20 08:00...
Page 47 Press Stop button to stop the warning sound. And, press MENU button to exit. b. Download during playback: 1. Press “PAUSE” button and then press “COPY” button. 2. The system will download the recorded data one minute before and one minute after you press “PAUSE”...
Page 48: Sensor Recorder Function Operation (Optional)
SENSOR RECORDER FUNCTION OPERATION Driver Action Record Function Total 8 kinds of driver action can be recorded in your mobile DVR as follows: 1. Right Turn, “RT” will be recorded and showed on screen. 2. Left Turn, “LT” will be recorded and showed on screen. 3.
Page 49 location “N” while show “S” means latitudes south of the Equator). 10. The location showing “BUS:2009” is bus number key-in on DVR “OSD” menu under sub menu section. The location “09/01/09 08:56:50 is showed as recorded time. Video Signal Development Record Function Five camera outputs can be connected to the box’s video input connector.
Page 50: Gps Recorded Data Download Operation Process
GPS Recorded Data Download Operation Process 1. Install USB driver software (attached in CD). 2. Install GPS download software (attached in CD). 3. Select GPS download software a. Select COM port. b. Select “Download” and key-in file name. c. Press download button and keep for more than 2 seconds (can see the data loaded to the file, then can release) to download the GPS recorded data.
Page 51: Pc Player Software Operation
PC PLAYER SOFTWARE OPERATION Install PC player software Open the “PC Player Software” burnt on CD and install it on your PC. & & & & & & & & When above installation is finished, the Viewer icon will be showed on PC desktop and ready to be used.
Page 52 How to play the file a. Connect DVR Slave port to PC On DVR side: Press “MENU” button and enter “USB SLAVE” screen first. MENU BACKUP SETUP USB SLAVE Connect DVR Slave port to PC by USB cable and follow “Start playback” process to play the DVR files.
Page 53 Control panel function. Open new file Save as JPEG Create Media File Copy File to PC On Screen Display Auto Browse Account Management...
Page 54 Minimize / Exit Watermark Protection: The system will show the warning light and stop playing when the recorded data is abnormally put in or removed. Press “Play” button to continue the playback. Enhance video quality Information related to the current software or file Play Volume adjustment or activate mute play...
Page 55 Find the DVR device and select one file, and then press “OPEN”. 7. Highlight desired time and click “Open”.
Page 56 8. If the file does not meet your desired date/time, press to list all recorded image. Select the desired file to play. Press button. 11. Click to play video. How to archive your event data Once the file is opened (after follow Steps 1 ~ 10 of “Start playback” as mentioned above), please follow the steps below to archive your event data.
Page 57 2. Continue to play the file till the event is finished. 3. Click “Open New File”. 4. When the dialog box comes up, select “ ”. 5. From the noted times, slide the time slider to the beginning time. 6. Now select “Set time” parallel to “Start Time” 7.
Page 58 10. Click “Copy file to PC”. 11. When completed it will say “Finish”. 12. After finishing, close all dialog boxes. Suggestion: You can then open the folder you created and rename the file. Make sure the file name ends with “ .dvr”. How to create an AVI file Once the file is opened (after follow Steps 1 ~ 10 of “Start playback”...
Page 59 3. Click “Set Start”. 4. Click “Set End”. 5. Click and choose the location you want to save. 6. Name your file. 7. Click . This may take several minutes depending on the file size to be created. 8. You will see the percentage completed. When it’s completed, click “OK”.
Page 60 Product parameters are subject to change without prior notice. MOLPIR spol. s r.o., Hrachová 30, 821 05 Bratislava, Slovakia tel: +421 2 4319 1218, fax: +421 2 4319 1220 www.molpir.com, info@molpir.com, shop.molpir.com...
