Note: This document covers the use of the Control 15 in a standalone configuration.
For setup in other systems, see the appropriate QuickStart Guides supplied with other units.

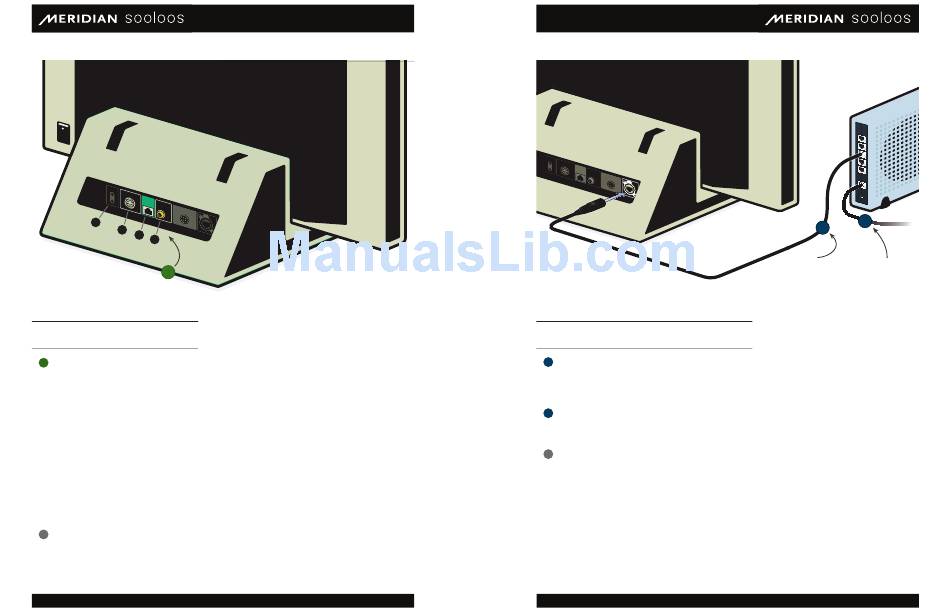

STEP 1 :

AudiO COnnECTiOnS

Your Control 15 features a /
1 S PDIF
digital audio output. This can be
connected to an / input on your
S PDIF
audio system, or on Meridian DSP
Loudspeakers. The Control 15 also
includes a SpeakerLink output, which
can be connected to Meridian DSP
Loudspeakers.
A. S / PDIF digital audio output
B. Meridian SpeakerLink audio output
C. Meridian Comms (for integrating your
Control 15 with a Meridian system )
D. Meridian trigger out and IR in
(included for future use )
As a precaution, please lower the
!
volume and/or power down any
external audio components before
making new audio connections.
Meridian Audio Ltd, Latham Road, Huntingdon, Cambridge PE 29 6 YE , United Kingdom | www.meridian - audio.com
L
Tr ig ge
r
C om
R
m s
Sp ea
ke r
Li nk Di gi ta
l O ut
Po w er
In
STEP 2 :

nETWORk COnnECTiOnS

Attach the Control 15's network port to a LAN
1
on your router. You can use the Neutrik Ethercon
connector (supplied) with an Ethernet cable of
the appropriate length (not supplied.)
Make sure the WAN /Internet port of this router
2
connects to the rest of your network, or to your
Cable/ DSL modem.
Depending on the make and model of your router,
!
crossover Ethernet cable(s) may be required
to make valid connections to your Control 15.
Meridian Audio Ltd, Latham Road, Huntingdon, Cambridge PE 29 6 YE , United Kingdom
L A N
W A
N
2
1
Connects
Connection to
to Control 15
the Internet
port
