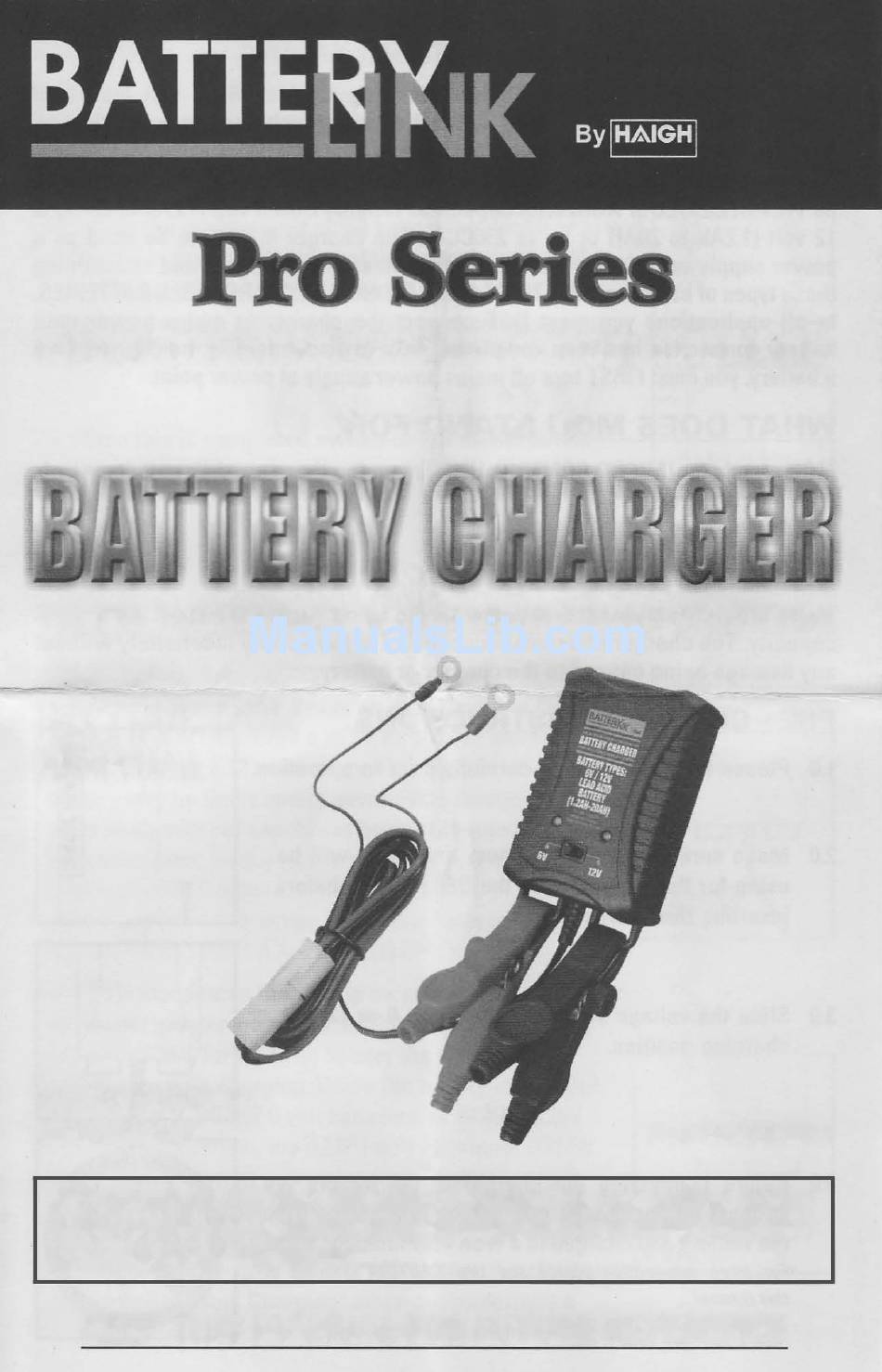

MICROPROCESSOR CONTROLLED
WITH MULTI-STAGE CHARGING SYSTEM
INSTRUCTION
MANUAL
SAA APPROVAL No.
SGSEA/080476
IT IS ESSENTIAl YOU READ THE ENTIRE CONTENTS OF THIS MANUAl BEFORE
USING THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN INJURY, PROPERTY
DAMAGE OR PRODUCT FAILURl
KEEP THIS MANUAL FOR FUTURE REFERENCE
6V- 12V
Part No. CHS075
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Haigh Battery Link CHS075
Summary of Contents for Haigh Battery Link CHS075
- Page 1 MICROPROCESSOR CONTROLLED 6V- 12V WITH MULTI-STAGE CHARGING SYSTEM INSTRUCTION MANUAL SAA APPROVAL No. SGSEA/080476 Part No. CHS075 IT IS ESSENTIAl YOU READ THE ENTIRE CONTENTS OF THIS MANUAl BEFORE USING THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN INJURY, PROPERTY DAMAGE OR PRODUCT FAILURl KEEP THIS MANUAL FOR FUTURE REFERENCE...
- Page 2 INTRODUCTION The CHS075 charger is designed for charging single 6 & 12 volt lead acid (starting) batteries widely used in smaller motor vehicles such as ride on mowers, petrol engine golf carts, quad bikes, motorcycles and jet skis. lt will also charge smaller deep cycle batteries.
- Page 3 CHARGER TO BATTERY CONNECTION INSTRUCTIONS 5.0 When connecting the charger to the battery: a. Ensure the battery rosts are clean and free of corrosion. b. Connect the charger clamps or terminals to the battery BLACK in the following order: RED to the positive post of the battery (marked P or+) and BLACK to the negative post of the battery (marked Nor-) c.
- Page 4 INDICATION 1.0 Bulk Charging LED1 (RED) illuminates 2.0 Fully Charged LED1 (GREEN) illuminates 3.0 Faulty Battery LED1 (GREEN) flashes 4.0 Reverse Polarity LED2 (RED) illuminates LED2 CHARGER PROTECTION FUNCTIONS The battery charger has inbuilt "SHORT CIRCUIT' • protection with means positive and negative leads will not "SPARK'' if touched together.
- Page 5 SPECIFICATIONS 240V AC 50Hz 15W Input: Nominal: 6V and 12V Output Voltage: 3.75V:!: 0.25V (6V battery) or 7.5V:!: 0.25V (12V battery) Charging Voltage: Input Current: 130mA R M S max Charging Current: 6V/12V DC= 0.75A:!: 10% 7.2V:!: 0.25V (&V battery) or 14.4V:!: 0.25V (12V battery) Cut Off Voltage: Storage Temperature: -20•c to so•c Temperatures:...
- Page 6 Young children should be supervised to ensure that they DO NOT play with the appliance. • Made in China for Haigh Australia Pty Ltd 09/2008 N11912...
