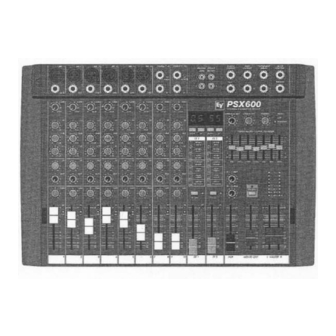

PSX600 STEREO POWERED MIXER
SERVICE MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSX600 and is the answer not in the manual?

Questions and answers

Related Manuals for Electro-Voice PSX600

Summary of Contents for Electro-Voice PSX600

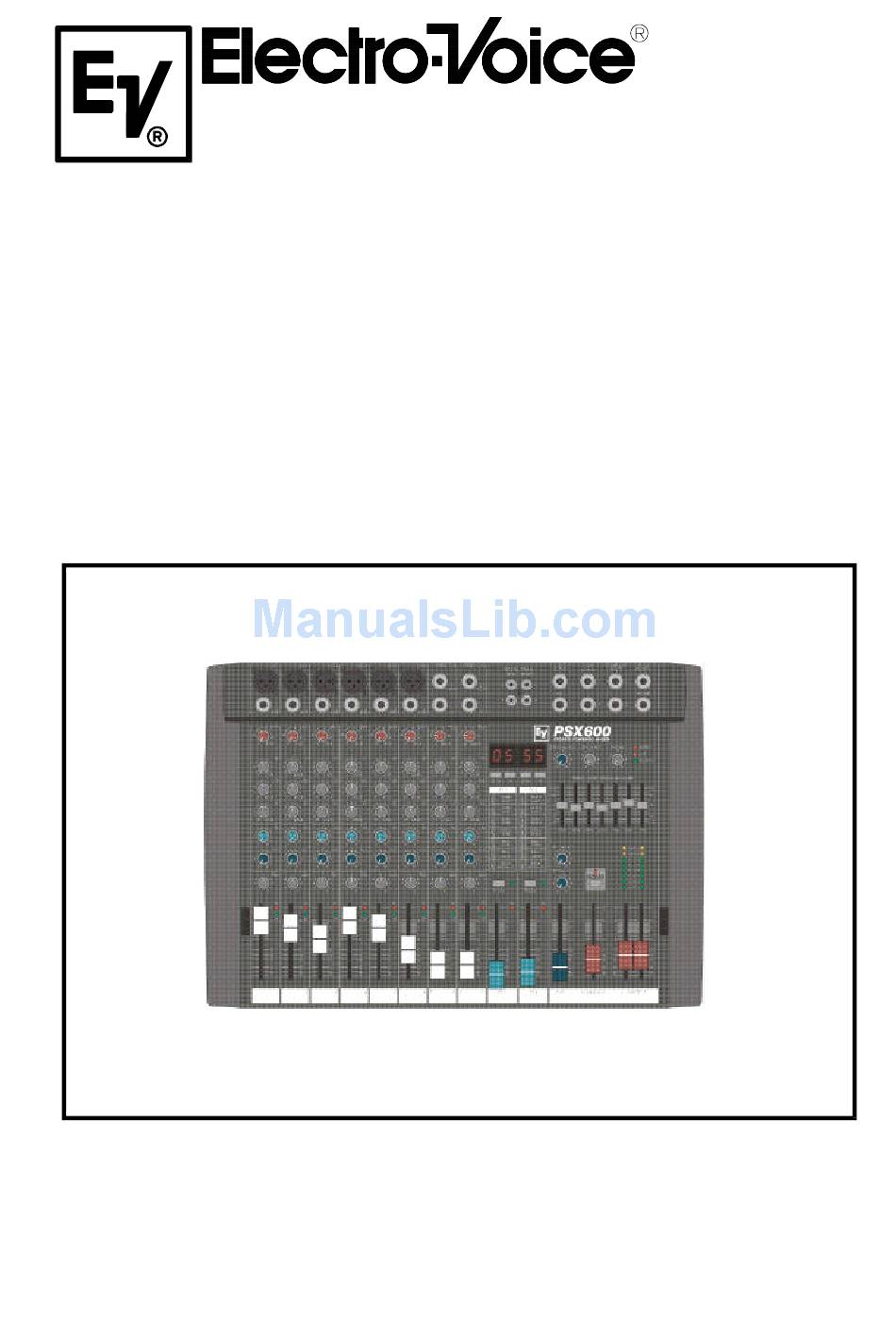

  • Page 1 PSX600 STEREO POWERED MIXER SERVICE MANUAL...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol, within an equi- lateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintance (servicing) instructions in the...
  • Page 3 (d): malfunction resulting from misuse or abuse of the product; or (e): malfunction occurring at any time after repairs have been made to the product by anyone other than Electro-Voice or any of its authorized service representatives.
  • Page 4 Technical Specifications PSX600 Mixing desk in rated condition, Unity Gain ( MIC Gain 20 dB ), all faders position 0 dB, all pots in mid position, Master fader + 6dB, amplifier rated output power into 8 ohms, one channel driven, unless otherwise specified.
  • Page 5 Page 1/3 Service Instruction Product: PSX 600 Title: Alteration of signal routing: Mono-Output-Signal from post-master-fader to pre-master-fader To do this alteration, there are to fit 2 resistors and there are to cut one track and to reconnect two solder pads. 1.
  • Page 6 Page 2/3...
  • Page 7 Page 3/3...
  • Page 15 Best. Nr. Ref. No. Part No. Bezeichnung Description Zubehör Accessories & packing material 358172 OWNER'S MANUAL PSX 600 owner's manual psx600 358186 QUICK START PSX 600 quick start psx600 346832 KABEL-NETZ UL/CSA 10A/125V power cable US 358174 KRT. PSX 600...
  • Page 16 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description CN005 348488 FEDERLEISTE 6POL 2.54MM connector female 6-pole C0001 354031 KO-EL 470.000MF 10V cap electrolytic 470uF/10V C0002 354031 KO-EL 470.000MF 10V cap electrolytic 470uF/10V C0003 329021 KO-KER 0.10MF 100V 20% cap ceramic 100nF...
  • Page 17 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description C008F 301543 KO-KER 330.0PF 500V 10% cap ceramic 330pF C009A 354031 KO-EL 470.000MF 10V cap electrolytic 470uF/10V C009B 354031 KO-EL 470.000MF 10V cap electrolytic 470uF/10V C009C 354031 KO-EL 470.000MF 10V...
  • Page 18 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description C017D 342932 KO-FOL 0.015MF 100V 5% cap mylar 15nF C017E 342932 KO-FOL 0.015MF 100V 5% cap mylar 15nF C017F 342932 KO-FOL 0.015MF 100V 5% cap mylar 15nF C018A 340523 KO-EL...
  • Page 19 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description C022F 301530 KO-KER 100.0PF 500V 10% cap ceramic 100pF C0220 354958 KO-FOL 0.180MF 63V 5% cap mylar 180nF C0221 354958 KO-FOL 0.180MF 63V 5% cap mylar 180nF C0222 327393 KO-FOL 4700.000PF 63V 5%...
  • Page 20 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description C0253 301558 KO-KER 33.0PF 100V 2% cap ceramic 33pF C0254 340523 KO-EL 22.000MF 16V cap electrolytic 22uF/16V C0255 335787 KO-KER 15.0PF 100V 2% cap ceramic 15pF C0256 340524 KO-EL...
  • Page 21 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description C0297 301558 KO-KER 33.0PF 100V 2% cap ceramic 33pF C0298 340523 KO-EL 22.000MF 16V cap electrolytic 22uF/16V C0299 340523 KO-EL 22.000MF 16V cap electrolytic 22uF/16V C030A 329021 KO-KER 0.10MF 100V 20%...
  • Page 22 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description C0373 329021 KO-KER 0.10MF 100V 20% cap ceramic 100nF C0376 329021 KO-KER 0.10MF 100V 20% cap ceramic 100nF C0377 329021 KO-KER 0.10MF 100V 20% cap ceramic 100nF C0378 329021 KO-KER...
  • Page 23 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description C070B 342934 KO-FOL 0.033MF 100V 5% cap mylar 33nF C071A 342934 KO-FOL 0.033MF 100V 5% cap mylar 33nF C071B 342934 KO-FOL 0.033MF 100V 5% cap mylar 33nF C072A 342932 KO-FOL...
  • Page 24 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description D001B 301254 DIODE 1N 4148 AXIAL diode 1N 4148 D001C 301254 DIODE 1N 4148 AXIAL diode 1N 4148 D001D 301254 DIODE 1N 4148 AXIAL diode 1N 4148 D001E 301254 DIODE 1N 4148...
  • Page 25 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description D0400 301254 DIODE 1N 4148 AXIAL diode 1N 4148 D0401 301254 DIODE 1N 4148 AXIAL diode 1N 4148 D0402 301254 DIODE 1N 4148 AXIAL diode 1N 4148 D0403 301254 DIODE 1N 4148...
  • Page 26 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description I0203 354931 IC NJM 072 BL SINGLE IN IC NJM 072 I0204 354931 IC NJM 072 BL SINGLE IN IC NJM 072 I0205 354931 IC NJM 072 BL SINGLE IN IC NJM 072 I0206...
  • Page 27 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description Q001A 343536 TRANS 2SA 1084 E TO 92 transistor 2SA 1084 E Q001B 343536 TRANS 2SA 1084 E TO 92 transistor 2SA 1084 E Q001C 343536 TRANS 2SA 1084 E TO 92 transistor 2SA 1084 E...
  • Page 28 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description VR015 352328 P-DREH 20KOHM LOG POS K pot 20k K VR018 354262 P-SHIB 10KOHM LOG POS A fader 10k A VR02A 352324 P-DREH 50KOHM LIN pot 50k B VR02B 352324 P-DREH...
  • Page 29 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description VR206 354930 P-SHIB 2X 10KOHM LIN fader 2x10k B VR207 354930 P-SHIB 2X 10KOHM LIN fader 2x10k B VR208 354262 P-SHIB 10KOHM LOG POS A fader 10k A VR209 352329 P-DREH 2X 20KOHM LOG POS K...
  • Page 30 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description C0011 354926 KO-EL 6800.000MF 80V 20% cap electrolytic 6800uF/80V C0012 354926 KO-EL 6800.000MF 80V 20% cap electrolytic 6800uF/80V C0013 301491 KO-EL 100.000MF 50V cap electrolytic 100uF/50V C0014 301491 KO-EL...
  • Page 31 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description C0113 343532 KO-EL 100.000MF 25V cap electrolytic 100uF/25V C0114 329021 KO-KER 0.10MF 100V 20% cap ceramic 100nF C0115 329021 KO-KER 0.10MF 100V 20% cap ceramic 100nF C0116 343532 KO-EL...
  • Page 32 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description D0011 301254 DIODE 1N 4148 AXIAL diode 1N 4148 D0012 301254 DIODE 1N 4148 AXIAL diode 1N 4148 D0013 304360 DIODE 1N 4007 GEGURTET diode 1N 4002 D0014 301254 DIODE 1N 4148...
  • Page 33 170101 PSX 600 120V Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description E0001 356656 RELAIS 845-N-2C-S-24VDC relay 24V E0100 354859 RELAIS 793-P-1C-S-24V DC relay 24V E0300 354859 RELAIS 793-P-1C-S-24V DC relay 24V F0001 302583 SICHER T 1.6 A 250V fuse 1.6A slow blow F0002 302583...
