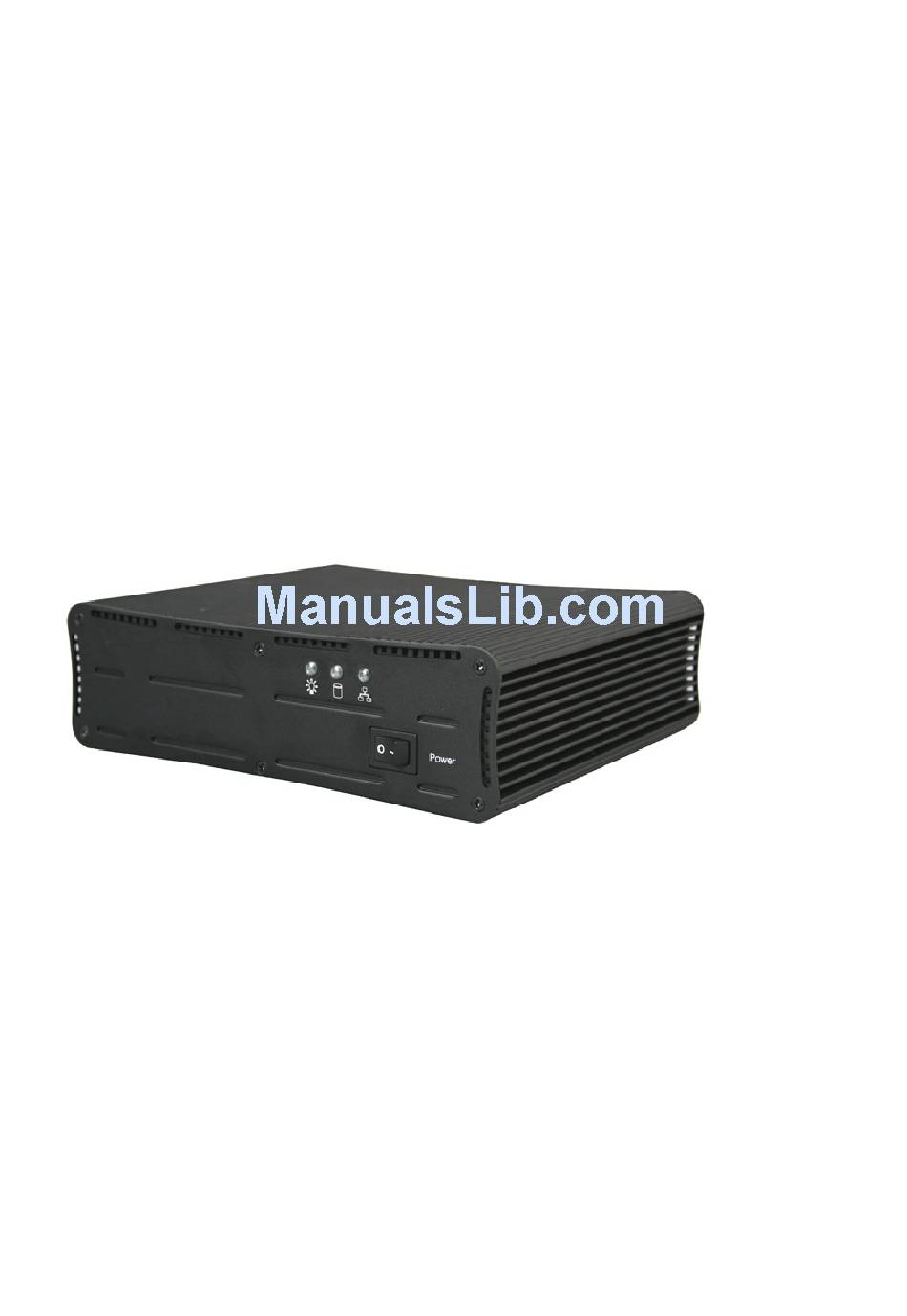

- Page 1 Service Manual BPC-70-B-C1G...
-
Page 2: Liability Disclaimer
Copyrights ©2009 All rights reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. This document contains proprietary information protected by copyright. -
Page 3: Table Of Contents
Contents Copyrights ....................i Liability Disclaimer ...................i Contents....................ii 1. Before You Start ...................1 1.1. Tools Suggested ..................1 2. Opening the Device................2 2.1. Remove the Front Cover................2 2.2. HDD Installation.................... 3 2.3. RAM Installation ................... 5 How to Install the RAM ......................5 How to Uninstall the RAM......................5 3. -
Page 4: Before You Start
Before You Start 1. Please unplug the power cable before you start to work. 2. Please read and follow the instructions in this document carefully. Failure to follow these instructions could damage your device and void the warranty. 1.1. Tools Suggested All procedures in this document require the following tools: #0 Phillips screwdriver #1 Phillips screwdriver... -
Page 5: Opening The Device
Opening the Device 2.1. Remove the Front Cover 1. Loosen and remove the six screws fixing the front cover by #1 Phillips screwdriver. 2. Remove the front cover from the device by pulling back easily. Beware that the LED indicator is connected to the front cover. 3. -
Page 6: Hdd Installation
2.2. HDD Installation 1. Loosen and remove the six screws fixing the back cover by #1 Phillips screwdriver. 2. Draw out the assembly from the case. 3. Loosen and remove the four screws fixing the main board by #1 Phillips screwdriver. Chapter 2... - Page 7 3. Unplug the power switch cable from the mainboard. The main board is separated from the main board bracket. Connect the IDE cable to the HDD and tighten the four screws to fix the HDD to the main board bracket by #1 Phillips screwdriver as shown below. Chapter 2...
-
Page 8: Ram Installation
2.3. RAM Installation How to Install the RAM Align and insert the new RAM in the slot and push both ends of the RAM down until the ejectors snap into place. How to Uninstall the RAM Open the tow ejectors on the slot by pushing them, and remove the RAM from the slot. -
Page 9: Mainboard And Component Replacement
Mainboard and Component Replacement 3.1. How to dissemble the mainboard from the device 1. Loosen and remove the metal O-ring fixing the phone jack by O-ring tool. 2. Loosen and remove the ten hexagonal bolts fixing COM ports and the VGA port by hexagon socket spanner. - Page 10 4. Remove the front cover from the device by pulling back easily. 5. Loosen and remove the four screws fixing the main board by #1 Phillips screwdriver. 6. Unplug the power switch cable from the mainboard. The main board is separated from the main board bracket.
-
Page 11: Unplug Scsi Cable
3.2. Unplug SCSI Cable 1. Unplug 8-pin female connector of SCSI cable from the male connector on the mainboard. 2. Unplug 13-pin female connector of SCSI cable from the male connector on the mainboard next to the HDD power connector. Chapter 3... -
Page 12: Unplug Com Port Cable
3. Unplug 15-pin female connector of SCSI cable from the male connector on the mainboard next to the IDE socket. 3.3. Unplug COM Port Cable 1. Unplug two COM port cables from the male connector on the mainboard behind the purple parallel port. Chapter 3... -
Page 13: Unplug Vga Port Cable
3.4. Unplug VGA Port Cable 1. Unplug and remove the VGA port cable as shown below. Chapter 3... -
Page 14: Unplug Phone Jack Cable
3.5. Unplug Phone Jack Cable 1. Unplug and remove the phone jack cable as shown below. Chapter 3... -
Page 15: Unplug Ide Cable
3.6. Unplug IDE Cable 1. Unplug and remove the IDE cable as shown below. 3.7. Heat Sink Dissemble 1. Follow steps below to release the four push-pin clips of CPU heat sink: a. Press and Hold the push-pin clip. b. Use the needlnose pliers to clip the head of the push-pin clip softly. c. -
Page 16: Power Switch Dissemble
2. Remove the CPU heat sink from the mainboard. 3.8. Power Switch Dissemble 1. Push out and remove the power switch by slot type screwdriver in the direction as shown below. Chapter 3...
