Page 2

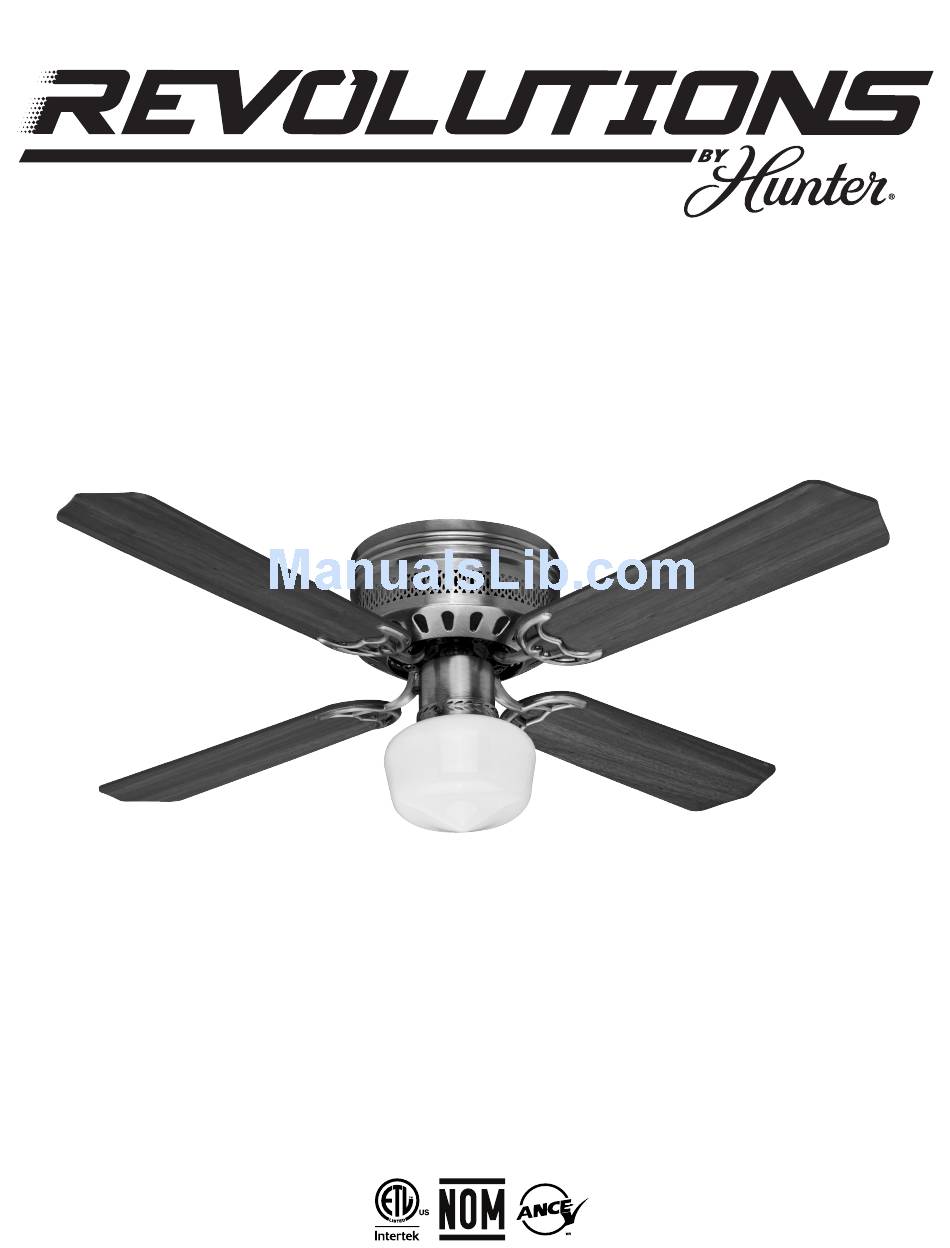

Congratulations! You have chosen the best. Your new Revolutions ceiling fan will provide you with many years of comfort and satisfaction. Read and Save These Instructions This product conforms to UL Standard 507. WARNINGS w.1 - To reduce the risk of personal injury, attach the fan directly to the support structure of the building according to these instructions, and use only the hardware supplied.
Noise isolators, blade nuts, blade screws Note: Some Revolutions fan models will have slightly different parts than shown here, depending upon the model. Basic installation procedures are similar for all fan models. Tools and Materials Required •...
Install Mounting Bracket 1. To avoid possible electrical shock, be sure electricity is turned off at the main power panel before wiring. AII wiring must be in accordance with national and local electrical codes, and the ceiling fan must be grounded as a precaution against possible electrical shock.
Mounting the Fan WARNING: The fan must be hung with a least 2,1 m of clearance from floor to blades. 1. Remove the three pre-installed screws from the motor hanging bracket. Keep the screws. 2. Slide the narrow end of the motor hanging bracket into the corresponding cut-out in the mounting bracket allowing the fan to hang (Fig.
Assembling the Motor Housing 1. Raise the fan so that the motor bracket meets the mounting bracket. Align the three screw holes. 2. Install the screws you kept from “Mounting the Fan.” (Fig. 4) 3. Lift the Motor Housing over the fan motor. Align the screw holes in the motor housing with the screw holes in the mounting bracket (Fig.
Assembling the Light Kit 1. Remove the thumbscrews from the light kit. 2. Install a 60 watt max bulb into the socket. 3. Raise the globe to the light kit. 4. Reinstall the thumbscrews. Tighten screws securely (Fig. 7A). 5. Assemble decorative fob and extension chains from hardware bag to the fan pull chains by inserting end of chain into chain coupling.
Troubleshooting FAN WILL NOT START: 1. Check all fuses or circuit breakers. Replace if missing. 2. Turn off electrical power and check all wire connections to fan and in the wall control. FAN IS NOISY 1. Use of standard light rheostat or continuously variable fan speed wall control will always cause harmonic distortions or a huming noise.
