Aphelion Outdoor Access Point Series
Quick Installation Guide
Package Contents
1
6
1.

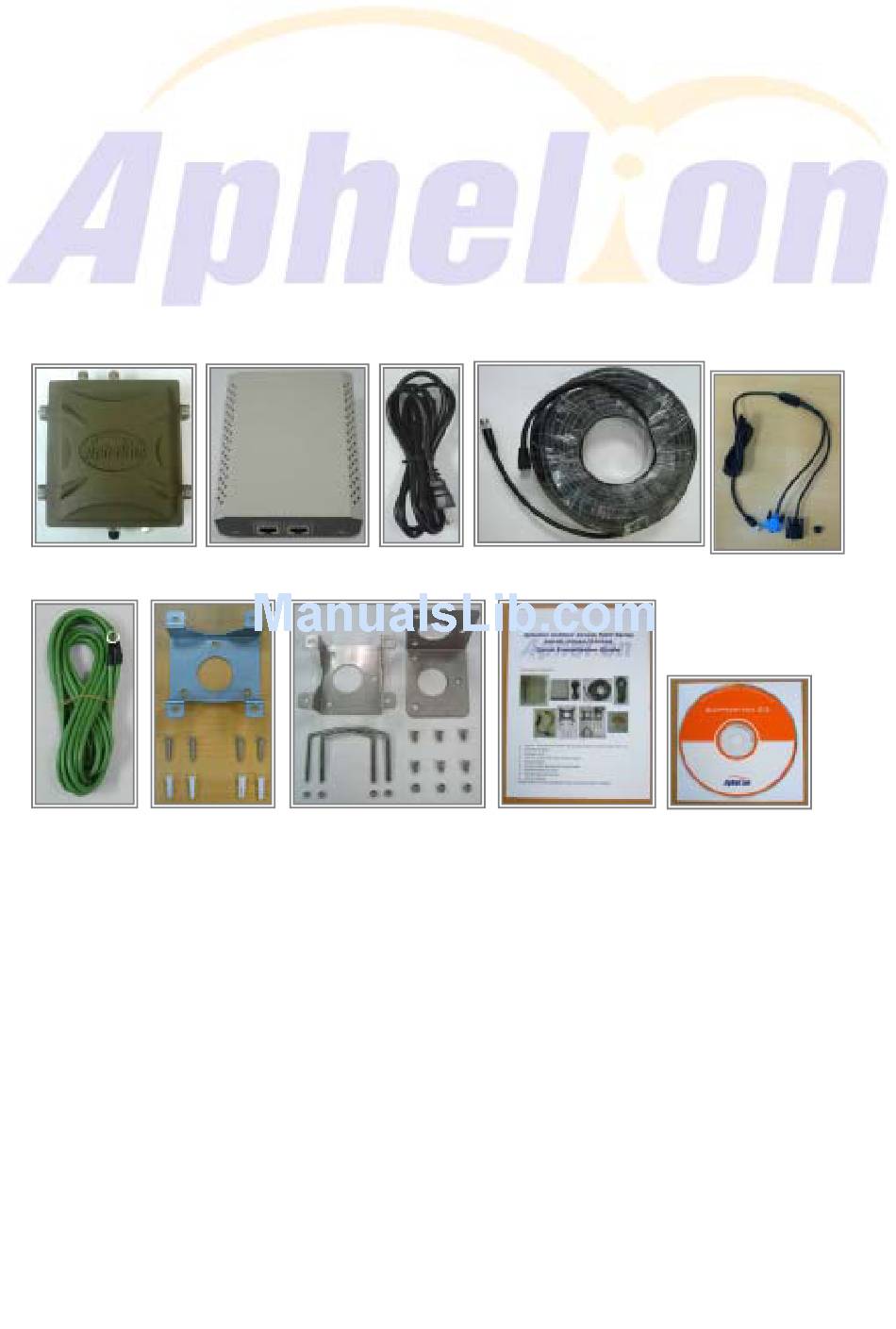

Aphelion 500AG/600AG/3300AG 802.11a/b/g Outdoor Wireless Access Point unit
2.
PoE Power Injector
3.
AC Power Cord
4.
30m MIL-C-5015 IP67 Cat-5 Ethernet Cable
5.
2m MIL-C-5015 IP67 RS-232 Console Cable
6.
Grounding Wire
7.
Wall Mounting Kit & Screw
8.
Mast Mounting Kit & Screw
9.
Quick Installation Guide.
10. CD: User Manual
Please contact your local distributor/reseller if any of the above items is missing.
