Leadtek SecurityDVR LTR-3100 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SecurityDVR LTR-3100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Leadtek SecurityDVR LTR-3100

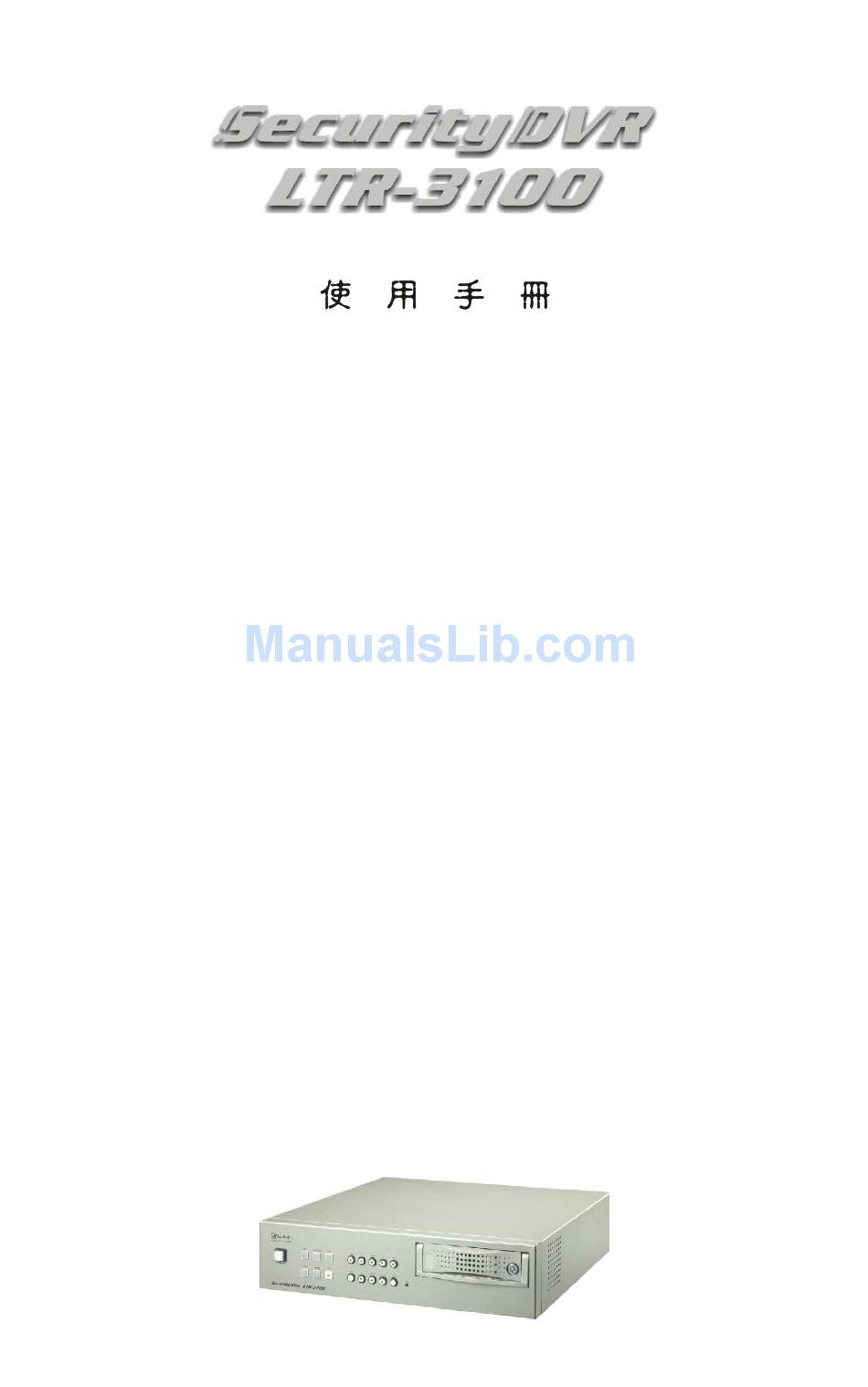

  • Page 1 USER'S MANUAL...
  • Page 2 SecurityDVR LTR-3100 User's Manual Version A February 2002 SecurityDVR LTR-3100 CODE: LR3100 2002 P/N: W0500520...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Overview E-1 Introduction E-1 Features Unit Exterior E-2 Front Panel Back Panel Setting up the Unit E-3 Installation & Adjustments E-3 Operation Environment E-3 Installing a New Hard Drive E-4 Display Related Functions E-5 Quad Processor Display styles E-5 Setting the Display Styles E-6 Assigning Displayed Channels E-7 Freezing Channels E-8...
  • Page 4 TENTS TABLE OF CONTENTS TENTS TABLE OF CONTENTS Playback E-13 To play back video E-13 In normal motion In fast forward motion In reverse motion To stop the playback E-13 To pause the playback E-13 To control the playback motion E-14 In normal playback In fast forward Playback In rewinding at the normal speed...
  • Page 5 TABLE OF CONTENTS TABLE TABLE OF CONTENTS TABLE Setting Connection Speed E-24 Set LTR-3100's IP E-25 Changing user Name and Password E-26 FCC Statements 27...

  • Page 6: Overview

    Real-time color video integration. display at full/Quad screen SecurityDVR LTR-3100 is a never- with a selection of display before-seen product that combines a modes 4-channel DVR, a Quad Processor, and a WebCam Server all in one unit.

  • Page 7: Unit Exterior

    OVERVIEW OVERV OVERVIEW OVERV Unit Exterior Front Panel Front view of the unit PLAY/STILL SETUP CH 1 CH 2 CH 3 CH 4 Mobile Hard Disk Rack POWER SLOW STOP MODE ZOOM FREZZE PICTURE ENTER RESET PLAY/STILL SETUP CH 1 CH 2 CH 3 CH 4...

  • Page 8: Setting Up The Unit

    E UNIT SETTING UP THE UNIT E UNIT SETTING UP THE UNIT Installation & Adjustments 1. below See A-2 below NTSC Connects a TV set Rear view of the unit Connects the Camera input connectors: power adapter Each channel connects a camera installed at a monitored site.

  • Page 9: Installing A New Hard Drive

    SETTING UP THE UNIT SETTIN SETTING UP THE UNIT SETTIN Installing a New Hard Drive If you wish to install a hard disk in the mobile rack, please do so following the instructions below: Step 1 Power off the unit. Step 2 Change the jumper setting on the hard drive to set it as a Slave.

  • Page 10: Display Related Functions

    TIONS DISPLAY-RELATED FUNCTIONS TIONS DISPLAY-RELATED FUNCTIONS Quad Processor Quad Processor allows you to view the surveillanced sites in a selection of display styles, fulfilling even the professional surveillance requirements, aided with sophisticated Freeze and Zoom functions. Display Styles You can set your screen to display in the following 6 display modes: QUAD Mode Sequence Mode PIP Mode...

  • Page 11: Setting The Display Styles

    DISPLAY-RELATED FUNCTIONS DISPL DISPLAY-RELATED FUNCTIONS DISPL Setting the Display Style To change the display style, press the MODE button or one of the CH1 to CH4 buttons on the front panel. Which button to press depends on the display style you are currently using. See the figure below for how to switch to the display style of your preference.

  • Page 12: Assigning Displayed Channels

    TIONS DISPLAY-RELATED FUNCTIONS TIONS DISPLAY-RELATED FUNCTIONS Assigning Displayed Channels Selecting the Channel to Selecting the Channel to Selecting channels to be Selecting channels to be Selecting Channels to be Selecting Channels to be be viewed in the main be viewed in the main frame under Sequence frame under Sequence viewed under PIP mode...

  • Page 13: Freezing Channels

    DISPLAY-RELATED FUNCTIONS DISPL DISPLAY-RELATED FUNCTIONS DISPL Freezing Channels The Freeze function is available for fixed input channels, all four channels in the QUAD mode, both channels in the PIP mode, all three channels in the 2PIP mode, the channel displayed in the main frame under the Sequence PIP mode, and the channel displayed in the single mode.

  • Page 14: Using Zoom Function

    TIONS DISPLAY-RELATED FUNCTIONS TIONS DISPLAY-RELATED FUNCTIONS Using Zoom Function The Zoom function allows you to zoom in on a specific area or a predefined area you see on the screen. Two different types of zooming: Arbitrary Zooming and Predefined Zooming, are provided. Therefore, all channels displayed under the sequence modes, including the channel displayed sequentially, will freeze the moment the ZOOM button is pressed.
  • Page 15 DISPLAY-RELATED FUNCTIONS DISPLA DISPLAY-RELATED FUNCTIONS DISPLA Predefined Zooming You can use Predefined Zooming to zoom in on a predefined area on the screen. There are four predefined areas: top-left, top-right, bottom-left, and bottom right (see the figure below). Predefined zoomed areas L 1234 09/07/2001 14:30:00 Top-left...

  • Page 16: Managing Display Environment

    NMENT MANAGING DISPLAY ENVIRONMENT NMENT MANAGING DISPLAY ENVIRONMENT Software Setup When the system is not using the Cursor Operation Freeze or Zoom function, pressing the SETUP button will display the Move the cursor around using the keys setup menu on the screen that listed below.

  • Page 17: Video Recording/Playback

    VIDEO RECORDING/PLAYBACK VIDEO VIDEO RECORDING/PLAYBACK VIDEO Recording/Playback Control Buttons The six buttons indicated in the figure below control all recording/playback related functions. Front view of the unit PLAY/STILL SETUP CH 1 CH 2 CH 3 CH 4 POWER SLOW STOP MODE ZOOM FREZZE...

  • Page 18: Playback

    YBACK VIDEO RECORDING/PLAYBACK YBACK VIDEO RECORDING/PLAYBACK Playback To play back video In normal motion: When the system is inactive (neither PLAY/STILL recording nor running the OSD), pressing the Press to play PLAY/STILL button will start playing back back the the recorded video from the beginning (of the recorded video.

  • Page 19: To Control The Playback Motion

    VIDEO RECORDING/PLAYBACK VIDEO VIDEO RECORDING/PLAYBACK VIDEO Playback (Cont'd) To control the playback motion In normal playback Press the FWD button to fast forward the playback. The fast forward goes even faster each time you press the FWD button again. Press the REV button to rewind. The rewinding speeds up some more each time you press the REV button.

  • Page 20: Time Searching

    YBACK VIDEO RECORDING/PLAYBACK YBACK VIDEO RECORDING/PLAYBACK Playback (Cont'd) Time Searching When the system is playing back video, you can choose to view the video that was recorded during a certain period of time. Press the REC button while playing back video will display the Time Searching OSD on the screen as shown in the screen shot on the left hand side below.

  • Page 21: Playback Zooming

    VIDEO RECORDING/PLAYBACK VIDEO VIDEO RECORDING/PLAYBACK VIDEO Playback (Cont'd) Playback Zooming When the video is paused (frozen), pressing the SLOW button will bring the system into the Playback Zooming mode and the system will zoom in on the upper left corner of the screen and display it in the center of the screen. Press the SLOW button again to zoom in on the upper right corner of the screen, press the button again, the lower left corner, and again, the lower right corner.
  • Page 22 P OSD DVR SETUP OSD P OSD DVR SETUP OSD The DVR setup OSD allows you to do recording/playback related settings. There are five setup categories: File Management, System Timer Setting, Video Recording, Network, and Language. The structure of the DVR setup OSD is indicated as below: Main Manu Submenu or Setup page Setup page...

  • Page 23: Dvr Setup Osd

    DVR SETUP OSD DVR SE DVR SETUP OSD DVR SE File Management The File Management submenu allows you to manage the recorded data on your hard disk. The settings you can do under the File Management submenu is described as follows. (Main Menu) (File Management Submenu) To partition Hard Disk in mobile rack...

  • Page 24: To Erase Data From Mobile Rack

    P OSD DVR SETUP OSD P OSD DVR SETUP OSD To erase data from mobile rack Select Clear Data under <HD in Mobile Rack> and press the REC button. A warning message will then appear: This will erase all data... Holding down the button to perform the command.

  • Page 25: System Timer Setting

    DVR SETUP OSD DVR SE DVR SETUP OSD DVR SE System Timer Setting The System Timer Setting submenu allows you to set the time for your DVR system. (Main Menu) (System Timer Setting) Select System Timer Setting on the main menu and press the REC button (OK).

  • Page 26: Video Recording

    P OSD DVR SETUP OSD P OSD DVR SETUP OSD Video Recording The System Timer Setting allows you to set the time for your DVR system. Select Video Recording on the main menu and press the REC button (OK). A submenu will then be displayed on the screen as shown in the figure below.

  • Page 27: When Hard Disk If Full

    DVR SETUP OSD DVR SE DVR SETUP OSD DVR SE Video Recording (Cont'd) When Hard Disk is full..The Disk Full setup OSD allows you to determine the system's action when the Hard Disk is full. Selecting Overwrite Automatically and press the REC button (OK), the system will record new video over old video when the Hard Disk is full.

  • Page 28: Network

    P OSD DVR SETUP OSD P OSD DVR SETUP OSD Network The Network setup OSD allows you to setup for network connection. Select Network on the main menu and press the REC button (OK). The Network OSD will then appear on the screen as shown in the figure below. (Main Menu) (Network setup OSD) Pressing the REV (left arrow) or SLOW (right arrow) button will bring out the...
  • Page 29 REMOTE SURVEILLANCE REMO REMOTE SURVEILLANCE REMO Internet Access For the video from the monitored sites to be viewed on your computer browser, first you need to locate LTR-3100 at http://172.16.0.57:8080 (LTR-3100's temporary IP) set by the manufacturer while your computer is connected to the LTR-3100 through a hub.

  • Page 30: Remote Surveillance

    LANCE REMOTE SURVEILLANCE LANCE REMOTE SURVEILLANCE Set LTR-3100's IP You need to set LTR-3100's IP as assigned by your Internet service provider (ISP) to locate the surveillance website on the internet. Click on "MENU' on the left hand side of the Security DVR home page.
  • Page 31 REMOTE SURVEILLANCE REMO REMOTE SURVEILLANCE REMO Changing User Name and Password You might want to replace the default user name and password. To set a new user name and password, click "Set Password" on the menu page. The browser will go to the page for setting such settings. After entering your new username and password, click "OK".

  • Page 32: Fcc Statements

    MENTS FCC STATEMENTS MENTS FCC STATEMENTS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: ! This device may not cause harmful interference. ! This device must accept any interference received, including interference that may cause undesired operation.
