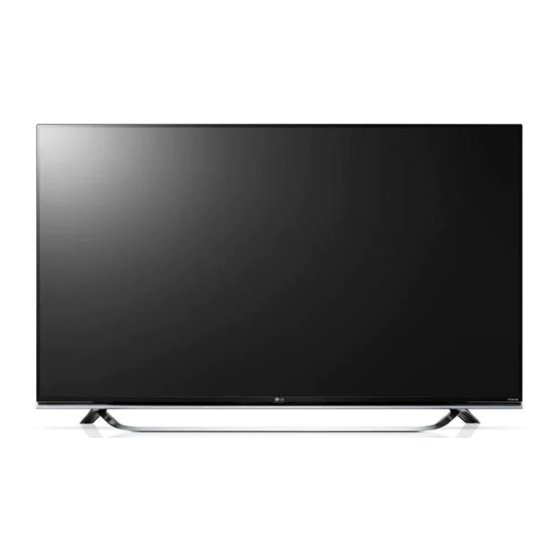

LG 49UB8500 Owner's Manual

Hide thumbs Also See for 49UB8500:

Advertisement

OWNER'S MANUAL
LED TV*
* LG LED TVs are LCD TVs with LED backlighting.
Please read this manual carefully before operating your TV
and retain it for future reference.
49UB8500
65UB9300
55UB8500
60UB8500
*MFL67987282*
55UB9500
55UC9700
65UB9500
65UC9700
P/NO : MFL67987282 (1409-REV04)
Click! User Guide
www.lg.com

Advertisement

Table of Contents
loading

Summary of Contents for LG 49UB8500

  • Page 1 OWNER’S MANUAL LED TV* * LG LED TVs are LCD TVs with LED backlighting. Click! User Guide Please read this manual carefully before operating your TV and retain it for future reference. 49UB8500 65UB9300 55UB9500 55UC9700 55UB8500 65UB9500 65UC9700 60UB8500 *MFL67987282* www.lg.com...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product. Read these instructions. WARNING/CAUTION Keep these instructions. Follow all instructions. RISK OF ELECTRIC SHOCK Heed all warnings. DO NOT OPEN •...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS • Protect the power cord from being walked on • CAUTION concerning the Power Cord or pinched particularly at plugs, convenience (Can differ by country): receptacles, and the point where they exit Check the specification page of this owner’s from the apparatus.
  • Page 4 If you smell smoke or other odors coming any way without written authorization from from the TV, unplug the power cord and LG Electronics. Unauthorized modification contact an authorized service center. could void the user’s authority to operate this •...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS • Dot Defect Preventing image burn or burn-in on your The panel is a high technology product with TV screen resolution of two million to six million pixels. In a very few cases, you could see fine dots on the screen while you’re viewing the TV.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS For USA and Canada FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 7: Viewing 3D Imaging (For 3D Models)

    IMPORTANT SAFETY INSTRUCTIONS Viewing 3D Imaging (For 3D models) WARNING Viewing Environment • Viewing Time - When watching 3D content, take 5 to 15 minute breaks every hour. Viewing 3D content for a long period of time may cause headache, dizziness, fatigue or eye strain. Those that have a photosensitive seizure or chronic illness •...
  • Page 8 Cautions when using the 3D glasses • Only use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly. • Do not use 3D glasses instead of your normal glasses, sunglasses, or protective goggles.
  • Page 9: Licenses

    LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com .
  • Page 10: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY MAKING CONNECTIONS INSTRUCTIONS Connecting to an Antenna or Cable Viewing 3D Imaging (For 3D models) Connecting to an HD Receiver, DVD Player, or VCR LICENSES - HDMI Connection - DVI to HDMI Connection - Connecting to a Mobile Phone OPEN SOURCE SOFTWARE - Component Connection...
  • Page 11: Installation Procedure

    INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING INSTALLATION PROCEDURE Open the package and make sure all the accessories are included. Attach the stand to the TV set. Connect an external device to the TV set. Make sure the network connection is available. You can use the TV network functions only when the network connection is made.
  • Page 12 ASSEMBLING AND PREPARING ASSEMBLING AND PREPARING Magic Remote, Owner’s Manual Power Cord Batteries (AA) (Depending upon model.) (Depending upon model.) (See page 33.) ( For 49/55/60UB8500, ( For 49/55/60UB8500, 65UB9300, 55/65UB9500) 65UB9300, 55/65UB9500) Stand Base, Stand Body Stand Screws HDMI Cable (See page 18.) 8 EA, M4 x L20 (Depending upon model.)
  • Page 13 ASSEMBLING AND PREPARING ( For 55/65UC9700) ( For 55/65UC9700) ( For 55/65UC9700) Stand Base, Stand Body Stand Screws Wall Mount Inner Spacers (See page 19.) 4 EA, M4 x L10 4 EA 4 EA, M4 x L20 (See page 21.) (See page 19.) ( For 55/65UC9700) Cable Management...
  • Page 14: Optional Extras

    The model name or design may be changed due to the manufacturer’s circumstances or policies. AG-F*** AG-F***DP AN-MR500 Cinema 3D Glasses Dual Play Glasses Magic Remote Tag On LG Audio Device AN-VC5** (Depending upon model.) Video Call Camera (Depending upon model.) 49/55/60UB8500 65UB9300 Compatibility...
  • Page 15: Parts And Buttons

    2. Joystick button is located behind the screen of TV. 3. Joystick button is located below the screen of TV. NOTE You can set the LG Logo Light or power indicator light to on or off by selecting GENERAL in the • main menu. (Depending upon model.)
  • Page 16: Using The Joystick Button

    ASSEMBLING AND PREPARING Using the Joystick Button You can operate the TV by pressing the button or moving the joystick left, right, up, or down. Basic functions When the TV is turned off, place your finger on the joystick button, press it once, Power On and release it.
  • Page 17: Lifting And Moving The Tv

    ASSEMBLING AND PREPARING Lifting and Moving the TV • Use at least two people to move a large TV. • When transporting the TV by When moving or lifting the TV, read the hand, hold the TV as shown in following to prevent the TV from being the following illustration.
  • Page 18: Setting Up The Tv

    ASSEMBLING AND PREPARING Setting Up the TV You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment center or other furniture. Attaching the Stand If you are not mounting the TV to a wall, use the following instructions to attach the stand. CAUTION •...
  • Page 19 ASSEMBLING AND PREPARING M4 x L20 4 EA When attaching the stand to the TV set, make sure to put the protective packaging that is included in the product box on a table or flat surface and then place the TV screen facing down on the protective packaging.
  • Page 20: Mounting On A Table

    ASSEMBLING AND PREPARING Mounting on a Table Securing the TV to a wall (optional) Lift and tilt the TV into its upright position on (Depending upon model.) a table. - Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation. 10 c m (4 in c h e s ) 1 0 c m...
  • Page 21: Mounting On A Wall

    We recommend that you • Do not over tighten the screws as this may use an LG brand wall mount. When you do not cause damage to the TV and void your use LG’s wall mount bracket, please use a wall warranty.
  • Page 22: Tidying Cables

    ASSEMBLING AND PREPARING Tidying Cables Gather and bind the cables with the Cable Holder and Cable Management. (For 49/55/60UB8500, 65UB9300, 55/65UB9500) Cable Holder Cable management (For 55/65UC9700) Cable Holder Cable management CAUTION • Do not move the TV by holding the cable holder and cable management, as the cable holders may break, and injuries and damage to the TV may occur.
  • Page 23: Making Connections

    MAKING CONNECTIONS MAKING CONNECTIONS You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to the manual provided with each device. NOTE •...
  • Page 24: Connecting To An Hd Receiver, Dvd Player, Or Vcr

    MAKING CONNECTIONS Connecting to an HD Receiver, DVD Player, or VCR Connect a HD receiver, DVD player, or VCR to the TV and select an appropriate input mode. NOTE • HDMI specifications may be different for each input port, so make sure to check the device specifications before connecting.
  • Page 25: Dvi To Hdmi Connection

    MAKING CONNECTIONS DVI to HDMI Connection Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an audio cable.
  • Page 26: Connecting To A Mobile Phone

    MAKING CONNECTIONS Connecting to a Mobile Phone Mobile High-definition Link (MHL) is an interface for transmitting digital audio/visual signals from mobile phones to television sets. NOTE • Connect the mobile phone to the HDMI (4K @ 60 Hz) / DVI IN 4 (MHL) port to view the phone screen on the TV.
  • Page 27: Component Connection

    MAKING CONNECTIONS Component Connection Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown in the following illustration. NOTE • If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color.
  • Page 28: Composite Connection

    MAKING CONNECTIONS Composite Connection Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown in the following illustration. NOTE • If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.
  • Page 29: Connecting To A Pc

    MAKING CONNECTIONS Connecting to a PC NOTE • Use an HDMI connection for the best image quality. • Depending upon the graphics card, DOS mode video may not work if a HDMI to DVI Cable is in use. • In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness.
  • Page 30 MAKING CONNECTIONS Method B: DVI to HDMI Connection (*Not provided) DVI OUT AUDIO OUT (*Not provided)
  • Page 31: Connecting To An Audio System

    MAKING CONNECTIONS Connecting to an Audio System You can use an optional external audio system instead of the built-in speaker. Digital Optical Audio Connection Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown in the following illustration.
  • Page 32: Connecting Headphones

    MAKING CONNECTIONS Connecting Headphones Listening to sound with headphones. NOTE • Do not use headsets (earphones) at high volume or for a long time. It may cause damage to your hearing. • AUDIO menu options are disabled when headphones are connected. •...
  • Page 33: Magic Remote Functions

    MAGIC REMOTE FUNCTIONS MAGIC REMOTE FUNCTIONS When the message Magic remote battery is low. Change the battery . is displayed, replace the battery. To install batteries, open the battery cover, replace batteries (1.5 V AA) matching ends to the label inside the compartment, and close the battery cover.
  • Page 34: Registering Magic Remote

    MAGIC REMOTE FUNCTIONS Registering Magic Remote Precautions to Take When Using the Magic Remote The Magic Remote operates by pairing with your TV. • Use the Magic remote within the maximum communication distance (10 m, 32.8 ft). How to register the Magic Remote Using the remote control beyond this distance, or with an object obstructing it, may To use the Magic Remote, first pair it...
  • Page 35: Using The User Guide

    DEVICE SETUP User Guide allows you to easily access detailed TV information. To obtain the external control device setup Press (Home) button to access the information, please visit www.lg.com . Home menu. Select User Guide and press the Wheel (OK) button.
  • Page 36: Specifications

    Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Storage Humidity Less than 85 % 49UB8500 55UB8500 MODELS (49UB8500-UA) (55UB8500-UA) 1,093 x 689 x 242 (mm) 1,233 x 766 x 260 (mm) With stand 43.0 x 27.1 x 9.5 (inch)
  • Page 37 SPECIFICATIONS 55UB9500 65UB9500 MODELS (55UB9500-UA) (65UB9500-UA) 1,232 x 782 x 260 (mm) 1,452 x 914 x 300 (mm) With stand 48.5 x 30.7 x 10.2 (inch) 57.1 x 35.9 x 11.8 (inch) Dimensions (W x H x D) 1,232 x 734 x 37 (mm) 1,452 x 858 x 37 (mm) Without stand 48.5 x 28.8 x 1.4 (inch)
  • Page 38: Maintenance

    MAINTENANCE / TROUBLESHOOTING MAINTENANCE Cleaning Your TV Clean your TV regularly to keep it at peak performance and to extend the product’s lifespan. CAUTION • Before cleaning, turn the power off and disconnect the power cord and all other cables. •...
  • Page 39: Child Safety

    CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES • Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable. • As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations.
  • Page 40 LG Customer Information Center Declaration of Conformity Trade Name: LG For inquires or comments, visit www.lg.com or call; Model: 49/55UB8500-UA, 60UB8500-UG, 65UB9300-UA, 55/65UB9500-UA, 1-800-243-0000 USA, Consumer User 55/65UC9700-UA 1-888-865-3026 USA, Commercial User Responsible Party: LG Electronics Inc. 1-888-542-2623 CANADA Address: 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U.S.A...
