Summary of Contents for AUSKAY Villa System
- Page 1 Installation and Operation Manual Villa System Indoor Monitor...
-
Page 2: Important Instruction

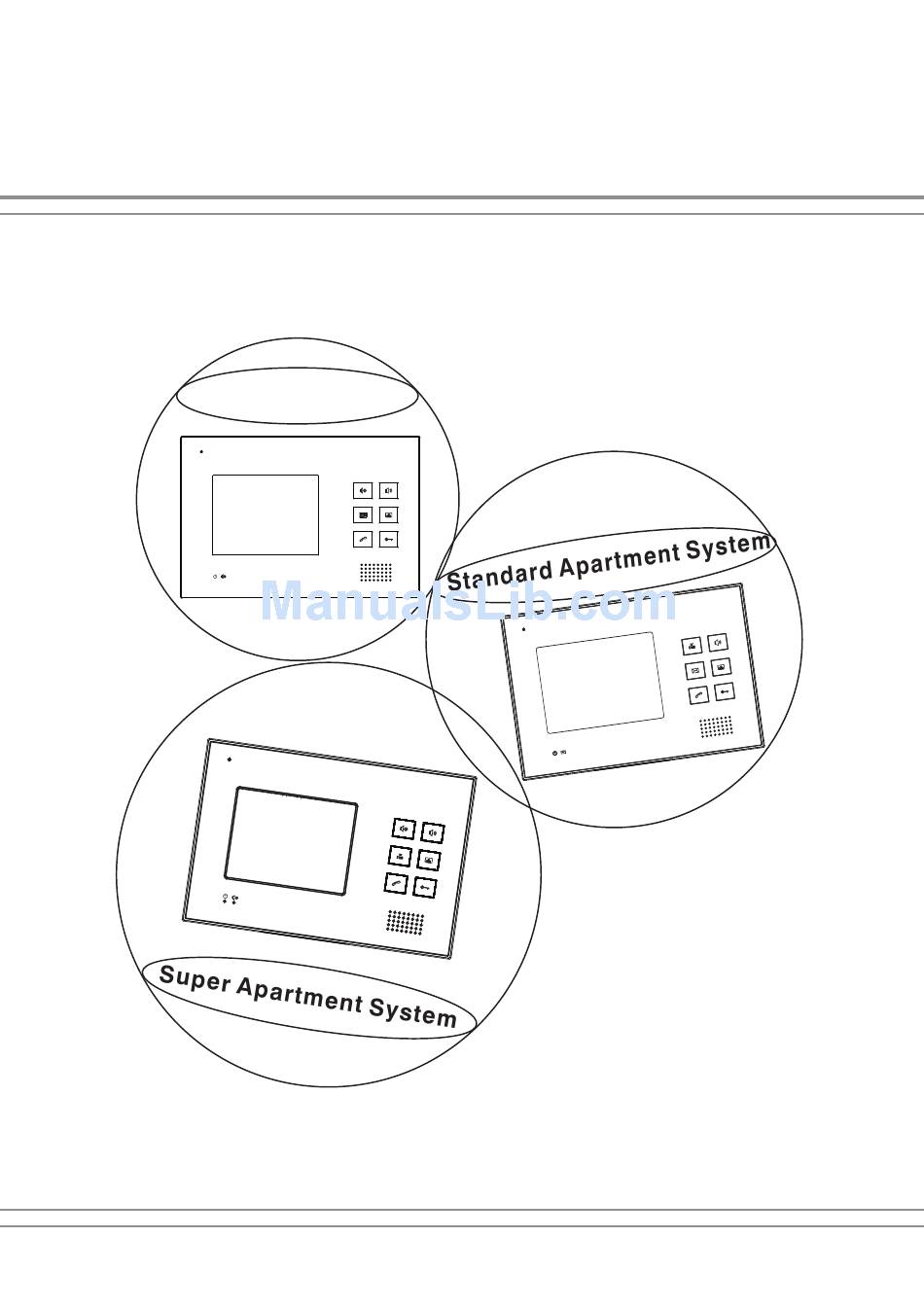

★ Important Instruction This operating manual includes three systems: 1. Villa System 2. Standard Apartment System 3. Super Apartment System As per your product, please read the content marked with Arrow Label. Arrow Label’s Icon:... - Page 3 Icons Icon Exegesis Mute Hands-free Extra camera Monitoring Calling Unlocking Brightness Contrast Volume Picture Microphone Extra camera Mute Screen Hands-free Monitoring Unlocking Calling Power LED Speaker Mute LED Volume adjuster Contrast adjuster Brightness adjuster...
-
Page 4: Basic Function
Basic Function 1. Monitor the entrance. 2. Remote control unlock. 3. Internal intercom between indoor monitors. 4. Mute the ringtone for 8 hours. 5. Can max. connect 2 pcs extra cameras. 6.Connect with telephone module, so that your outdoor panel can have intercom with telephone(optional). - Page 5 Mute the ringtone At standby mode press button to enter the mute mode, the indoor monitor ringtone will be muted for 8 hours confirmed by a lighting LED. After 8 hours, the indoor monitor will auto return to normal mode. During the mute status, press button to back to normal mode and the mute LED will be turn off.
-
Page 6: Internal Calling
Internal Calling If you’ve installed more than 1pc indoor monitor in your flat, you can have internal intercom. At standby mode, press button then press button to call, other indoor monitors will ring. The called indoor monitor can answer the call by pressing button. -
Page 7: System Configuration
System Configuration To next indoor monitor Indoor monitor 2 To AC wall outlet Telephone Module Adapter (optional) RJ11 Camera 1 Telephone Camera 2 Indoor monitor 1 Outdoor panel 2 To AC wall outlet Isolator module Camera 1 Camera 2 Outdoor panel 1 This system can connect maximum 6 pcs indoor monitors and 2 pcs outdoor panels(with isolator module). -
Page 8: System Diagram
System Diagram 1.Indoor monitor connect with outdoor panel, two extra cameras and the next indoor monitor. Camera 1 1.Red CH1 2.Black GND 3.Yellow GND 4.Green CH2 Camera 2 Indoor Monitor 4.Green AUDIO 3.Yellow VIDEO 2.Black GND 1.Red V+ Outdoor Panel Next Indoor Monitor S1:Ringback tone switch Function:... - Page 9 2 . I n d o o r m o n i t o r c o n n e c t w i t h t e l e p h o n e module(optional). To telephone module(CAT 5e) 8.Brown DATA 7.Brown&White GND 6.Green Audio...
-
Page 10: Installation
Installation 1. Choose a proper location to drill two holes on the wall. 50cm 2. Fix up the iron mounting bracket according to the position of the two holes. - Page 11 3. Connect the cable to the socket of the indoor monitor, then hang it on the bracket. Indoor Monitor 4. Pull downward the indoor monitor to complete the installation.
- Page 12 Notes Maintenance of devices 1. Keep the clearance of the surface and use soft dry cloth to clean the dust of the product. 2. Please turn off the power of indoor unit when clean the indoor device. 3. If there is hard dirty which cannot be cleaned with dry cloth, please use the soft towel dipped in the neutral diluted detergent to clean the machine and then clear it with dry cloth.
