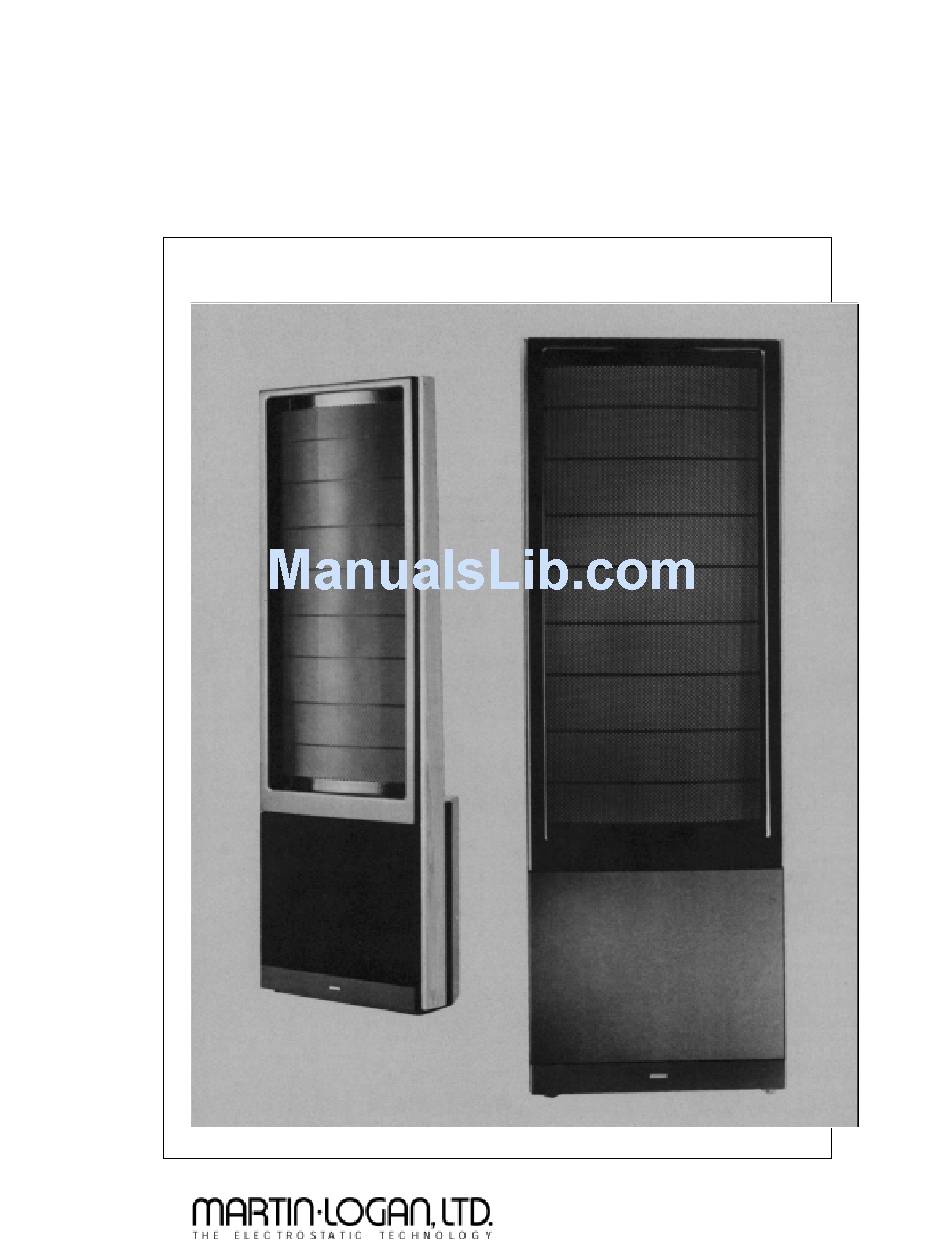

- Page 1 User's Manual The Monolith III Speaker System...
-
Page 2: Table Of Contents
Page2 Contents Introduction Installation in Brief Monolith III Specifications History Connection IIIp Connection IIIx Connection IIIx Operation IIIx Technical Description Room Acoustics Placement General Information The Electrostatic Concept Martin-Logan Exclusives Questions Troubleshooting Glossary Monolith III User's Manual... -
Page 3: Introduction
Monolith. So, in January of 1990 we introduced the MONOLITH III to the marketplace. With the MONOLITH III, we have ad- vanced the current state of the art in Monolith III User's Manual many areas of loudspeaker design. -
Page 4: Installation In Brief
Be consistent when connecting speaker leads to the terminals on the back of the MONOLITH III: take great care to assign the same color to the (+) terminal on both the left and right channels. If bass is nonexistent and you cannot discern a tight, coherent image, reverse the (+) and (-) leads on one side to bring the system into proper polarity. -
Page 5: Monolith Iii Specifications
Monolith III Specifications The MONOLITH III hybrid speaker system consists of a broad-range single element electrostatic transducer integrated with a quick-response woofer. This approach takes maximum MONOLITH III SPEAKER System Frequency Response System Frequency Response System Frequency Response System Frequency Response... -
Page 6: History
In 1947, Arthur Janszen, a young Naval engineer, took part in a research project for the Navy. The Navy was interested in developing a better instrument for testing microphone arrays. The test instrument needed an Monolith III User's Manual... - Page 7 Monolith III User's Manual surfaces by electrostatic forces. Due to these characteristics, electrostats have the inherent ability to produce a wide...
-
Page 8: Connection
Your Martin-Logan speakers have been designed to remain on continuously and should remain connected to a continuous AC power source. As mentioned earlier, power consumption of the MONOLITH III is very small and the life expectancy of its components will not be reduced by continuous operation. -
Page 9: Iiip Connection
AMPLIFIER SIGNAL binding posts of the Interface and the (-) wire to either of the black posts. Next, connect the IIIp INTERFACE to the MONOLITH III with the provided cables. See Figure 1. TWO: Bi-wire Connection for the... - Page 10 THREE: Passive Bi-amplification. THREE: Passive Bi-amplification. THREE: Passive Bi-amplification. THREE: Passive Bi-amplification. The MONOLITH III may be passively bi- amplified using the IIIp INTERFACE. You cannot use an external electronic crossover with the MONOLITH III (other than the IIIx CROSSOVER which re-...
- Page 11 Figure 3b Figure 3b Figure 3b: Vertical passive bi-amplification connection for the MONOLITH IIIp . Figure 3b Figure 3b Monolith III User's Manual low-pass section. To horizontally bi- horizontally bi- horizontally bi- horizontally bi- horizontally bi-...
-
Page 12: Iiix Connection
Monolith III User's Manual... -
Page 13: Power Connection
Next, connect the speaker leads from the high-pass amplifier to the HI SIGNAL INPUTS on the back of the MONOLITH III. Then connect the low- pass amplifier to the LO SIGNAL INPUTS. Please refer to the pictorial diagram, Figure 4 , at right. -
Page 14: Iiix Operation
+4.0 dB and like a jumbled +4.5 dB mess in the worst +5.0 dB of instances. The +6.0 dB front panel controls of the crossover can be used much like an accurate bass/ Monolith III User's Manual... - Page 15 MONOLITH III. Tuning Your Room Tuning Your Room Tuning Your Room Tuning Your Room Tuning Your Room One of the best ways to assess how...
-
Page 16: Iiix Technical Description
100 Hz and 500 Hz, empha- sizing 100 Hz (referred to as a shelving filter), another for decreasing energy at the speaker resonance (notch filter) and a third high-pass filter. Monolith III User's Manual... - Page 17 Figure 7: MONOLITH IIIx CROSSOVER block diagram of circuit. Figure 7 Figure 7 Monolith III User's Manual static element demands that the woofer be a fast, quick-to-change, well damped driver so that it will blend with the electrostatic transducers characteristics properly.
-
Page 18: Room Acoustics
Reflective Surfaces Reflective Surfaces your speaker system, will reflect those waves back into the room over and over again, confusing the clarity and imaging of your system. The smaller sound waves are mostly affected here and occur in the mid and high frequencies. - Page 19 Vertical Dispersion Vertical Dispersion Vertical Dispersion As you can see from the illustrations, your Monolith III speakers project a controlled dipersion pattern. Each Monolith is a four foot line source beginning two feet above floor level. This vertical dispersion profile minimizes interactions with the floor and the ceiling.
- Page 20 This allows the engi- neers at Martin-Logan to control the high frequency dispersion pattern of our transducers. That is why you see the gentle curve on our products. Monolith III User's Manual...
-
Page 21: Placement
In long rooms, naturally, that relationship changes. The distance between the speakers will be far less than the distance from you to the speaker system. However, in a wide room you will still find that if the... - Page 22 1. Tightness and extension of bass response. 2. The width of the stage. 3. The pin-point focusing of imaging. Once you have found the best of all three of those considerations, you will have your best speaker location. Monolith III User's Manual...
-
Page 23: General Information
Enjoy Yourself Enjoy Yourself Enjoy Yourself Enjoy Yourself The MONOLITH III is a very refined speaker and, as such, benefits from careful set-up. With the information in this manual in mind, you will find, over your months of listening, that small changes can result in demonstrable differences. -
Page 24: The Electrostatic Concept
This technique is known as push-pull operation and is a Stator Monolith III User's Manual... - Page 25 Figure 9. Figure 9. Figure 9. Notice the complexity due to the high number of parts. Monolith III User's Manual possible. When you look at the prob- lems of traditional electromagnetic drivers, you can easily see why this is so beneficial .
-
Page 26: Martin-Logan Exclusives
MONOLITH III MONOLITH III MONOLITH III which on the musical performance unlike the MONOLITH III MONOLITH III needs no crossover networks in the "critical zone". a division of the complex musical signal... - Page 27 This is also why you see the unique "see through" cylindrical shape of all Martin- Logan products. Monolith III User's Manual 3. Hybrid Technology 3. Hybrid Technology 3. Hybrid Technology 3. Hybrid Technology 3.
-
Page 28: Questions
We recommend that you not place your Monoliths in direct sunlight as the ultraviolet (UV) rays from the sun can cause deterioration of the electrostatic membrane. However, small exposures to UV should not cause a problem. Monolith III User's Manual... -
Page 29: Troubleshooting
These noises may be caused by dirt and dust particles collecting on the speaker, by high humidity or by AC line fluctuations that may occur in your area. Dirt and dust may be vacuumed off with a brush attachment connected to your vacuum cleaner or you may blow them off with compressed air. -
Page 30: Glossary
It is a combina- tion of resistance and reactance and is measured in ohms. Remember that a speaker’s impedance changes with frequency, it is not a constant Monolith III User's Manual... - Page 31 The difference is described by the term phase angle. Sine waves in Monolith III User's Manual phase reinforce each other; those out of phase cancel. Pink noise Pink noise...
- Page 32 $ 3.00 2001 delaware street, p.o. box 741, lawrence, kansas 66044, phone: 913.749.0133, fax: 913.749.5320 © 1989 Martin-Logan Ltd. All rights reserved.
