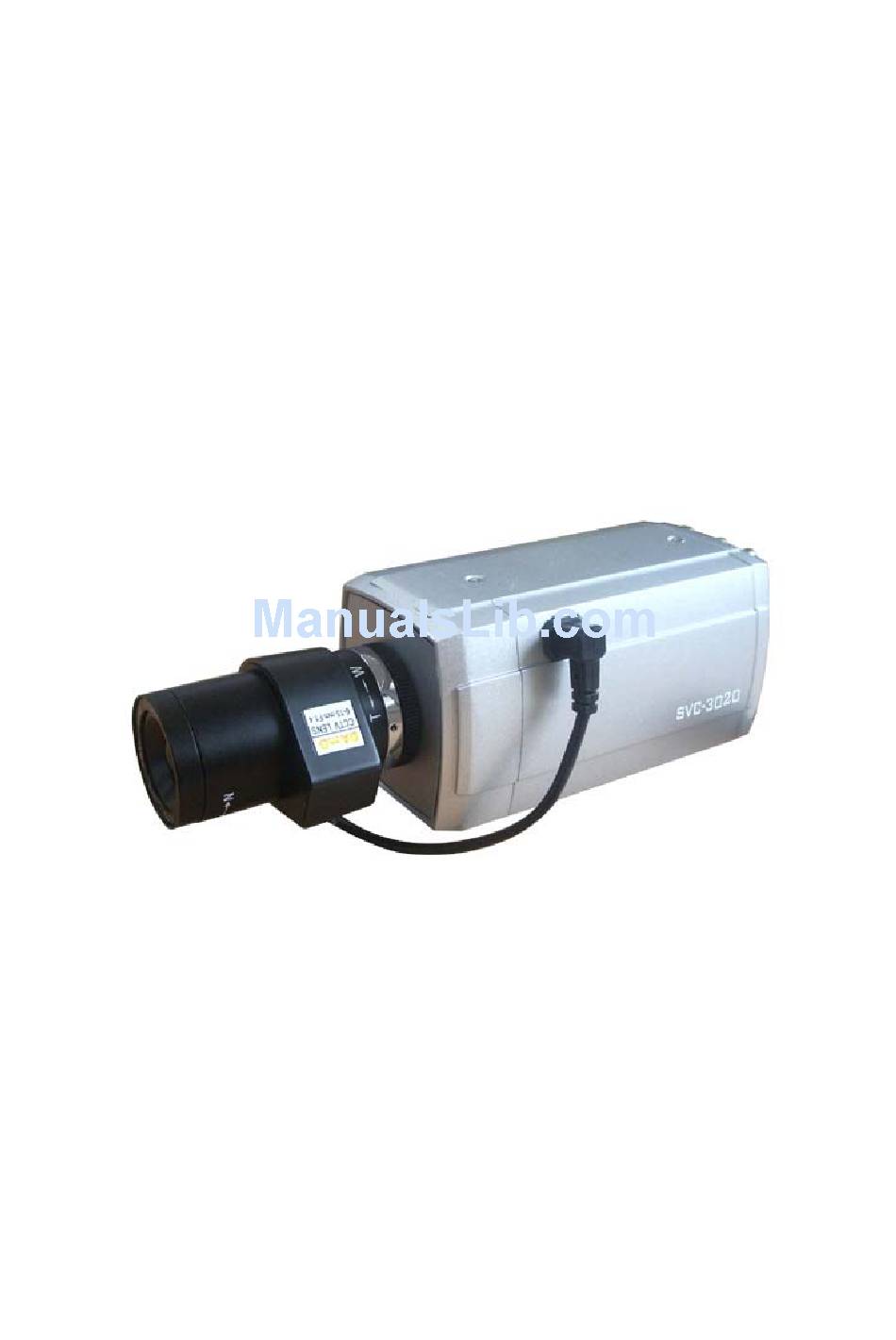

DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL
MPEG4/JPEG Network Camera
MODEL: SVC-3020 / 41NR (DN), SVC-3020 / 41PR (DN)
Full Manual (English)
Version 1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SVC-3020 / 41NR (DN) and is the answer not in the manual?

Questions and answers

Summary of Contents for Seorim Technology SVC-3020 / 41NR (DN)

  • Page 1 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL MPEG4/JPEG Network Camera MODEL: SVC-3020 / 41NR (DN), SVC-3020 / 41PR (DN) Full Manual (English) Version 1.0...
  • Page 2 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL Warning The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
  • Page 3 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL Warning This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL Precautions 1. HEED WARNINGS Adhere to all warnings on the appliance and in the operating instructions. 2. POWER SOURCES Operate this equipment only from the type of power source indicated on the label. If you are not sure of the type of power being used, consult your dealer or local power company.
  • Page 5 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 12. IMPORTANT NOTE TO THE INSTALLER This installation should be made by a qualified service person and should conform to all local codes. In order to provide this product with protection against risk of unintentional operation by employees, customers, janitors and cleaners working on the premises, and from falling objects, building vibrations and similar causes, it is recommended this product be enclosed in the tamper- resistant lock box.

  • Page 6: Table Of Contents

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL Table of Contents 1. Introduction of SVC-3020 ................... 8 1.1. Product Overview ..................8 1.2. Basic Function ..................... 8 1.3. Features ....................10 1.4. Packing Contents ..................11 1.5. System Requirements ................12 1.6.
  • Page 7 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 4.2.1. Screen Mode ..................39 5. Admin Setting Mode ..................41 5.1. General Setting ..................41 5.2. Encoder Setting ..................42 5.3. Event Setting ..................... 44 5.4. Network Setting ..................48 5.5.

  • Page 8: Introduction Of Svc-3020

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 1. Introduction of SVC-3020 1.1. Product Overview • About SVC-3020 The Intelligent Network Camera SVC-3020 provides advanced solutions for viewing, recording and retrieving video over computer networks, including the Internet. The SVC-3020 compresses Video, and then transmits the compressed video over computer networks at speeds up to 30 fps (25fps in PAL).
  • Page 9 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL • IP Filtering SVC-3020 can block the access from a particular IP address through IP filtering. Only the IP addresses recognized by the user can access the video server. • Embedded Motion Detection function SVC-3020 has an embedded sensor system that detects movements.

  • Page 10: Features

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 1.3. Features Network Board NTSC : D1 (704 X 480) at 30 fps / PAL : D1 (704 X 576) at 25 fps Monitor live video transmitted in real-time - Remote monitoring up to 120 fps live video - MPEG4/JPEG - Low network bandwidth requirement Simultaneous video and audio signal transmission...

  • Page 11: Packing Contents

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL Image Module ▶ SVC-3020 Sensitivity: 00.5Lux @40IRE, F1.2. 1/3" New Structure Super HAD Interline Transfer CCD Digital signal processing Superior color reproduction and very low smear Very low noise picture quality at all illumination ▶...

  • Page 12: System Requirements

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 1.5. System Requirements Operating System : Microsoft Windows® 2000 or Windows® XP CPU : Intel® Pentium®Ⅳ1.6Ghz or faster RAM : 512MB or higher VGA : AGP, Video RAM 64MB or higher Web Browser : Internet Explorer version 6.0 or higher Direct-X : 8.x or higher INPUT Voltage : DC 12V / 1A...

  • Page 13: System Configuration

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 1.6. System Configuration...

  • Page 14: Physical Description And Function

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 1.7. Physical Description and Function 1.7.1. Front View 1.7.2. Bottom View...

  • Page 15: Rear View

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 1.7.2. Rear View ① SETTING SWITCH ▶ SVC-3020 Left Right Flickerless ON Flickerless OFF Backlight Compensation Control Backlight Compensation Control Auto Light Control Mode Electronic Light Control Mode ALC – ELC Using Auto Iris Lens Shutter Speed 1/60~1/10,000 Shutter speed 1/60...
  • Page 16 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL ▶ SVC-3020-DN Left Right Day & Night OFF Day & Night ON D/H – D/L DSS Speed High DSS Speed Low * FL (Japanese * Flickerless ON * Flickerless OFF Type) (Japanese Type) (Japanese Type) Backlight Compensation Control...

  • Page 17: Basic Setup Of Svc-3020

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 2. Basic Setup of SVC-3020 2.1. How to use Lens Lens - Lenses are sold separately. Lenses such as an auto iris lens, CS-Mount lens and C-mount lens can be used. *Note* .

  • Page 18: Using C-Mount Lens

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL * SVC-3020 supports only DC iris Lens 4. Please replace the auto iris les connection plug cover and take off the CCD protection cap, and then attach the auto iris lens to the camera by screwing it in clockwise. 5.

  • Page 19: Using Cs-Mount Lens

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 2.1.3. Using CS-Mount Lens 1. Please take off the CCD protection cap and C-Mount adaptor. 2. Please attach the CS-Mount lens to the camera by screwing it in clockwise. *Note* - Please use the specified lens connection parts as shown in the picture below. The use of the wrong sized parts of the wrong size may cause damage to the inside of the camera or result in poor fitting.

  • Page 20: Installation

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 2.2. Installation • If you use Network LAN Card in your PC, you can connect the server directly to a PC with a Cross LAN Cable provided in the package. • On the assumption that both the user PC and SVC-3020 are used under static IP, and SVC-3020 is directly connected with the user PC or Local Network, the installation procedure is to be: ①...

  • Page 21: Network Setting Of A Pc

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 1) If you want to see the analog video, connect the monitor (LCD or CRT) with a Video Cable. (① of [Pic.2.2]) 2) In case of using the P/T/Z Controller, connect it with RS-485 Port (② of [Pic.2.2]) 3) Connect the SVC-3020 to a PC with a Cross LAN Cable.
  • Page 22 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 1) Go to ‘Start’ -> ’Settings’ -> ‘Control Panel’, then select ‘Network and Internet Connection’ 2) Click Local Area Connection...
  • Page 23 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 3) Check the properties of Internet Protocol [TCP/IP]...
  • Page 24 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL Network Setting of User PC 4) Setup IP Address, Subnet Mask and Gateway in the user PC with 192.168.1.50, 255.255.255.0 and 192.168.1.1 as it is shown in the picture above. • Caution - To activate SVC-3020, the user PC must have the same network setup status as it is preset in the SVC-3020.

  • Page 25: Operation Of The Web Viewer (Url 192.168.1.10)

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL • After network setting of a PC, you can verify the network status as following: 1) Go to ‘Start’ -> ‘Run’ ->input ‘cmd’ 2) When a DOS window appears as above, input ‘ipconfig' 3) The display shows the current network setting of a PC.
  • Page 26 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 3) Click ‘Install’. 4) When installation of ‘vg3xview_viewer' is completed, the initial Log-in Page appears. Authentication Page 5) When the Authentication Page appears, input ID and Password and click ‘OK’. - Default ID: admin - Password: Ser (‘S’:capital letter, ‘er’: small letter)
  • Page 27 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 6) And then when the Log-in Page appears, click ‘Connect’.
  • Page 28 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 1CH Web Viewer 5) The Web Viewer appears and images of the Camera display.

  • Page 29: Configuration Of Network Environment

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 3. Configuration of Network Environment 3.1. Check-up Network Environment and Installation Type ▶To install SVC-3020 properly, basic understanding of Network Environment is required. 1) Private line Environment In a huge complex such as Company, University, Research center, public IP addresses are generally used.

  • Page 30: Installation Without A Router

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL ▶There are two types of installation: 1) Install SVC-3020 without an IP sharing device (Router) : A router is not required, if a Cable Modem or Leased Line is used. 2) Install SVC-3020 with an IP sharing device (Router) : A router is required under PPPoE environment.
  • Page 31 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL Log-in Page of SVC-3020 Put ‘admin’ in ID and ‘Ser” in the Password line, click ‘Connect’.
  • Page 32 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL Setting Page 5) Click ‘Settings’, then ‘Setting Page’ displays. Select and click ‘Network Setting’. Select Network type (For SVC-3020 Fixed IP) Input default IP Address, Subnet Mask, default Gateway of SVC-3020. DNS Address should be given.

  • Page 33: Dns Setup

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL and a PC. 13) Connect SVC-3020 to a Local Area Network with a Straight LAN Cable. 14) Connect a PC to a Local Area Network with a Straight LAN Cable. 15) Video check Run a Web Browser on your PC, input default IP of SVC-3020 in URL and click ‘Enter’, - When Video is seen, SVC-3020 is correctly set up.

  • Page 34: Ports Setup

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 3.2.3. Ports Setup ▶ Network Setting -> ‘Ports’ -> - Set up Port number in each line of Port Setting. ▶ The default port number is preset as follows: (The user can change the port number, if necessary;...

  • Page 35: Installation With A Router

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 3.3. Installation with a Router Router 3.3.1. Network Setup with a 1) After checking Video, connect SVC-3020 to a PC with a Cross LAN Cable 2) Cable connection and Network Setup should be done as shown in ‘2.1. Installation and 2.2 network setting’.

  • Page 36: Check The Configuration Of A Router, Svc-3020 And Pc

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 3.3.2 Check the configuration of a ROUTER, SVC-3020 and PC ▶ Caution: GW of a PC and SVC-3020 must accord with the IP of the ROUTER Example: ROUTER SVG-3410 LAPTOP/ PC IP : 192.168.1.33 IP : 192.168.1.40 IP:192.168.1.50...

  • Page 37: Display Mode

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 4. Display Mode 4.1. Initial Log-in Screen 4.1.1. Installation of the Web Viewer 1. Internet Explorer browser starts. 2. When the ActiveX Code pops up, click ‘yes’, then a message window shows as below. 3.

  • Page 38: Initial Log-In Screen Of Svc-3020

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 4.1.2. Initial Log-in Screen of SVC-3020 ▶ Admin/User Login When the Log-in Page appears, input ID and Password and click ‘Connect’. Initial Log-in setting is: - Default ID: admin - Password: Ser (‘S’:capital letter, ‘er’: small letter) Caution: Only the Administrator is authorized to reset the 'Setting Values'.

  • Page 39: Live Page

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 4.2. Live Page 4.2.1. MPEG4 Screen Mode...
  • Page 40 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 4.2.2. JPEG Screen Mode To change the setting values, you can move into ‘SETTINGS’. In the ‘LIVE PAGE’, you can monitor video images transmitted from 1 channel.

  • Page 41: Admin Setting Mode

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 5. Admin Setting Mode 5.1. General Setting General Setting • Date/Time 1) Server Date : shows the date of operation 2) Server Time: shows real time of operation...

  • Page 42: Encoder Setting

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 5.2. Encoder Setting Encoder Setting...
  • Page 43 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL • MPEG-4 Encoder 1) Quality: You can adjust the quality of the live video. 30~2000kbps in the Frame mode 30~2000kbps in the GOP mode 2) Frame Rate: The frame rate can be setup. NTSC : 30, 15, 10, 7.5, 6 / PAL : 25, 13, 8, 6, 5 3) Resolution: The resolution of the live video can be setup.

  • Page 44: Event Setting

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 5.3. Event Setting...
  • Page 45 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL Event Setting • Generals 1) Pre Event dwell time: When an alarm occurs, recording time before the occurrence of the alarm can be setup. (0~30 sec.) 2) Post Event dwell Time: When an alarm occurs, recording time after the occurrence of the alarm can be setup.
  • Page 46 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL • FTP Server : The IP and directory of FTP server can be setup. The user ID/ and Password of FTP server can be setup. • E-Mail : The user can assign the E-mail address to receive the notification when an event occurs. To activate this functionality, SMTP, user ID, and user password should be properly setup as follows.
  • Page 47 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL ▶ Check up the following to operate email-sending function properly. • On the Motion Detect mode Activate Send E-mail function • On the E-Mail mode - E-Mail Address: input email address of the receiver - SMTP Address: input SMTP address of the sender * SMTP (Simple Mail Transfer Protocol): a protocol for sending e-mail messages between servers.

  • Page 48: Network Setting

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 5.4. Network Setting Network Setting • General: The IP, Broadcast, Netmask, Gateway, DNS1, DNS2, and SMTP can be setup.
  • Page 49 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL • Ports: The port number of HTTP Port, Option Port, Video Port, Audio Port, and Control Port can be setup. • ISP Option: - Input ISP ID - Input ISP Password •...

  • Page 50: Service Setting

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 5.5. Service Setting Service Setting • Version Information Firmware Version MAC Address: MAC address of a video server • Firmware Update How to update Firmware from a distance: 1) Download the newest software from the web site which provides the firmware update file and save it in a PC.

  • Page 51: Interface Setting

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL Caution: While update is in the process, do not close or re-open a window. Also power disconnection can cause fatal damage. 5.6. Interface Setting Interface Setting...
  • Page 52 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL • RS-485 1) Title: less than 16 letters 2) Protocol: Select a manufacturer of the camera or P/T/Z receiver. As the P/T/Z protocols are varied according to the manufacturers. It must be set up correctly. If not, P/T/Z function does not work properly. 3) Device ID: shows a unique ID of each camera 4) Capability: According to the type of camera, some specific features can be set up and operated.
  • Page 53 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL ▪ Iris : The camera lens has Iris function that optimizes the brightness of the screen ▪ Preset: The user can designate interesting places and give a number. The number can be saved on the preset mode.

  • Page 54: Motion Detect Setting

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 5.7. Motion Detect Setting Detection Area It can set up Motion Detection of SVC-3020. Use Motion Detect : with a click, the user can activate motion detection function. Sensitivity : It can set up the sensitivity of Motion Detection. Detection Area: It can set up Motion Detection Area.

  • Page 55: User Setting

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL 5.8. User Setting ID: Input user ID Password: Input user Password Auth: Select the user type (guest, operation User, Observer, Admin) Add: if you want to add a new ID on the user list, click ‘Add’ Modify: if you want to modify a user ID, click ‘Modify’...

  • Page 56: Appendix A. Connection Diagrams

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL APPENDIX A. Connection Diagrams • Connection with an LED as visual Indicator • Relay Connection...
  • Page 57 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL • Other Connection...

  • Page 58: Appendix B.technical Specification Of Svc-3020

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL APPENDIX B. Technical Specification of SVC-3020 Network Board NTSC Linux 2.4 Video Compression MPEG4 / JPEG Image Resolution Max. D1(704x480) Max. D1 (704x576) Frame rate 30fps@D1 25fps@D1 Video out Audio Compression G.711 PCM 64Kbps Bi-directional Network Protocol TCP/IP, DHCP.FTP, SMPT, HTTP, PPPoE, PPP, ARP...
  • Page 59 DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL ▶ SVC-3020 Image Module NTSC Image device 1/3" Sony New Structure Super HAD Color CCD Image Processor DSP (Digital Signal Processor) Effective Pixels 768(H) x 494(V) 752(H) x 582(V) TV system 2:1interlace Scan freq.

  • Page 60: Appendix C. Troubleshooting

    DUAL CODEC MPEG4 NETWORK CAMERA SVC-3020 (DN) FULL MANUAL APPENDIX C Troubleshooting Q. Video not displaying A. No electrical power: Check electrical connections A. Incorrect IP address: Check and correct the IP address A. User not authenticated: Check user ID and password A.
  • Page 61 Q. Cannot delete ST4 file A. Cannot delete recorded file (ST4) Files cannot be deleted while playing Stop playing and delete Seorim Technology Co., Ltd #1001, Daerung Technotown VI, 493-6, Gasan-Dong, Geumcheon, Seoul, Korea, 153-803 Tel: +82-2-2108-5860 Fax: +82-2-2108-5869 E-mail: sales@seorimtech.com...
