Summary of Contents for Applied Research and Technology’s AV Direct Artcessories

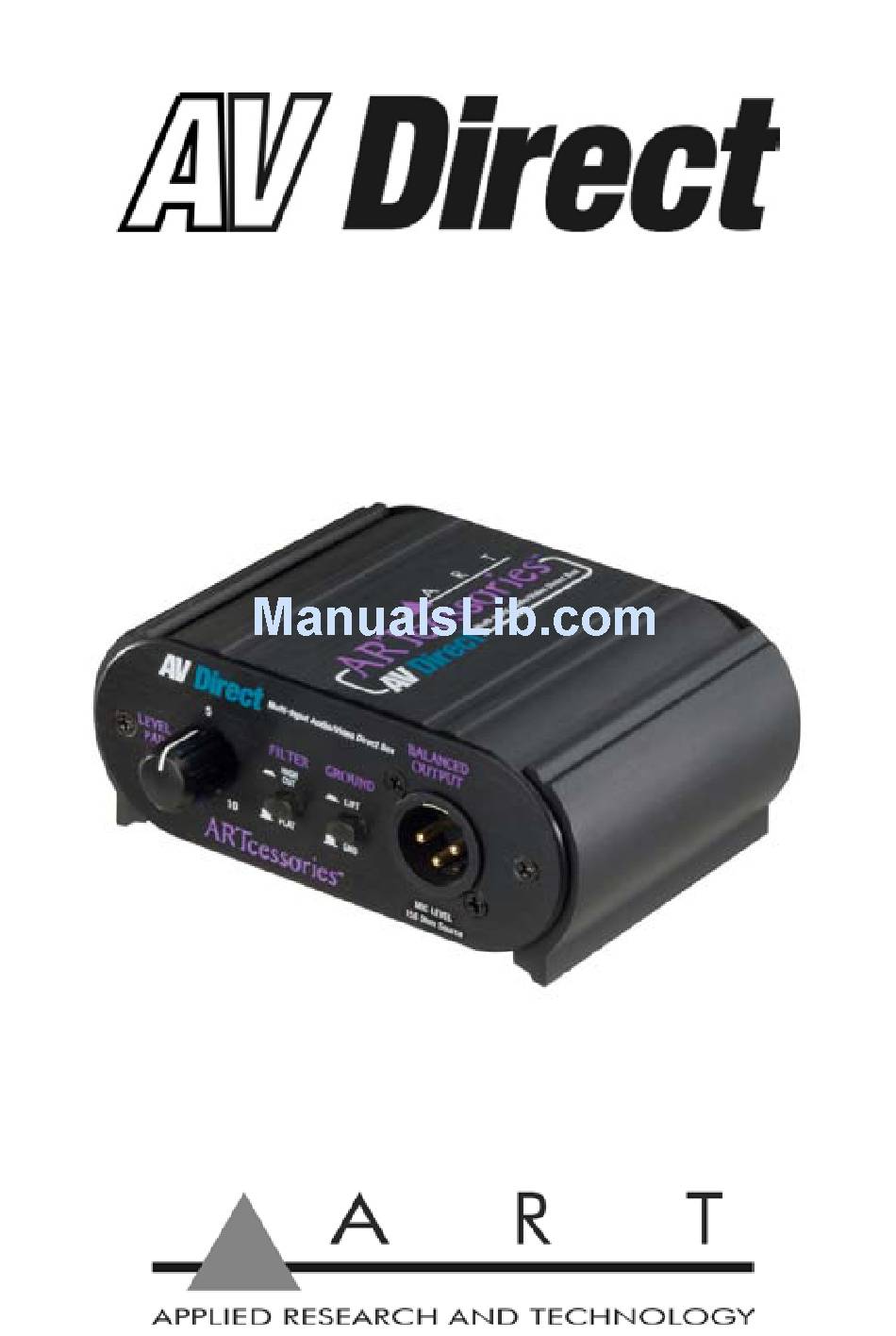

- Page 1 Multi-Input Audio/Video Direct Box Artcessories User's Manual...
-
Page 3: Important Safety Instruction - Read First
IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears, This symbol, whenever it appears, alerts you to important operating alerts you to the presence of and maintenance instructions in uninsulated dangerous voltage the accompanying literature. inside enclosure-voltage that may be Please read the manual. - Page 4 Installation: Install the unit in accordance with the instructions printed in the user guide.
- Page 5 INTRODUCTION: Thanks for purchasing Applied Research and Technology’s AV Direct, offering a superb level of sound quality. The AV Direct is the ideal solution for any application where stereo players, Laptop computers, consumer DVD players, consumer HiFi equipment or video machines have to be connected to a single XLR microphone level input.
- Page 6 FEATURES: • Transformer Isolated XLR Microphone Level Output • Frequency Response: 20 to 20 kHz • Stereo RCA, 1/8th-inch & 1/4-inch TRS Line Level Inputs • 1/4-inch & Pressure Clip Speaker Level Inputs • Variable Level Control • Switchable 4.8 kHz High-Cut Filter •...
-
Page 8: Specifications
SPECIFICATIONS: Line Level Inputs: 1/8 - inch TRS 1/4 - inch TRS, Stereo RCA Other Inputs: 1/4 - inch & Pressure post Speaker Level Inputs Max Speaker Input: 100 Watts rated @ 8 Ohms Output: XLR balanced Controls: Gain Control, Ground Lift, High - Cut Filter Active or Passive: Passive... -
Page 9: Warranty Information
WARRANTY INFORMATION: Limited Warranty (USA only) Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (ART) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase. - Page 10 or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific rights and you may have other rights, which vary, from state to state. The warranty terms listed above are only valid within the United States of America. For units purchased outside the United States, an authorized distributor...
- Page 11 SERVICE: The following information is provided in the unlikely event that your unit requires service. Be sure that the unit is the cause of the problem. Check to make sure that the unit has power supplied, that all cables are connected correctly, and that the cables themselves are in working condition.
- Page 12 the problem, preferably attached to the top of the unit. Also include a copy of your purchase receipt.
- Page 14 www.artproaudio.com E-mail: support@artproaudio.com © 2014 Applied Research & Technology AVDirect...
- Page 15 AVD-5004-101 V1.1...
