- Page 1 Installation and Operation Manual For TCP/IP Digital (700) System Model:HK5 Model:HK2 Model:HK12 Model:G8 Model:H3 Model:G5/G6 Model:G9 Indoor Monitor...
- Page 2 Remark Please follow the user manual for correct installation and testing, if there is any doubt please call our tech-supporting and customer center. Our company applies ourselves to reformation and innovation of our products. No extra informing for any change. The illustration shown here only used for reference, if there is any difference please take the actual product as standard product.
-
Page 3: Table Of Contents
CATALOG Product Features Technology Parameters Product Pictures Operations 1. Home security 2 Home control 3. Communication 4. Multi-media 5 System settings System Configuration System Diagram Installation instruction Notes... - Page 4 Product Features 7’ or 10’ Touch screen. 2. Friendly interface, easy use. 3. Intercom with Outdoor panel, flat panel and Management Center. 4. Support 8 alarm stations (Emergency, Smoke, Gas, IR, Magnetic contact for door or window). 5. Monitor Max. 8pcs IP cameras (ONVIF protocol). 6.

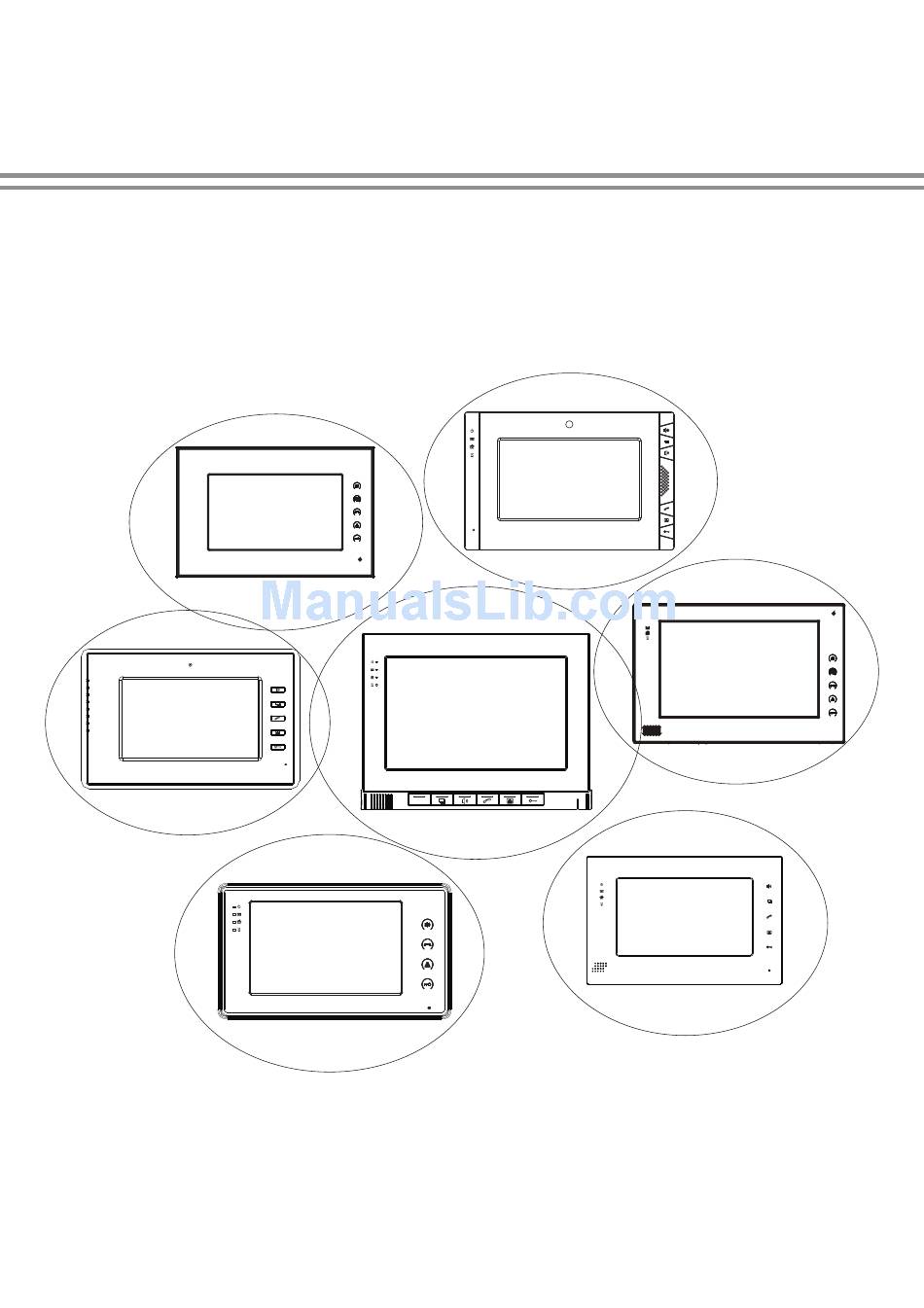

- Page 5 Pictures Model:G5/G6 Model:HK12 Model:HK2 Hand-free Power indicator Message indicator Photo frame Calling Alarm setting indicator Monitoring Alarm indicator Unlocking SD card port USB card port Microphone...
-
Page 6: Operations
Operations Main interface: Home Security, Communication, Home Control, Multi-media and System Settings. Status bar: Alarm status, Mute mode, Community message, and Network mark. Status bar instruction: Alarm status : it will flash and you’ll hear “DI-DI” tone when setting up, to indicate your alarm sensors will be actived after 100 seconds . -
Page 7: Home Security
1.Home Security Each indoor monitor can be connected with max. 8 alarm zones. Click icon the main interface, the system will enter the following interface. Three security alarm models for option: At home, Outside and Sleep. 1. 1 Alarm ON/OFF 1.1.1 To Alarm Click “At home”... - Page 8 1.1.3 Alarm OFF If the system is on “Alarm ON” mode and need to cancel the alarm, now you must input the user password with 4 digits (the default password is 1234). 1.2 Setting Click icon, then input the user password with 4 digits (the default password is 1234), the system will enter the following interface: Remark: If the system is on “Alarm ON”...
- Page 9 1.2.1 Alarm Type Click type input box, it will popup a dialog box as the following. In this interface, you can set your Type as: 24H, Normal and Emergency. 24H and Emergency type always active. 1.2.2 Delay Time Click delay time input box, it will popup a dialog box as the following interface, and it can be set up as t he following: 0s, 5s, 10s, 15s, 20s, 25s,40s and 60s.
- Page 10 1.2.3 Sensor Type Click sensor type input box, it will popup a dialog box such as the following interface. Each sensor type can be set up as: Smoke, Gas, PIR, Door, Window, Panic, Flood, Pull Cord and Bed Mat. 1.3 Scene Mode Click icon, input the user password with 4 digits(the default password is 1234), the system will enter into the following interface:...
- Page 11 IP Camera Click icon, the system will enter into the following interface: Click icon to select the IP Camera to monitor; Click icon to monitor. Click icon to cancel monitor. Remark: If the system is on “Alarm ON” mode, IP Camera cannot be operated. 2.Communication Click icon in the main interface to enter communication interface, it includes:...
- Page 12 2.2 Calling 2.2.1 Calling Indoor Monitor Input 1 to 4 digits + “Building”+1 to 2 digits + “Door”+1 to 4 room No., then click “Call” button. For example, you would like to call indoor monitor: 0001010807. You can input 1 and click “Building” icon, then input 1 and click “Door” icon, and then input room No.
- Page 13 Click “Unlock” to unlock the door click “Answer” to answer the call If one calls the monitor and no one answers, the system will snap the visitor’s image automatically. During the communication with the visitor, click “Snapshot” icon, the system will snap the visitor’s image.
- Page 14 It stores the calling records. The max. quantity of records is 20pcs. Click icon, the system will enter into the following interface: Click icon, the system will display the visitor’s image, click icon, it will be paused, click icon, the system will return to the previous interface. If video and audio are stored in the system, it also will be played.
-
Page 15: Home Control
3.Home Control Attention: Home control function should be connected with smart home module to use, otherwise this function is invalid. In the main interface, click icon. The system will enter into the Home control interface. 3.1 Scene Mode Click icon, the system will enter into the following interface: Scene mode includes: At home, Outside , Sleep, Party, and Cinema. - Page 16 3.3 Air-condition Click icon to enter the following interface: Set the air-condition switch of corresponding room. Click icon to cool; click icon icon to turn air-condition on/off; click icon to ventilate; click icon to heat. 3.4 Curtain Click icon in the home control interface, the system will enter into the following interface: Click icon, the curtain is open;...
- Page 17 3.5 Elevator Click icon to enter into the next page, then click icon , the system will enter into the following interface: 3.6 Room Settings Click icon to enter into room settings interface. 3.6.1 Room You can add, delete room data and alter the room name. The room types includes: Living, Dining, Master, Sub, Study, Kitchen, Corridor.
-
Page 18: Multi-Media
3.6.2 Lamp You can set the corresponding room’s lamp. The room includes: Mater, Study, Living and Kitchen. The lamp includes: Lamp, Wall, Ceiling, Table, Floor, Pendant, Crystal and Spot. Click to see all lamps. 8 lights can be set at most. 4 Multi-media 4.1 Voice message Click... - Page 19 4.2 Music player Click icon to select the file catalogue of SD card, then select the music folder. Select a song, then click icon to play it. Click icon to select songs. Click icon to stop playing the music. The playing type can be set: Chaos and Cycling.
-
Page 20: System Setting
Select one video, click full screen button to play in full screen; click the screen to quit it under the full screen mode. If it has incoming call during video playing, the video will pause. Then it will recover to playing breakpoint automatically to keep on playing the video after the call. - Page 21 5.1.1 Intercom The system supports video intercom between each indoor monitor, when the camera is set as ON, other indoor monitor’s users will see you, when it is set as OFF, they will not see you. 5.1.2 Date&Time You can set Time zone, Date and time. After setting, click to store it.
- Page 22 5.2 Others Clic icon, the system will enter other settings interface. 5.2.1 Sound You can set System and In-call volume, also set Ring and Press type. 5.2.2 Use PSW You can set new user password. The default password is 1234. User password is used for Home security.
- Page 23 5.2.3 Adjustment You can set Brightness and Contrast. 5.2.4 GUI You can select the background color you want. -21-...
- Page 24 5.3 LAN Click icon, the system will enter into the following interface (please refer to the installation instruction) 5.4 Room No. Click icon, the system will enter into the following interface (please refer to the installation instruction) -22-...
- Page 25 5.5 VOIP Click icon, the system will enter into the following interface (please refer to the installation instruction) 5.6 Upgrade Click icon, the system will enter into the following interface (please refer to the installation instruction) -23-...
- Page 26 5.7 Version Click icon to see the related version information of this device. 5.8 Adjust Screen Warning: End users are not allowed to set this menu, please ask for your installer for assistance. When you touch the screen and find the icons cannot react normally, please make the screen calibnation by yourself.
-
Page 27: System Configuration
System Configuration Next Network Switch Smart home control module (optional) Alarms(optional) Siren(optional) Network Switch Adapter Adapter Network Switch Adapter Indoor monitor Indoor monitor Management center Outdoor panel Computer RVV2x0.75 RVV3x0.5 UPS-DP/P Lock... -
Page 28: System Diagram
System Diagram Siren To network switch CAT-5e Adapter Smart home control module -2 - 6... - Page 29 1.The alarm sensor is normally-open: 传感器 Sensor 2.2K(1/4W) Resistor 传感器 Sensor 2.2K(1/4W) Resistor 传感器 Sensor 2.2K(1/4W) Resistor 传感器 Sensor 2.2K(1/4W) Resistor 传感器 Sensor 2.2K(1/4W) Resistor 传感器 Sensor 2.2K(1/4W) Resistor 传感器 Sensor 2.2K(1/4W) Resistor 传感器 Sensor...
- Page 30 2.The alarm sensor is normally-close: Sensor 2.2K(1/4W) Resistor Sensor 2.2K(1/4W) Resistor Sensor 2.2K(1/4W) Resistor Sensor Sensor 2.2K(1/4W) Resistor 传感器 Sensor 2.2K(1/4W) Resistor Sensor 2.2K(1/4W) Resistor Sensor 2.2K(1/4W) Resistor Sensor 2.2K(1/4W) Resistor -28-...
-
Page 31: Installation Instruction
Installation Instruction Model:G5/G6 Screw 86 model embedded box （G5） SIZE:221*145*23.5 ） 221*145*21.5（G Screw 86 model embedded box -29-... - Page 32 Model:G8 Screw 86 model embedded box Screw 86 model embedded box -30-...
- Page 33 Model:HK12 Screw 86 model embedded box Model: HK2 Screw 86 model embedded box...
-
Page 34: Notes
Notes Safety Precautions 1.Please read product description carefully before installation and operation. 2.Do not install the unit in hot and moist area. 3.Do not use the wet dishcloth or volatile solvent alcohol, benzene, thinner and corrosive solution .etc to clean it. Use soft cloth to clean it gently. 4.Do not drop, knock or shake the unit.
