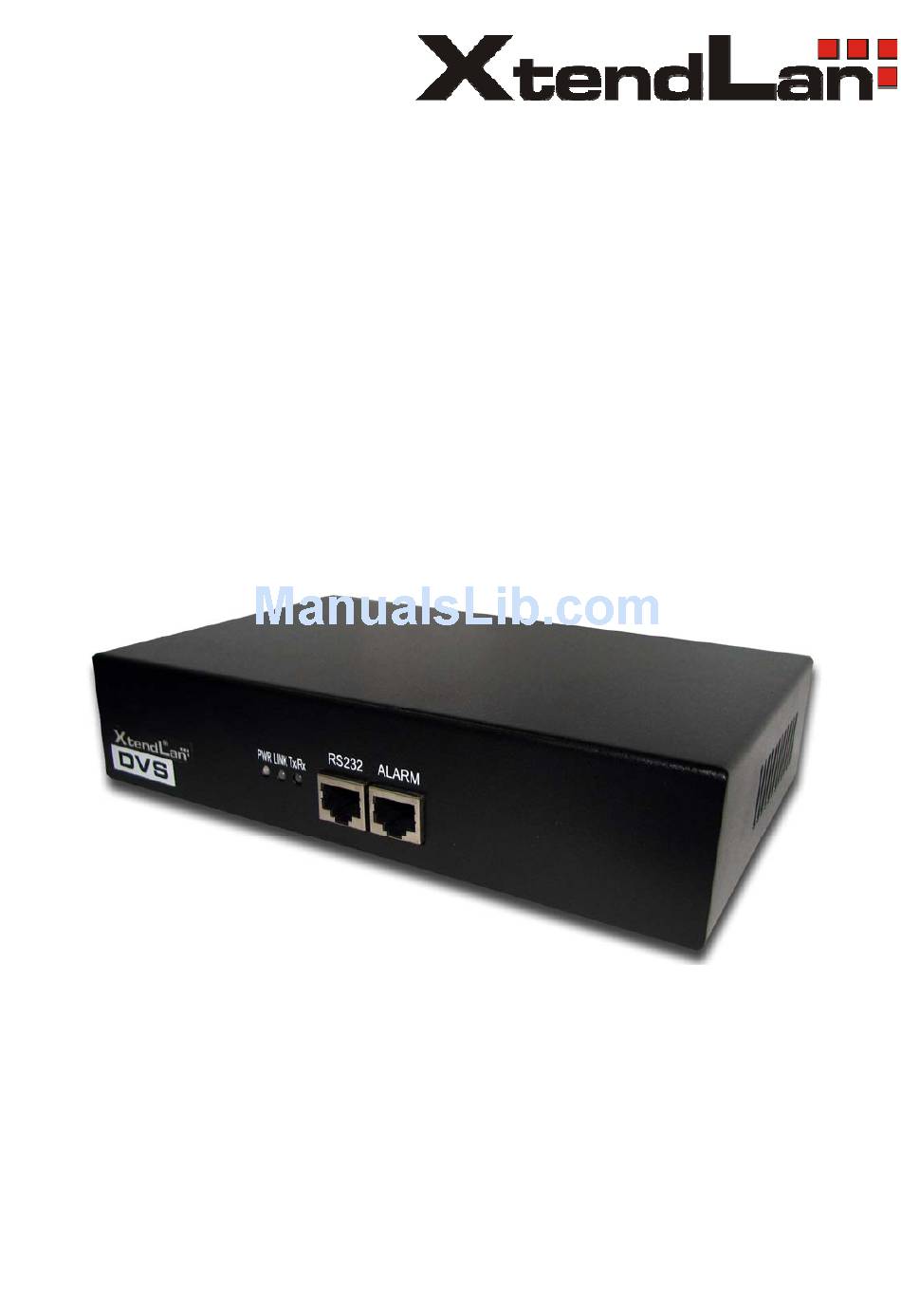

- Page 1 IVS-170BD IVS-170BE Net digital video server User’s Guide...
-
Page 2: Table Of Contents
....................18 HELL OMMAND AND ERVER 4.2 U ..................20 LIENT OFTWARE TO UPGRADE FIRMWARE CHAPTER 5 FREQUENT ASK QUESTIONS..................21 APPENDIX A IVS-170BD SPECIFICATIONS.................... 22 APPENDIX B IVS-170BE SPECIFICATIONS .................... 23 APPENDIX C GOOD LIST........................... 24 Total Page ２... - Page 3 Thanks for purchase the products of our company. If you have any request or questions, please contact us immediately. This manual is applicable for IVS-170BD/BE Decoding Video Server This manual may contain some technically incorrect places or printing errors. This manual will be updated on a regular basis without additional specific notice.
-
Page 4: Version Description
User Manual of Embedded Net DVS Version Description Version1.5: To be matched with Version1.5 encoding DVR and DVS. Version1.4: To be matched with Version1.4 encoding DVR and DVS. - 4 -... -
Page 5: Chapter 1 Introduction
User Manual of Embedded Net DVS Chapter 1 Introduction IVS-170BD/BE series video server adopts embedded real-time multi-task operation system (RTOS) and embedded processor, which is completely independent of PC platform and, efficiently improves system performance. Firmware is burned in FLASH, makes the system more steady and reliable. -
Page 6: Chapter 2 Installation
Panel description Front panels： IVS-170BD/BE Front Panel Interface Instruction (From left to right in turn) Power supply indicator lamp; - 6 -... - Page 7 4 Sensor alarm input and 2 replay output interface; USB interface (reserved). Back panel： IVS-170BD Rear Panel IVS-170BE Rear Panel Interface Instruction（From left to Right in return） ： For IVS-170BE, there is video input connector on the left side of video output;...
-
Page 8: The Pin Definition Of Physics Interfaces
User Manual of Embedded Net DVS The pin definition of physics interfaces 2.3.1 PIN definition of RS-232 port The Decoder has one RS232 standard serial interface, with RJ-45 connector. Its pin definition is as follows (‘I’ means input, and ‘O’ means output): (1) When the RS232 interface of the DVS connects with the DTE equipment, one end of the cable is the 8-pin RJ45 connector (to DVS) and... - Page 9 User Manual of Embedded Net DVS (2) 25-pin to 9-pin converter’s internal connection is like this: (3) If you don’t want to use 25-pin to 9-pin convertor to connect DVS and DTE through RS232 interface, you must use RJ45-DB9 cable. Its internal connection description is: (4) When the RS232 interface of the DVS connects with the DCE (such as MODEM), one end of the cable is the 8-pin RJ45 connector and...
-
Page 10: Pin Definition Of Rs485 Port
User Manual of Embedded Net DVS the other is the DB25 male connector. Below is the description of the internal connection between RJ45 and DB25: 2.3.2 PIN definition of RS485 port Pin5 ---- TX+/RX+ Pin 6 ----- TX-/RX- 2.3.3 PIN definition of Ethernet port (1) PIN definition of the direct network cable connecting Decoder and network HUB or switch: - 10 -... - Page 11 User Manual of Embedded Net DVS (2) PIN definition of the cross network cable connecting Decoder and host PC: - 11 -...
-
Page 12: Chapter 3 Video Server Setup
User Manual of Embedded Net DVS Chapter 3 Video Server Setup There are three kinds of methods to configure the parameters of video server. 1. Through Hyper Terminal (connect Decoder with the PC through RS-232 serial ports) 2. Through client-end application software (connect Decoder with PC through network) Parameter Setup through RS-232 serial port Mainly set up IP parameters of the video server through serial port. - Page 13 User Manual of Embedded Net DVS Step2: To name the connection name and to define the icon. Input a name (e.g. aa), select a icon, press “OK”, the dialogue box like Fig. 3.1.2 appears. Fig. 3.1.2 select communication port Step 3”: to select the communication port. Select “com1” communication port in Fig3.1.2, press “OK”, the dialogue box as Fig.
- Page 14 User Manual of Embedded Net DVS Fig. 3.1.4 Hyper Terminal Interface Step 5: To close the window, the Fig. 3.1.5 will appear. Select “Yes” and Fig. 3.1.5 will appear. Select “Yes” again to have the Fig. 3.1.6 Fig. 3.1.5 to disconnect Fig.
-
Page 15: Shell Commands Under Hyper Terminal
User Manual of Embedded Net DVS 3.1.2 Shell Commands Under Hyper Terminal Please use the DTE cable and the DB9/DB25 convertor to connect PC with DVS RS-232 port. Step 1: Enter into the Hyper Terminal. Click “ Start”→ “Programs”→ “Accessories”→ “Communications”→... - Page 16 User Manual of Embedded Net DVS getIp Function：to get the fixed IP, subnet mask, gateway, command port, IP address of PPPoE dialup (the IP address of PPPoE will be 0.0.0.0 if there is no dialup or dialup is not successful). Parameter: none.
-
Page 17: Ptz Control
User Manual of Embedded Net DVS 3.2 PTZ control Step1: Connect Decoder RS-485 interface with PTZ. Please refer to RS-485 pin definition. DVS just uses Pin5 (TX+) and Pin6 (TX-) to send PTZ control command. Step2: You can use remote client software to setup PTZ protocol. In client software remote setup dialog box, select “Serial Para”... -
Page 18: Chapter 4 Upgrade Firmware
User Manual of Embedded Net DVS Chapter 4 Upgrade Firmware There are two methods to upgrade the Decoder firmware. One is using shell commands to ask Decoder to download firmware from FTP server. The other is using PC client software. Use Shell Command and FTP Server 1. - Page 19 User Manual of Embedded Net DVS the firmware from ftp server. - 19 -...
-
Page 20: Use Client Software To Upgrade Firmware
User Manual of Embedded Net DVS 4.2 Use Client Software to upgrade firmware In the system setup dialog of DVRDVS client software (refer to client software user manual), there is a button named “Upgrade”: Select the DVRDVS, Click “Upgrade” button, the following dialog box will be appeared: Fig.4.21 remote upgrading Click “Browse”... -
Page 21: Chapter 5 Frequent Ask Questions
User Manual of Embedded Net DVS Chapter 5 Frequent ask questions 1, Failure to control PTZ It is possible that the camera and equipment are not connected through RS485 port, or the wrong configuration of the decoder. 2，certain individual channel picture is un-normal Please check whether the video cable is well connected with the camera and the Embedded DVS 3，Possible reasons which can cause the failure of upgrading... -
Page 22: Appendix Aivs-170Bd Specifications
User Manual of Embedded Net DVS Appendix A IVS-170BD Specifications Model name IVS-170BD Decoder Hardware decoding PAL: 704*576(4CIF) NTSC: 704*480(4CIF) resolution PAL: 528*384(DCIF) NTSC: 528*320(DCIF) PAL: 704*288(2CIF) NTSC: 704*240(2CIF) PAL: 352*288(CIF) NTSC: 352*240(CIF) PAL: 176*144(QCIF) NTSC: 176*120(QCIF) 1 channel BNC (1.0Vp-p, 75Ω) -
Page 23: Appendix Bivs-170Be Specifications
User Manual of Embedded Net DVS Appendix B IVS-170BE Specifications Model name IVS-170BE Encoder & Decoder Compression standard H.264 Compress resolution PAL: 704*576(4CIF) NTSC: 704*480(4CIF) PAL: 528*384(DCIF) NTSC: 528*320(DCIF) PAL: 704*288(2CIF) NTSC: 704*240(2CIF) PAL: 352*288(CIF) NTSC: 352*240(CIF) PAL: 176*144(QCIF) NTSC: 176*120(QCIF) 1 channel BNC (1.0Vp-p, 75Ω) Video input 1 channel BNC (1.0Vp-p, 75Ω) -
Page 24: Appendix Cgood List
User Manual of Embedded Net DVS Appendix C Good List One piece of DS- 6000DI or IVS-170BE decoding server; A CD contains client application; One power supply voltage stabilizer A 220V power cable; A cable connecting RS232 with DTE; A DTE cable - 24 -...
