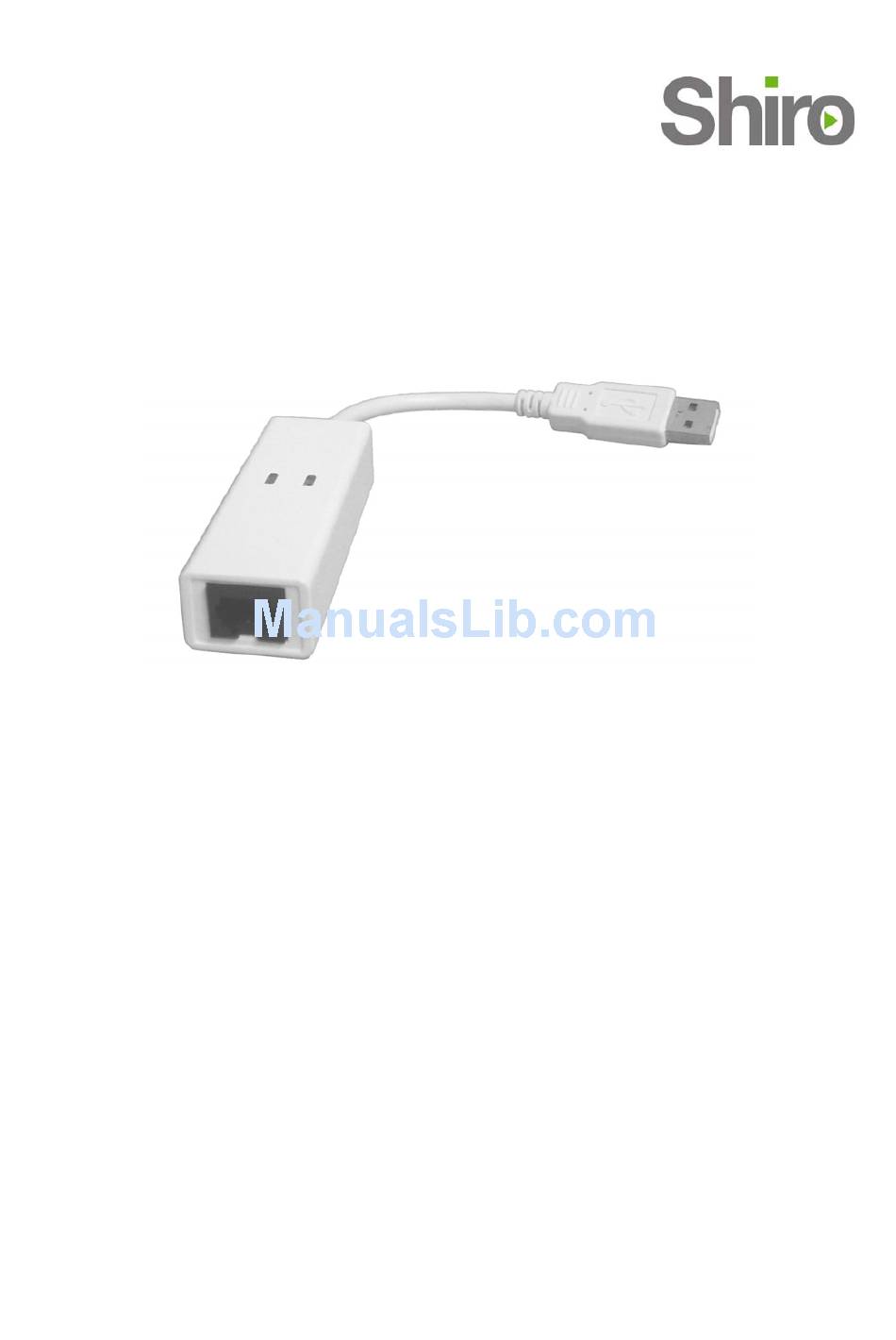

- Page 1 Easy Start Guide 56K USB Modem...
- Page 2 Easy Start Guide © Copyright 2007 All rights reserved. No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express written permission.
-
Page 3: Table Of Contents
Easy Start Guide Contents About the Product..............4 System Requirements ................4 Software ..........................4 Hardware .........................4 Device Design..................5 Getting Started................6 Check Package Contents ..............7 Connect the Device ................7 Install Driver and Connect to the Internet...........8 For Windows Vista......................8 For Windows XP......................9 For Windows 2000 ......................11 For Windows ME ......................13 For Windows 98SE......................14 Page 3 of 16... -
Page 4: About The Product
Easy Start Guide About the Product Thank you for purchasing this product. With this 56K USB Modem, you can perform a comprehensive range of modem-related functions that include downloading of graphic-intensive web pages, streaming high bandwidth audio/video, and receiving large-file size software programs at speeds of up to 56Kbps, including sending and receiving fax. -
Page 5: Device Design
Easy Start Guide Device Design In Use Power Line Label Status Description POWER No power is supplied to the device Steady light Power is detected In Use No activity Steady light Data is being transmitted/received Used for connecting to the computer Line Used for connecting to the telephone line via telephone cable Page 5 of 16... -
Page 6: Getting Started
Easy Start Guide Getting Started Setting up the device is easy. The flowchart below provides an outline of the steps you need to go through. There are brief descriptions beside each step to help you along. Detailed instructions are provided in the subsequent pages. Page 6 of 16... -
Page 7: Check Package Contents
Easy Start Guide Check Package Contents For any missing items, please contact your dealer immediately. 56K USB Modem Easy Start Guide Resource CD Telephone cable Connect the Device To connect the 56K USB Modem: 1. Connect one end of the telephone cable to the telephone jack and the other end to the 56K USB Modem’s LINE port. -
Page 8: Install Driver And Connect To The Internet
Easy Start Guide Install Driver and Connect to the Internet A driver software allows your device to communicate with the other components and application in the computer. After installing the driver, you can connect to the Internet. For Windows Vista Note: Connect the device before proceeding with these steps. -
Page 9: For Windows Xp
Easy Start Guide c. Enter the Password d. Enter Connection Name e. Select Allow other people to use this connection to share this connection with other computer user accounts 6. Click Connect. For Windows XP To install the driver software: Note: Connect the device before proceeding with these steps. - Page 10 Easy Start Guide To connect to the Internet: 1. Select Start > Connect To > Show All Connections. This opens Network Connections. 2. Click Create a new connection under Network Tasks. 3. Click Next when the New Connection Wizard opens. 4.
-
Page 11: For Windows 2000
Easy Start Guide For Windows 2000 Note: Connect the device before proceeding with these steps. To install the driver software: 1. Click Next when the Found New Hardware Wizard opens. 2. Select Search for a suitable driver for my device (Recommended) and then click Next. 3. - Page 12 Easy Start Guide To connect to the Internet: 1. Select Start > Settings > Network and Dial-Up Connections. This opens Network and Dial-Up Connections. 2. Right-click Make New Connection and select Make New Connection. This opens the Network Connection Wizard. 3.
-
Page 13: For Windows Me
Easy Start Guide For Windows ME Note: Connect the device before proceeding with these steps. To install the driver software: 1. When the Add New Hardware Wizard opens, Select Specify the location of the driver (Recommended) and then click Next. 2. -
Page 14: For Windows 98Se
Easy Start Guide 7. Enter your User name and Password. 8. Click Connect. For Windows 98SE Note: Connect the device before proceeding with these steps. To install the driver software: 1. Click Next when the Add New Hardware Wizard opens. 2. - Page 15 Easy Start Guide To connect to the Internet: 1. Right-click My Computer on the desktop and then select Open. 2. Right-click Dial-Up Networking and then select Open. 3. Right-click Make New Connection and then select Open. This opens Make New Connection. 4.
-
Page 16: Safety Precaution
Easy Start Guide Safety Precaution For your safety, be sure to read and follow all warning notices and instructions. Do not remove the device from its protective bag until you are ready to install it. Do not attach electronic components on the device. Static electricity can cause permanent damage to the device.
