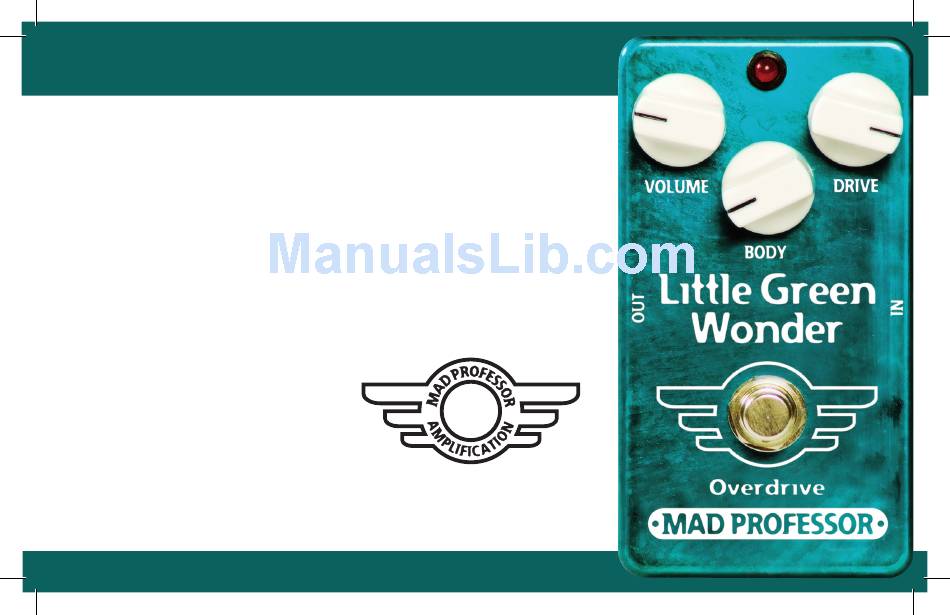

Mad Professor LITTLE GREEN WONDER Owner's Manual

Table of Contents

Download this manual

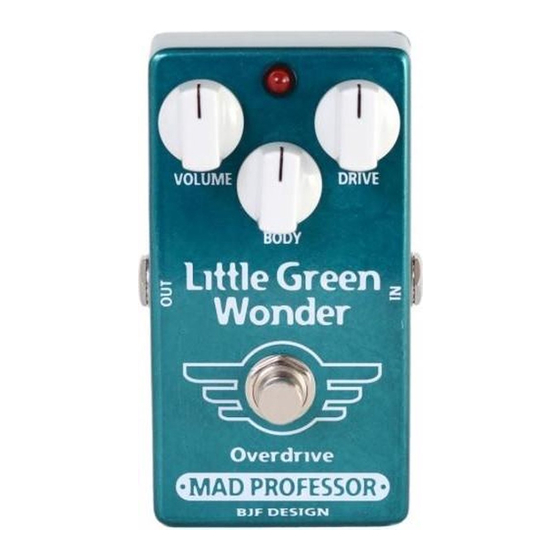

mad Professor Little Green wonder

eLeCtriCAL sPeCiFiCAtion:

• Z in at 1 kHz: app. 500K

• Pout 1 kHz in 50k: app. 0uW70 RMS

• Max load: app. 10K

• Max output: 3V peak

• Max current consumption: 4 mA at 10V

• Upper freq. -3 dB: app. 10KHz

• Max gain at 1KHz: app. 58 dB

• Max input signal: 3V peak

• Supply Voltage range: 7.5V-18V

6F22 9V battery or DC eliminator 2.1 mm plug

center negative and positive sleeve

LGW is protected against wrong DC eliminator

polarity. Fuzzy sound is a sign of low voltage.

Maintain recommended voltage for best results.

The manufacturer claims that the above mentioned

product fulfils the requirements as set by

EN 55 013, EN 55 020, EN 60 555-2 and

EN 60 555-3, RoHS and WEEE

Mad Professor pedals carry a 1 year limited warranty

This product is manufactured by

MAd PRofeSSoR AMPlificAtion ltd

Finland

www.mpamp.com • info@mpamp.com
