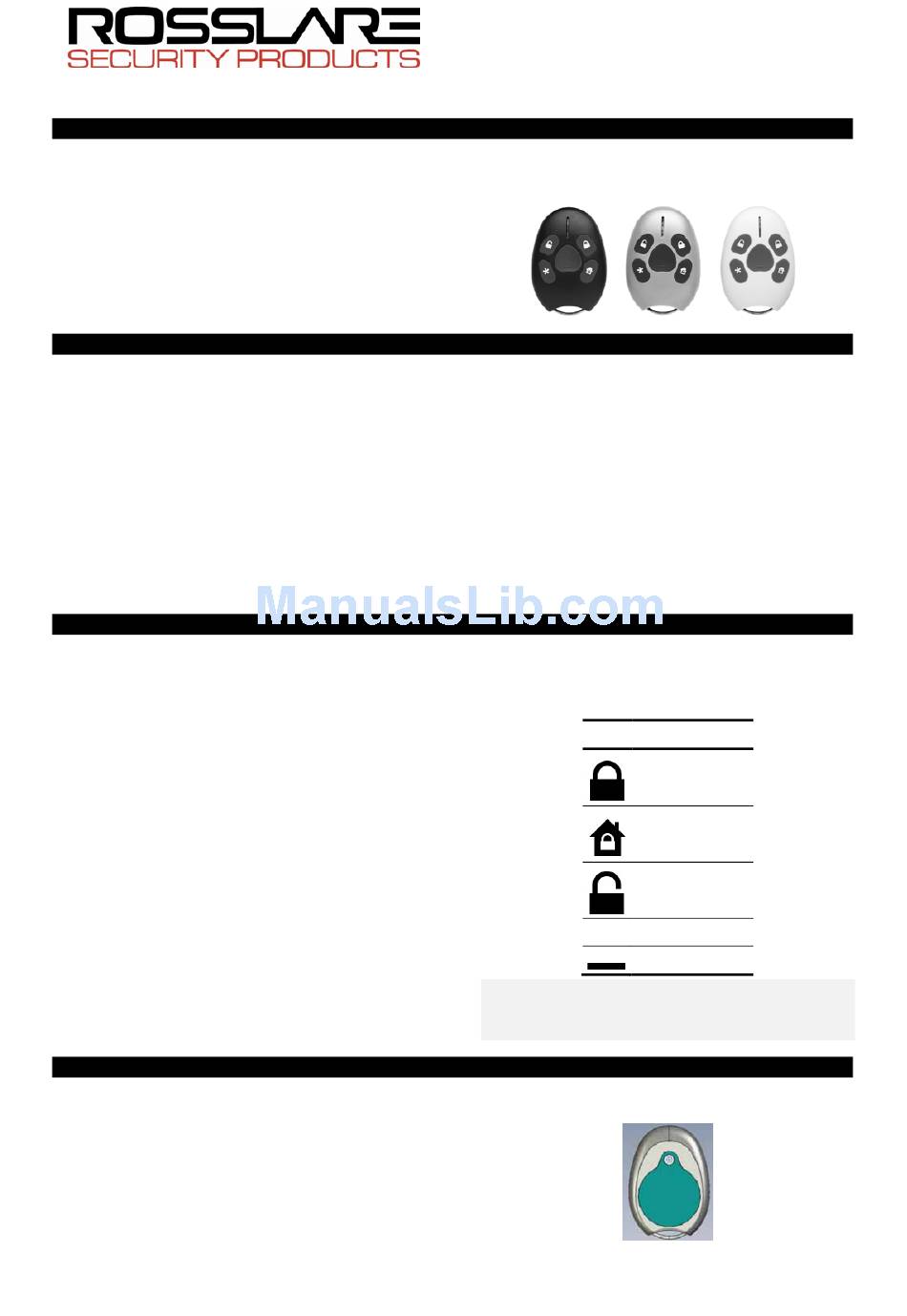

Rosslare SA-33 Installation Instructions

Installation Instructions
1. General Description
The SA-33 is a handheld 5-button remote control that
works with existing wireless panels and expansions.
1.1. Standard Features
Four function buttons: arm away, arm home, disarm,
•
and status
Large, recessed shield-shaped Panic button in the
•
middle of the device
Small, thin, and oval design
•
Handy design – easy to reach all the buttons with one
•
finger
2. Technical Specifications
2.1. Electrical Characteristics
Battery: CR2450
Lifetime: At least three years
Compliance: CE, FCC
Standby Current: <1uA
Transmission Current: 15mA
Transmission Sign: 2 SMD LED
2.2. Environmental Characteristics
Operating Conditions: Indoor & Outdoor, water-resistant
meets IP65
Operating Temperature: -10°C to +60°C (+14°F to +140°F)
Operating Humidity: Up to 95% non-condensing
3. Operating Instructions
The SA-33 remote control is activated by pressing the
buttons on the unit, and transmitting this information to
the receiver panel.
As the SA-33 is a portable, wireless device, system
reception is dependent upon the conditions of use, as
follows.
Caution: AVOID using near or behind large metal
surfaces and multiple concrete/steel walls. This may
interfere or block the wireless signals. Make sure to test
the range from the desired location by using the RF Test
Procedure to ensure reception.
Caution: AVOID placing the SA-33 near strong magnetic
or electrical fields other than the magnet with which it is
intended to be used. Otherwise, performance can be
affected, and false alarms can occur.
Important Note: When the detector range is decreased
as a result of depleted battery power, replace the
battery with the same type of battery immediately.
3.1. Registration
Before using the SA33 transmission information, it should
be directed to the relevant panel. Please refer to the
Panel manual for more information on the registration
process. The device group consist of remotes, and the
information is transferred by pressing one of the keys.
4. Replacing the Battery
To replace the batteries when needed, follow the
procedure below:
1. Use a Phillips head screw driver to loosen the screw
on the battery cover (see Figure 1), located on the
bottom side of the remote control.
2. Replace the battery with the same type of battery,
with the positive (+) side facing up.
3. Close the battery cover, and tighten the screw using
the screw driver.
1
SA-33
Wireless 5-Button Remote Control
Sealed and water-resistant
•
Coin battery with life expectancy of three years
•
Simple battery replacement
•
2.3. RF Characteristics:
RF Frequency:
H - 868.35MHz
G - 433.92MHz
RF Power Output: 6dBm
Range: Up to 80 m in open space
2.4. Physical Characteristics
Dimensions: 57.9 x 41 x 13.8 mm (2.28 x 1.6 x 0.54 inch)
Shape: Oval
Weight: 22 g (0.77 oz) including battery
Colors: Black with black keys
Silver with dark gray keys
White with light gray keys
3.2. Using the Remote Control
The SA-33 has five buttons.
Use the buttons to operate the remote control, as
described in the table below.
Button

CAUTION: Changes or modifications to this equipment not
expressly approved by the party responsible for compliance
(Rosslare Ltd.) could void the user's authority to operate the
equipment.
4. Dispose of the old battery properly; do not incinerate,
heat, disassemble, or recharge.
Figure 1: SA-33 Battery Cover
Description
Arm Away
Arm Home
Disarm
Status
Panic Button
0706-0960345+01
