Summary of Contents for Subli-Trans Xpres SG 3110DNW

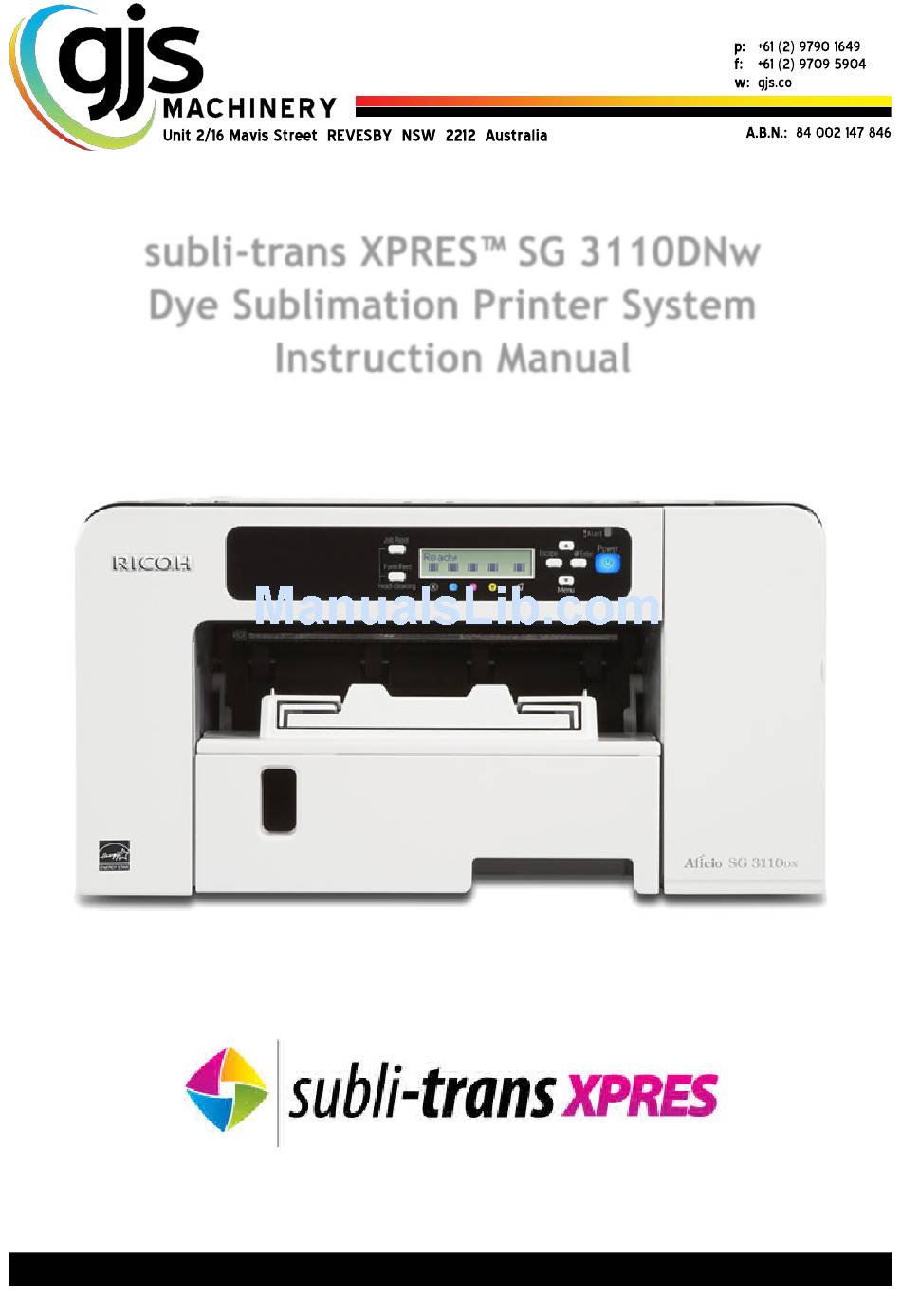

- Page 1 XPRES™ SG 3110DNw Dye Sublimation Printer System Instruction Manual Last Updated: 14 October 2014 Printing Equipment Supplies Training Services...
-
Page 2: Table Of Contents
Cartridge Installation ................................3 Installing the RICOH AficioSG3110DNw RPCS-R Printer Drivers ................... 4 subli-trans Printer Settings ..............................6 Downloading and Installing the Ricoh SG 3110DNw ICC Profile ................... 8 Before You Print ..................................9 General Printer Maintenance ..............................10 Printing With subli-trans ICC Profiles ........................... 11 Photoshop .................................. -
Page 3: Cartridge Installation
MACHINERY subli-trans XPRES™ SG 3110DNw Instruction Manual Cartridge Installation Do not install the Ricoh Inks provided with the printer. Do not power ON the printer before installing the cartridges. Remove the cartridges from their packaging. Open the right front cover on the printer. -
Page 4: Installing The Ricoh Aficiosg3110Dnw Rpcs-R Printer Drivers
MACHINERY subli-trans XPRES™ SG 3110DNw Instruction Manual Installing the RICOH AficioSG3110DNw RPCS-R Printer Drivers 1. Download the latest version of the Ricoh printer driver for your printer from the Ricoh website: www.ricoh.com.au/download-drivers then navigate to Office Printers Select your printer model ... - Page 5 MACHINERY subli-trans XPRES™ SG 3110DNw Instruction Manual 5. Make sure the USB (or network cable) is not connected to the PC (or network) and the printer. Do not turn on the printer yet as displayed in Figure 7. 6. Click ‘Next’ (Figure 7) to start the installation process. When you see Figure 8 connect the USB or network cable and power the printer on.
-
Page 6: Subli-Trans Printer Settings
MACHINERY subli-trans XPRES™ SG 3110DNw Instruction Manual subli-trans Printer Settings 1. Open ‘Devices & Printer’ (‘Printers & Faxes’ on older operating systems). Right click on the ‘RICOH AficioSG3110DNw RPCS-R’ and choose 'Printing Preferences'. 2. On the ‘Detailed Settings’ tab select the ‘Paper’ menu, configure your settings as below in Figure 13. -
Page 7: Figure
MACHINERY subli-trans XPRES™ SG 3110DNw Instruction Manual 5. Click ‘Register Current Settings…’ (Figure 16) and name the preset ‘GJS 3110’ and click ‘OK’ (Figure 17). Figure 17 6. Click ‘Apply’ then ‘OK’ to complete setup. Ensure you always use the Beaver TexPrint-R paper in the Ricoh printer. -
Page 8: Downloading And Installing The Ricoh Sg 3110Dnw Icc Profile
MACHINERY subli-trans XPRES™ SG 3110DNw Instruction Manual Downloading and Installing the Ricoh SG 3110DNw ICC Profile 1. Download the latest version of the ICC profile for your printer from the GJS website: gjs.co/support then navigate to Dye Sublimation – subli-trans Printer ICC Profiles 2. -
Page 9: Before You Print
MACHINERY subli-trans XPRES™ SG 3110DNw Instruction Manual Before You Print Before printing with the SubliJet-R inks perform a nozzle check using the printer driver to ensure you have all colours printing. 1. Navigate to the ‘Printers’ configuration window in your operating system. Right click on ‘RICOH AficioSG3110DNw RPCS-R’... -
Page 10: General Printer Maintenance
MACHINERY subli-trans XPRES™ SG 3110DNw Instruction Manual General Printer Maintenance • It is advisable to always leave your printer turned on when not in use, this will enable the automatic maintenance mode to function which will ensure you printer works flawlessly time after time. -
Page 11: Printing With Subli-Trans Icc Profiles
MACHINERY subli-trans XPRES™ SG 3110DNw Instruction Manual Printing With subli-trans ICC Profiles Important: Please follow the following steps very closely. Missing a step or configuring something incorrectly will create colour problems. Photoshop The following screenshots show Photoshop CC, however, previous versions remain similar. -
Page 12: Figure
MACHINERY subli-trans XPRES™ SG 3110DNw Instruction Manual Printing from Photoshop 1. You will need to mirror the image before printing; from the toolbar, select Image > Image Rotation > Flip Canvas Horizontally 2. When your image is ready to print, select File > Print. -
Page 13: Illustrator
MACHINERY subli-trans XPRES™ SG 3110DNw Instruction Manual Illustrator The following screenshots show Illustrator CC, however, previous versions remain similar. Configuring Application 1. Start Illustrator and open ‘Color Settings’: Edit Color Settings 2. The ‘Color Settings’ window will appear, configure your settings as below in Figure 26. - Page 14 MACHINERY subli-trans XPRES™ SG 3110DNw Instruction Manual Printing from Illustrator 1. You will need to mirror the image before printing; from the toolbar, select Object > Transform > Reflect. Check ‘Vertical’ and click ‘OK’. 2. When your image ready to print, select File > Print 3.
-
Page 15: Coreldraw X5, X6, X7
Set ‘Import and paste Grayscale’ to ‘Convert to document color profile’ 3. Click the save button (Figure 32) and name your settings ‘GJS SG 3110DNw’. Click ‘OK’. Prices shown in $AUD and exclusive of GST and freight. Products are subject to availability. Prices and specifications are subject to change without notice. - Page 16 MACHINERY subli-trans XPRES™ SG 3110DNw Instruction Manual Printing from CorelDRAW 1. When you have your image ready on screen, select File > Print. You will see the print dialogue box as shown below (Figure 33). Set ‘Printer’ to ‘RICOH AficioSG3110DN RPCS-R’ and click ‘Preferences’ (Figure 33).
