Summary of Contents for VSV Aquatic

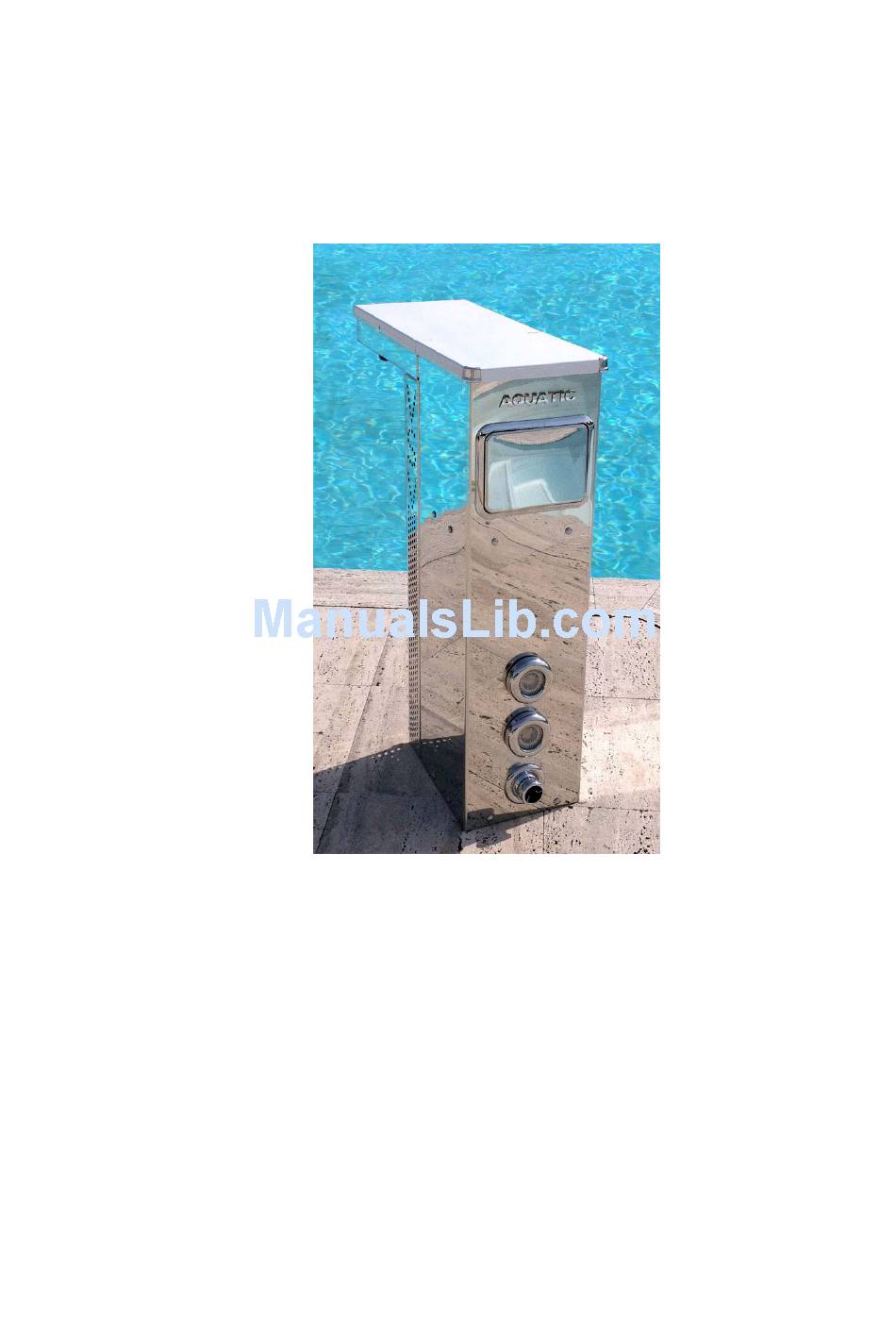

- Page 1 INSTALLATION USER'S GUIDE FILTRATION BLOCKS Aquatic (U) 15 m /hour Equipment of high-alloy steel for cleaning and filtering water in the pool...
- Page 2 www.vsv-group.com...
-
Page 3: Table Of Contents
The general scheme ……………………………………………………………………………………………. AQUATIC without heating ……………………………………………………………………………………. AQUATIC + heat exchanger with electronic thermostat …………………………………………….. AQUATIC + electric heater flow type with a control unit ……………………………………………. 2 - DIMENSIONS OF EQUIPMENT ………………………………………………………………………………... 3 - INSTALLATION AND CONNECTION …………………………………………………………………………. 10-13 Installation of the technical part .………………………………………………………………………….. -
Page 4: Application
APPLICATION Congratulations on the purchase of modern high-quality products. Filtering block Aquatic is designed for cleaning and filtering water in the pools of all types. The combination of efficiency and a more simplified operation will bring you satisfaction. Please carefully read this guide for a secure connection, effective operation and proper maintenance of the product. -
Page 5: Introduction To The Filtration Blocks Aquatic (U)
1 – INTRODUCTION TO THE FILTRATION BLOCKS AQUATIC (U) COMPLETE SET This guide is valid for several models of filtration blocks Aquatic. Therefore, can be some differences in the drawings. The general scheme 15 m /hour The filtering part includes pre-filter basket + cover for connection with water vacuum... -
Page 6: Aquatic Without Heating
AQUATIC without heating BLOCK Aquatic (U) 15 m / hour Total assigned power of 0,47 kW (with spotlights 2х10W): - one-speed pump 0,45kW (50Hz) - performance (capacity) – 15 m /hour - height (H) max. 13,5 m The technical part without heat exchanger / electric heater... -
Page 7: Aquatic + Heat Exchanger With Electronic Thermostat
AQUATIC + heat exchanger with electronic thermostat (for use with boilers) Heat transfer 15 kW min. - 70 kW max. BLOCK Aquatic (U) 15 m / hour + heat exchanger Total assigned power of 0,473 kW (with spotlights 2х10W): - one-speed pump 0,45kW (50Hz) - performance (capacity) –... -
Page 8: Aquatic + Electric Heater Flow Type With A Control Unit
AQUATIC + electric heater flow type with a control unit (capacity 9 kW) BLOCK Aquatic (U) 15 m / hour + electric heater Total assigned power of 0,47kW (with spotlights 2х10W) 9,47kW (with electric heater 9 kW) - one-speed pump 0,45kW (50Hz) -
Page 9: Dimensions Of Equipment
2 - DIMENSIONS OF EQUIPMENT www.vsv-group.com... -
Page 10: Installation And Connection
Place the block on the wall of the pool, as shown below, taking care not to damage the waterproofing coating (liner). If necessary, align it with the water level and fasten the block mounting bolts in a projected place. TOP VIEW POSITION OF THE HOLES FOR FIXING BOLTS www.vsv-group.com... -
Page 11: Installation Of The Technical Part
If your filtration equipment is not connected to ground or incorrectly grounded, there is the risk of corrosion because of the potential difference. The manufacturer cannot be held responsible for any damages arising from absence of grounding or an incorrectly grounding. www.vsv-group.com... -
Page 12: Connecting To Water Supply Network
4.5 Bar, because the device of automatic water adding is designed to pressure 4.5 Bar (max). Adjust the screw after filling the pool. Water must be 1 cm lower of the upper edge of skimmer (see pict.). www.vsv-group.com... -
Page 13: Compound Filtration Compartment With The Technical Part
Create a slope pipelines to avoid raising the water level inside the technical part. WARNING! Follow the connection so that water from other drainage systems does not leak to drainage system of filtration unit. www.vsv-group.com... -
Page 14: Safety And Warnings
Filtration equipment is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the equipment. www.vsv-group.com... -
Page 15: Electrical Connections
5 – ELECTRICAL CONNECTIONS Electrical control panel www.vsv-group.com... -
Page 16: Wiring Diagram Of The Electrical Control Panel
Connection of power supplies is made to the upper terminals of the differential switch, observing polarity. Power supply cable for pump and transformer of spotlight is connected to terminals according marking on the cable wires and according to the attached scheme. www.vsv-group.com... -
Page 17: Connecting Boxes
CONNECTING BOXES of the filtration blocks Aquatic (U) Enter the power supply cable for pump and transformer of spotlight in the technical part through O-ring. Tighten the nut of seal to avoid getting water into the technical part. Enter the cable into the connection box and connect the wires according to the scheme. -
Page 18: Electrical Wiring Diagram Of Heat Exchanger
Connecting box with electric heater ELECTRICAL WIRING DIAGRAM of HEAT EXCHANGER Connect the filtration unit with electrical control panel according to this scheme. electric control panel thermal protection of filtration unit switch switch heat exchanger circulation pump phase (from electronic thermostat) electromagnetic valve www.vsv-group.com... -
Page 19: Hydraulic Wiring Diagram Of Heat Exchanger
Choose the circulation pump of necessary capacity according table below. Table of circulation pumps for heat exchanger Capacity of the circulating Power of the circulating pump pump 0,72 m 15 kW 1,44 m 29 kW 2,16 m 44 kW 2,88 m 59 kW www.vsv-group.com... -
Page 20: Wiring Diagram Of Electric Heater
Brown cable 2x1,0mm to heater Blue Yellow-green cable 4x2,5mm to heater cable 4x6mm to electric heater electrical control panel 3 phase fuse cable 1 phase fuse cable 6 kW 4x2,5mm 6 kW 3x6mm 9 kW 4x4mm 12 kW 4x6mm www.vsv-group.com... -
Page 21: Putting Into Operation
To set filtration time, it is necessary carefully to pull out the segments. One segment corresponds to 30 minutes. To set timer’s clock, it is necessary to rotate dial face clockwise until a set time. It is forbidden to rotate a dial face counter-clockwise, it can damage it. www.vsv-group.com... -
Page 22: Filtration Membrane
Do not operate the filtration unit without filtration membrane as it can break the motor. In filtration blocks Aquatic water is sucked through the skimmer and cleaned through the filter membrane, then clean water flows back into the pool through a nozzle. Before the filtration membranes installed pre-filter basket designed to remove the largest size impurities, for example leaves. -
Page 23: Vacuum Cleaner Connection And Operation
Insert a spotlight on the place of braces in the grooves, and then rotate in clockwise direction to lock it in place on the front of the filter. ATTENTION! Spotlight works only with transformer 230 / (2х12V, 10VA). www.vsv-group.com... -
Page 24: Disinfection Of System
- irritations of the eyes and mucous membranes - damage to the pool liner A high pH gives: - poorer chlorine disinfection - skin irritation - lime precipitation - cloudiness The guideline pH figure is 7.2 – 7.6 . www.vsv-group.com... -
Page 25: Care Product
The water vacuum cleaner does not Mouthpiece of vacuum cleaning hose from the cup, connect collect a dirt from a bottom of pool hose is badly connected with hose hermetically mouthpiece of hose (filtration membranes are clean) with vacuum-cleaning hose. www.vsv-group.com... -
Page 26: Maintenance Of Equipment In The Winter
This manual does not give you any license or other legal rights to the use of the above without the express written permission of VSV Aqua Group. CE declaration of conformity is issued in compliance with the 89/336/EEC rule of electromagnetic compatibility and with 73/23/EEC rule of safety requirements for electric equipment.
