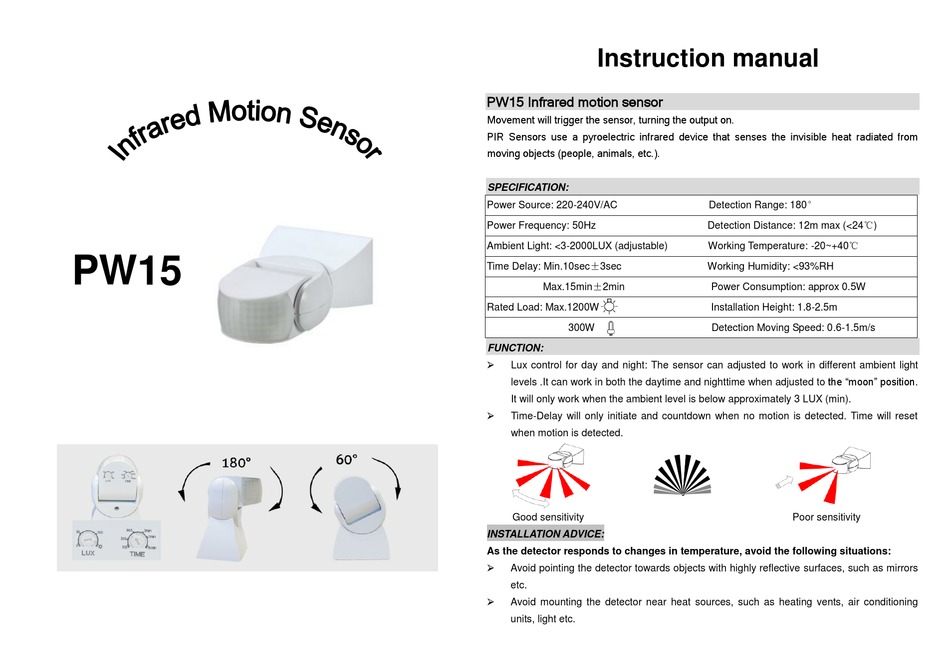

PW15 Infrared motion sensor
Movement will trigger the sensor, turning the output on.
PIR Sensors use a pyroelectric infrared device that senses the invisible heat radiated from
moving objects (people, animals, etc.).
SPECIFICATION:
Power Source: 220-240V/AC
Power Frequency: 50Hz
Ambient Light: <3-2000LUX (adjustable)
Time Delay: Min.10sec±3sec
Max.15min±2min
Rated Load: Max.1200W
300W
FUNCTION:

Lux control for day and night: The sensor can adjusted to work in different ambient light
levels .It can work in both the daytime and nighttime when adjusted to the "moon" position.
It will only work when the ambient level is below approximately 3 LUX (min).

Time-Delay will only initiate and countdown when no motion is detected. Time will reset
when motion is detected.
Good sensitivity
INSTALLATION ADVICE:
As the detector responds to changes in temperature, avoid the following situations:

Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors
etc.

Avoid mounting the detector near heat sources, such as heating vents, air conditioning
units, light etc.
Detection Range: 180°
Detection Distance: 12m max (<24℃)
Working Temperature: -20~+40℃
Working Humidity: <93%RH
Power Consumption: approx 0.5W
Installation Height: 1.8-2.5m
Detection Moving Speed: 0.6-1.5m/s
Poor sensitivity
