Manual

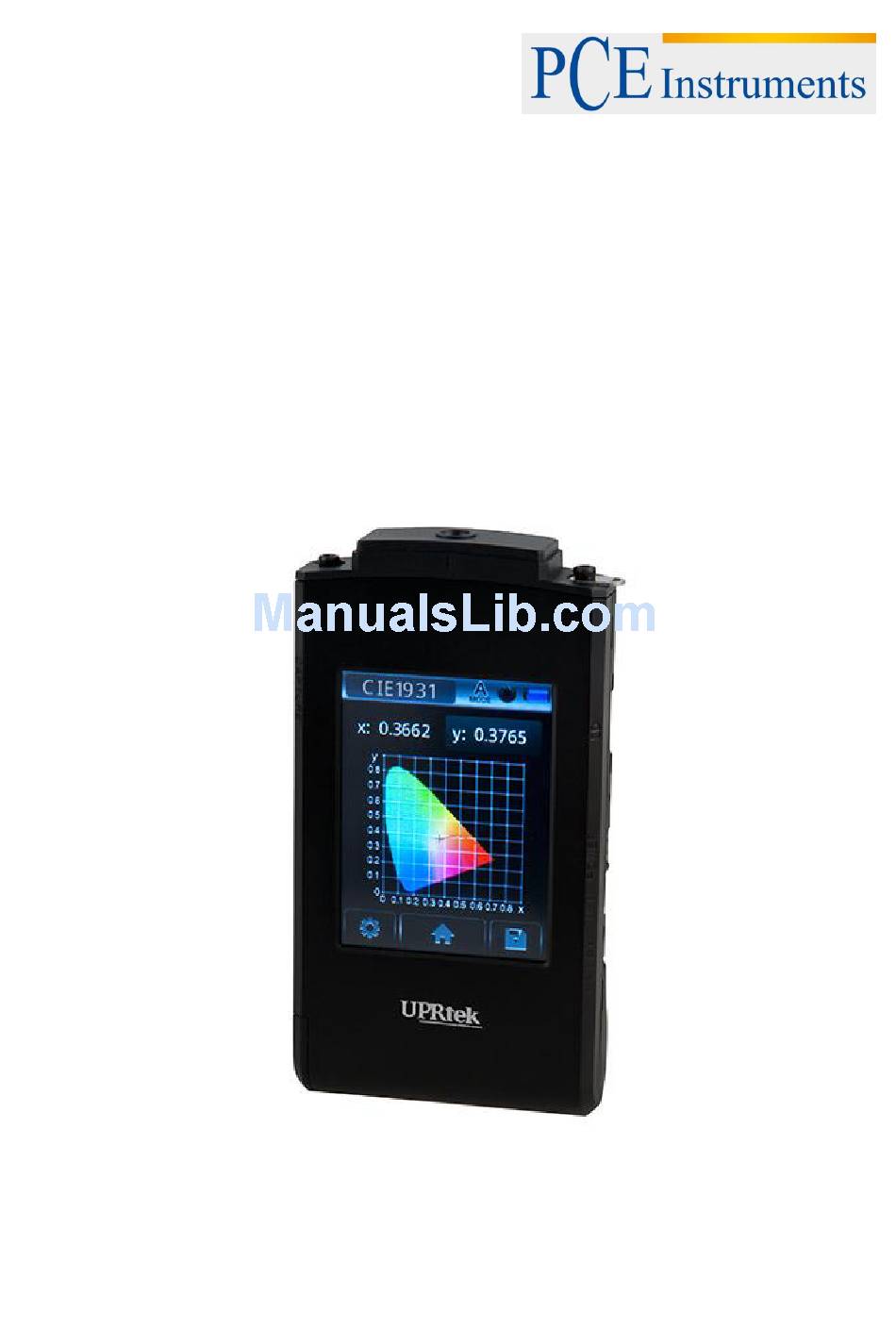

Color Meter MK350N Plus
Version 1.0
Date of creation: 23.07.2015
Date of last change: 25.08.2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for PCE Instruments MK350N Plus
- Page 1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@pce-instruments.com www.pce-instruments.com/english www.pce-instruments.com Manual Color Meter MK350N Plus Version 1.0 Date of creation: 23.07.2015 Date of last change: 25.08.2015...
-
Page 2: Table Of Contents
Measurement Modes Introduction .................... 15 Continuous Measurement Introduction ..................20 Customizing BASIC Mode List ....................21 BROWSER Mode Introduction ....................22 PC Connection ......................... 23 Specification ......................24 Product Specification ........................ 24 Contact ........................26 PCE Instruments UK ........................ 26 PCE Americas .......................... 26... -
Page 3: Introduction
Manual Introduction Packing Contens Please check MK350N PLUS packing before use, contact your agent if there are missing items. -
Page 4: Appearance Introduction
Manual Appearance Introduction Product Features 1. 250 g only, light and easy to carry everywhere. 2. Measure at any time, high mobility. 3. 3.5” colour touch screen, simple interface, easy to use. 4. SD card storage, easy to transfer data. 5. -
Page 5: Annual Product Calibration
Product Notes and Precautions 1. The MK350N PLUS LED Meter contains sensitive components. Please unpack with care, as any trauma to the unit may damage the equipment. Contact your agent if the unit appears not to be operating normally. -
Page 6: Preparing Before Use
3. Please purchase a new battery if it gets low easily after being fully charged, which means battery life comes to an end. 4. Usage time will depend on battery life, MK350N PLUS battery can operate 5 hours after being fully charged. - Page 7 2. Power Off Status: Users can check power key, it will light in red while charging and light off after being fully charged 3. Power On Status: Users can check MK350N PLUS screen, it will appear a lightning symbol to indicate charging, and a lightning symbol will disappear after being fully charged.
-
Page 8: Memory Card Installation
Manual Memory Card Installation Installing the SD card: Remove the SD card: Note: 1. Check SD card status, refer “2.7 storage”. 2. Check SD card storage method, refer “3.2 Save Measured Data”... -
Page 9: Strap And Neck Strap Installation
Manual Strap and Neck Strap Installation Strap installation: 1. Unscrew the strap 2. Tie the strap to the strap hole of MK350N PLUS 3. Tie the strap to the sensor cover 4. Screw the strap Neck strap installation Tie on the strap hole of MK350N PLUS... -
Page 10: Screen Wiper Usage Method
Manual Screen Wiper Usage Method 1. The wiper can remove the dirt easily. 2. Strong absorbent and no effect after repeated washing. 3. Can use bleach for wash but do not iron the wiper. Power On / Off Turn on the power: Press the power key for 1 second. Turn off the power: Press the power key for 5 seconds. -
Page 11: Dark Calibration
Dark Calibration 1. After turning on MK350N PLUS, system will process dark calibration automatically. Note: Suggest to execute dark calibration every time when turning on MK350N PLUS. 2. When using MK350N PLUS, users can execute dark calibration manually. Users can go to measurement page, then select MEASUREMENT SETTING DARK... -
Page 12: Option Function Setting
Manual Option Function Setting Go to main menu and select OPTION to start system setting. - Page 13 Manual Note: 1. Pease set up date and time before saving the files. 2. Users can set up auto power-off time to saving battery power. Default auto power-off setting is 10 minutes.
-
Page 14: System Reset
Manual System Reset Users can press the reset key to turn off the system if system crashes. -
Page 15: System Overview
Manual System overview Measurement Modes Introduction 4 kinds of measurement modes:... - Page 16 Manual Interface Introduction: 1. Measurement mode – BASIC / SPECTRUM / CIE1931 / CIE1976 2. Integration mode - Auto / Manual 3. Capture function – One time / Continuous 4. Battery capacity 5. Measurement result 6. Measurement setting 7. Back to main menu 8.
- Page 17 Manual 1. Point sensor head at light source with suggest angle 30°. 2. At appropriate distance, then press capture key. 3. After beep sound, measured data will be displayed on the screen. Note: Operation sound setting, refer “3.3 Operation sound”...
- Page 18 Manual Save measured data: Note: 1. Save format setting, refer “3.3 Save format” 2. Available capacity of SD card, refer “2.7 Storage”...
- Page 19 Manual Please go to measurement page to do measurement settings.
-
Page 20: Continuous Measurement Introduction
Manual Continuous Measurement Introduction Note: 1. Continuous measurement has no beep sound after press capture key. 2. Users cannot save the measurement data while processing continuous measurement. 3. Adjust the integration time is only allowed in the manual mode. -
Page 21: Customizing Basic Mode List
Manual Customizing BASIC Mode List 1. Tap the box of measuring unit 2. Select an item from the list 3. The new data item will be displayed... -
Page 22: Browser Mode Introduction
Manual BROWSER Mode Introduction The Browser (on Home Screen) allows you to review historical data that was previously saved to the SD card. 1. Press the “BROWSER” icon. 2. A file browser will now show the files on the SD card. If you select an excel file, a review menu will be displayed. -
Page 23: Pc Connection
Manual PC Connection You can attach a Windows based PC directly to the MK350N PLUS using the enclosed USB cable. This allows your PC to use Windows Explorer to view data or transfer data that was saved onto the MK350N PLUS SD Card (Excel files or JPG files). -
Page 24: Specification
Manual Specification Product Specification Sensor CMOS linear image sensor Spectral Bandwidth Approx. 12 nm (half bandwidth) Receptor Size Ø 6.6 ± 0.1 mm Cosine Correction Refer Figure 1. 70 … 70000 lux Measurement Range 380 … 780 nm Wavelength Range 6 …... - Page 25 Manual Data Output Interface SD Card (SD2.0, SDHC / above 1GB, up to 32GB) / USB 2.0 Data Format Compatible Excel / JPG data format Dimensions 144.2 x 78 x 24 mm (H x W x D) Weight (with Battery) 250 g ±...
-
Page 26: Contact
Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments. PCE Instruments UK By post: PCE Instruments UK Ltd. Units 12/13 Southpoint Business Park Ensign Way, Southampton Hampshire United Kingdom, SO31 4RF...
