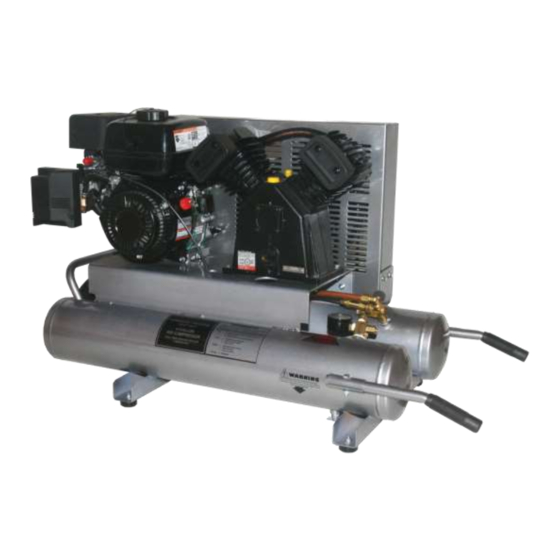

AC2T & AC2T-ES
INDUSTRIAL GAS AIR COMPRESSOR
INDUSTRIAL GASOLINE AIR COMPRESSOR
8/9/2015
OPERATOR'S MANUAL
IT IS EXTREMELY IMPORTANT TO READ AND UNDERSTAND THE ENTIRE
CONTENTS OF THIS OPERATOR'S MANUAL BEFORE ATTEMPTING TO
OPERATE THE PRODUCT. THIS EQUIPMENT IS POTENTIALLY
HAZARDOUS AND COULD CAUSE PHYSICAL INJURY OR EVEN
DEATH IF IMPROPERLY USED.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC2T and is the answer not in the manual?

Questions and answers

Summary of Contents for American Fab AC2T

  • Page 1 AC2T & AC2T-ES INDUSTRIAL GAS AIR COMPRESSOR INDUSTRIAL GASOLINE AIR COMPRESSOR OPERATOR’S MANUAL IT IS EXTREMELY IMPORTANT TO READ AND UNDERSTAND THE ENTIRE CONTENTS OF THIS OPERATOR’S MANUAL BEFORE ATTEMPTING TO OPERATE THE PRODUCT. THIS EQUIPMENT IS POTENTIALLY HAZARDOUS AND COULD CAUSE PHYSICAL INJURY OR EVEN DEATH IF IMPROPERLY USED.
  • Page 2 Never attempt to repair a damaged tank. Any modification on a tank such as welding or drilling will weaken the tank - which may result in rupture or explosion. Only replace worn or damaged tanks! American Fab Inc. Travelers Rest, SC Page 2...

  • Page 3: Important Safety Information

    FOLLOW ALL INSTRUCTIONS PROVIDED WITHIN THIS MANUAL. THIS EQUIPMENT CAN CAUSE SERIOUS INJURY TO PEOPLE AND ANIMALS AND SEVERE DAMAGE TO PROPERTY IF OPERATED NEGLIGENTLY OR INCORRECTLY. PAY PARTICULAR ATTENTION TO ALL SAFETY INSTRUCTIONS, WARNINGS AND NOTICES. Page 2 AMERICAN FAB INC TRAVELERS REST, SC...

  • Page 4: Maintenance Schedule

    Replace Air Filter Change Oil Drain condensate Ensure belt guards and covers are securely in place. THE COMPRESSOR PUMP REQUIRES 32oz (SAE30) OIL MINIMUM DISTANCE FOR CLEARANCE IS 3 FEET FOR ALL COMBUSTIBLE MATERIAL Page 3 AMERICAN FAB INC TRAVELERS REST, SC...

  • Page 5: Understanding Your Unit

     Move choke to the “open” or run position.  Close the unloader valve as shown in figure 7 position.  Move choke to the “open” or run position.  Close the unloader valve as shown in figure 7 Page 4 AMERICAN FAB INC TRAVELERS REST, SC...
  • Page 6 Figure 4 ONLY on electric start models Figure 3 Figure 5 Figure 6 Decrease RPM Increase RPM Figure 7 Figure 8 Unloader in the closed Unloader in the open (operational) position. (starting) position Page 5 AMERICAN FAB INC TRAVELERS REST, SC...
  • Page 7 ONLY on electric start models BATTERY LOCATION IS BETWEEN THE TANKS. BATTERY TYPE: 12 Volt DC 12AH/20HR Page 6 AMERICAN FAB INC TRAVELERS REST, SC...
  • Page 8  Rotate key or ignition switch counterclockwise to the off position.  Rotate the fuel valve to the closed position for storage, maintenance or transportation.  Disconnect battery for storage or maintenance. Page 7 AMERICAN FAB INC TRAVELERS REST, SC...
  • Page 9 If using a NEW plug, once the plug seats by hand, tighten the plug 1/2 rotation with a wrench to compress the washer.  If reusing the old plug, once the plug seats by hand tighten the plug 1/8-1/4 rotation with a wrench to compress the washer. Page 8 AMERICAN FAB INC TRAVELERS REST, SC...
  • Page 10 REMOVE PRESSURE FROM THE TANK IMMEDIATELY AND REPLACE THE TANK IF A  STORE IN A COOL, DRY PLACE. CRACK IS DETECTED.  NEVER EVER ATTEMPT TO REPAIR OR MODIFY A TANK! Page 9 AMERICAN FAB INC TRAVELERS REST, SC...

  • Page 11: Troubleshooting

    3.) Debris in carburetor 3.) Have carburetor cleaned by 4.) Possible faulty ignition service dealer system or spark plug 4.) Check spark plug for spark 5.) Fault in engine 5.) Contact customer service at 1-800-845-4141 Page AMERICAN FAB INC TRAVELERS REST, SC...
  • Page 12 1.) Check oil level in engine and 2.) Engine shuts down when pump. (use SAE 30 oil in tank pressure reaches pump and engine) maximum capacity 2.) Throttle control needs to be adjusted to higher RPM. Page AMERICAN FAB INC TRAVELERS REST, SC...

  • Page 13: Warranty

    WARRANTY American Fab equipment is warranted to be free from defects in material and workmanship for a period of ONE year after date of purchase; the engine is warranted for TWO years. SPECIFICATIONS Equipment Type Industrial Gasoline Fuel 86 octane or higher, 10% ethanol maximum...
